Quick Details
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REALGOLD
-
Year:
-
2022
-
Voltage:
-
3P 380V 50HZ
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
3 kw
-
After-sales Service Provided:
-
Video Support
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
500
-
Ejector Force (kN):
-
280
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
REALGOLD
-
Year:
-
2022
-
Voltage:
-
3P 380V 50HZ
-
Weight (T):
-
3 T
-
Motor Power (kw):
-
3 kw
-
After-sales Service Provided:
-
Video Support
Characteristic:

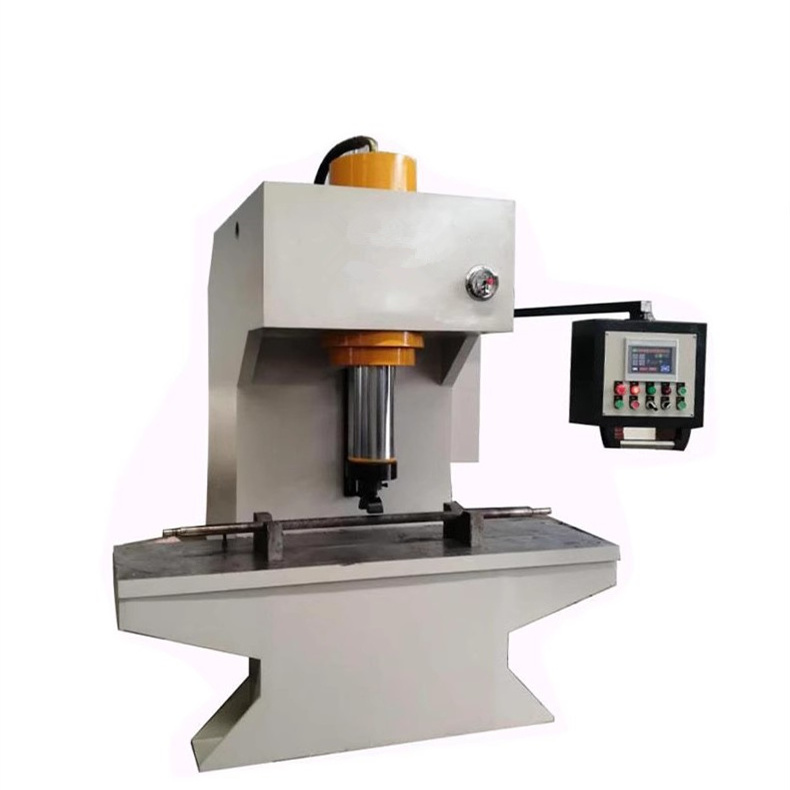

YQ41 series capacity 63 ton 100t c-frame hydraulic press can be customized according to customer demand for different tonnage of different tonnage machines.
Working pressure, pressing speed, stroke can be in accordance with the process needs within the specified parameters within the adjustment. YQ41 series capacity 63 ton 100t c-frame hydraulic press with independent power mechanism and electrical system, and the use of button centralized control, can achieve manual, semi-automatic, automatic three modes of operation, but also YQ41 series capacity 63 ton 100t c-frame hydraulic press to achieve constant pressure and the two ways to suppress,the fuselage for the C-type single-column structure, the use of all-steel CO2 welding, welding after tempering aging treatment to ensure that the body never deformation. YQ41 series capacity 63 ton 100t c-frame hydraulic press ,hydraulic system is located in the fuselage,beautiful appearance, easy to operate, can widen the scope of work, the use of three-dimensional space extended hydraulic cylinder stroke (optional).
|
Specification |
YQ41-20 |
YQ41-40 |
YQ41-63 |
YQ41-100 |
|
Nominal force |
200 |
400 |
630 |
1000 |
|
Effective stroke |
260 |
260 |
280 |
320 |
|
Max. Opening height |
600 |
600 |
700 |
700 |
|
Throat depth |
200 |
220 |
240 |
280 |
|
The slide block descending speed |
16 |
19 |
13 |
10 |
|
The slide block return speed |
19 |
25 |
17 |
13 |
|
Worktable effective area (Left and right) |
500 |
500 |
600 |
700 |
|
Worktable effective area (front and back ) |
400 |
400 |
450 |
500 |
|
Blanking hole diameter |
80 |
100 |
120 |
200 |
|
Machine size |
980*630*1670 |
1080*650*1800 |
1180*700*2020 |
1380*800*2120 |
|
Motor power |
3 |
3 |
5.5 |
5.5 |
|
Net weight (kg) |
1300 |
1500 |
1700 |
2200 |
