Quick Details
-
Power:
-
133kw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sinoway
-
Maximum Digging Height:
-
10980mm
-
Maximum Digging Depth:
-
6940mm
-
Machine Weight:
-
40000 kg
-
Max Digging Radius:
-
10290mm
-
Rated Speed:
-
5.4km/h
-
Transmission:
-
Hydrostatic
-
Buckat capacity:
-
1.1 m3
-
Chains number:
-
Three
-
Color:
-
Yellow
-
Overall dimension:
-
12100*6000*3900 mm
-
Shipping:
-
By Bulk vessel or Ro-Ro
-
Track Cleat:
-
Bolted
-
Brand:
-
SINOWAY
-
Model:
-
SWEA260
Quick Details
-
Operating Weight:
-
40 ton
-
Bucket capacity:
-
1.1 m3
-
Engine Brand:
-
Cummins
-
Power:
-
133kw
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sinoway
-
Maximum Digging Height:
-
10980mm
-
Maximum Digging Depth:
-
6940mm
-
Machine Weight:
-
40000 kg
-
Max Digging Radius:
-
10290mm
-
Rated Speed:
-
5.4km/h
-
Transmission:
-
Hydrostatic
-
Buckat capacity:
-
1.1 m3
-
Chains number:
-
Three
-
Color:
-
Yellow
-
Overall dimension:
-
12100*6000*3900 mm
-
Shipping:
-
By Bulk vessel or Ro-Ro
-
Track Cleat:
-
Bolted
-
Brand:
-
SINOWAY
-
Model:
-
SWEA260
Product Description

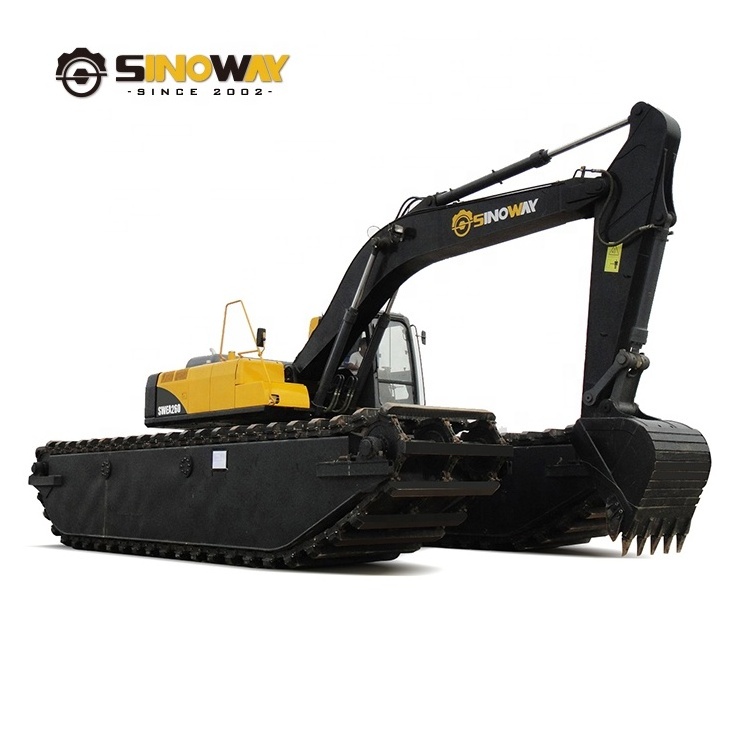

Sinoway SWEA220 is a medium scale amphibious excavator, which is enjoying heavies demand in the global market, especially Weast Africa and South America.
Fitted with Isuzu, Cummins or Doosan engines are available with us. The engines produce bigger output and torque, and far better fuel consumption. Sinoway insist on using a mechanical injection engine as we understand that our amphibious excavators must be able to take poor grade fuel.
Features for Sinoway Hydraulic Undercarriage:
The hydraulic undercarriage pontoons are extremely important to an amphibious excavator, Sinoway is pride of his abundant experience on manufacturing pontoons that last. According to your application requirement and working conditions, we are able to design and produce an amphibious excavator specially for your working area covering swamps, salty land, off-shore, river area and so forth.
High grade steel material for Pontoons
Sinoway pontoons are standard made with high grade steel sheets, which is with high tensile strength and good corrosion resistant.
For special applications like off-shore or salty areas, full weathering steel pontoons are also available as optional. For those applications require extra anti-corrosion, Sinoway offer pontoons with marine grade ship plate steel.
Sinoway pontoons are standard made with high grade steel sheets, which is with high tensile strength and good corrosion resistant.
For special applications like off-shore or salty areas, full weathering steel pontoons are also available as optional. For those applications require extra anti-corrosion, Sinoway offer pontoons with marine grade ship plate steel.
Wear-proof Steel Track Cleats
Heavy duty marsh buggy track chains are constructed with high strength tensile steel, the bushings and pins are stronger, each pontoon comes with two or three heavy duty track chains, track cleats are fixed on the chain
pitch welded or bolted. The hardened track chain rollers run in pontoon channels with a strip of wear resistant steel. The drive and idler sprockets are flame hardened to match the hardness of the track chain rollers.
Heavy duty marsh buggy track chains are constructed with high strength tensile steel, the bushings and pins are stronger, each pontoon comes with two or three heavy duty track chains, track cleats are fixed on the chain
pitch welded or bolted. The hardened track chain rollers run in pontoon channels with a strip of wear resistant steel. The drive and idler sprockets are flame hardened to match the hardness of the track chain rollers.
Machine Show
Product Paramenters
|
Engine
|
|
|
Model
|
Cummins /Isuzu
|
|
Type
|
Six-cylinder,water-cooled turbocharged,mechanical injection
|
|
Rated power
|
133KW
|
|
Rated speed
|
2100rpm
|
|
Main Technical Specification
|
|
|
Operating weight
|
42000Kg
|
|
Standard bucket capacity
|
1.1m3
|
|
Slewing speed 11rpm
|
11rpm
|
|
Stick digging force
|
110KN
|
|
Bucket digging force
|
150KN
|
|
Main Features
|
|
|
Tracked pontoon structure
|
|
|
Big torque travelling device
|
|
|
Big circular arc structure
|
|
|
High capacity of fuel tank
|
|
|
Main Applications
|
|
|
River/Beach earth moving
|
|
|
Swamp works
|
|
|
Dredging applications
|
|
|
Delta works
|
|
|
Waterway deepening
|
|
|
Hydraulic System
|
|
|
Main pump
|
KAWASAKI
|
|
Main valve
|
KAWASAKI
|
|
Motor
|
KAWASAKI
|
|
Hydraulic flow rate
|
2x235L/min
|
|
Hydraulic pressure
|
32MPa
|
|
Travelling System
|
|
|
Travelling speed
|
0~5.4km/h
|
|
Grade ability
|
65%
|
|
Ground pressure
|
0.0135MPa
|
|
No. of chains
|
3
|
|
Dimensions
|
|
|
Overall length
|
12100mm
|
|
Overall width
|
6000mm
|
|
Overall height
|
3900mm
|
|
Ground clearance
|
1192mm
|
|
Length of pontoon
|
10200mm
|
|
Width of pontoon
|
1760mm
|
|
Height of pontoon
|
1700mm
|
|
Operating Scope
|
|
|
Stick length
|
3000mm
|
|
A: Max. cutting height
|
10980mm
|
|
B: Max. dumping height
|
8140mm
|
|
C: Max. digging depth
|
6940mm
|
|
D: Max. reach
|
10290mm
|
|
|
|
