Quick Details
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Power Supply:
-
200~250VAC 50/60Hz
-
Output:
-
Voltage Output SPST
-
Interval:
-
1 Mins
-
Batteries:
-
1.2V/40mAh Inside
-
Dustproof Cover:
-
Yes
-
Installation:
-
Panel or Screw
-
Certifications:
-
CE RoHS EMC LVD
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Power Supply:
-
200~250VAC 50/60Hz
-
Output:
-
Voltage Output SPST
-
Interval:
-
1 Mins
-
Batteries:
-
1.2V/40mAh Inside
-
Dustproof Cover:
-
Yes
-
Installation:
-
Panel or Screw
-
Certifications:
-
CE RoHS EMC LVD

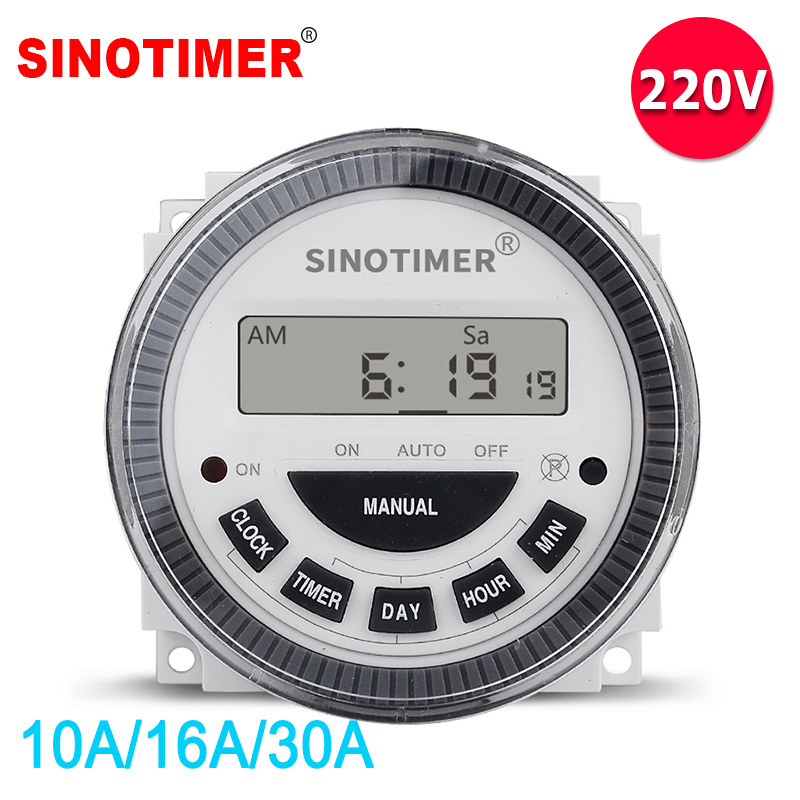

New type SINOTIMER Switch Automatic Programmable AC TIMER SWITCH
Multipurpose TM619 Digital Timer Switch with Waterproof Cover can automatically switch on and switch off various kinds of electric equipment at a preset time before a week and can work cyclically per week or day (from one mnute to 168hours) according to the preset programs
Application:
- streetlight
- neon light (sign)
- lamp
- water heater
- air conditioner
- billboard
- electric cooker
- booster, sprayer
- bottler
- preheater
- pool
- gate
- sprinkler
- agriculture facilities
- broadcasting equipment
Characteristics:
* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
* 16 ON/OFF programs per day, 15 combinations to a week.
* 24 hours / 7 days a week programmable.
* Built-in battery for backup the memory (save the programs you set) when power failure
* Repeat programs with 18 on/off settings, and setting on/off manually
* Easy to read LCD display, LED indicators
* Admissible ambient temperature: -10 C to 55 C
* Square housing & slide bracket available as option
* Form C output, NO, NC, Common, 1/4 Quick Connect
* Contact rating: Resistive 16A, Inductive 8A, Motor 1/2HP
Specification:
| Muliti Input Voltage | 12V DC/AC, 24VDC/AC, AC110V, AC240V |
| Output | 16amp, SPST @ 250Vac, volt output. |
| Installation | pannel mounted. |
| Usage | 7 Days 24hrs Programmable |
| Programs | 16 ON/OFF per Day |
| Programming Combinations | 15 Groups |
| Power Supply | 200~250VAC 50/60Hz |
| Load | 30A |
| Battery for Saving Programs |
1.2V/40mAh Inside |
| Output | Voltage Output SPST |
| Certificates | CE RoHS EMC LVD |
| Dimensions | 60*60*37.5 mm |
| Cover | Dustproof |
| 12/24 hours format | Yes |
Package infos:
unit weight:0.13kgs
packing: 100pcs/ctns, 13kgs (GW)
dimensions:42*29*32cm
