Quick Details
-
Power:
-
1400, 1400W
-
Dimension(L*W*H):
-
Main : 440x320x450mm , Bath: 300x300x240mm
-
Weight:
-
15 KG
-
Type:
-
Vertical,Horizontal
-
Motor Type:
-
Brushless DC motor
-
Speed Range:
-
20-280rpm , 20-200rpm
-
Display:
-
LED,LCD
-
Heating Temperature Range:
-
Room temp. to 180℃
-
Stroke Displacement:
-
automatic 150mm , Manual 110mm + auxiliary100mm
-
Time Setting Range:
-
1-999min,1~999s
-
Permissible Ambient Temperature:
-
5-40℃
-
Permissible Relative Humidity:
-
80%RH
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AELAB
-
Voltage:
-
100-120/200-240V 50/60Hz
-
Power:
-
1400, 1400W
-
Dimension(L*W*H):
-
Main : 440x320x450mm , Bath: 300x300x240mm
-
Weight:
-
15 KG
-
Type:
-
Vertical,Horizontal
-
Motor Type:
-
Brushless DC motor
-
Speed Range:
-
20-280rpm , 20-200rpm
-
Display:
-
LED,LCD
-
Heating Temperature Range:
-
Room temp. to 180℃
-
Stroke Displacement:
-
automatic 150mm , Manual 110mm + auxiliary100mm
-
Time Setting Range:
-
1-999min,1~999s
-
Permissible Ambient Temperature:
-
5-40℃
-
Permissible Relative Humidity:
-
80%RH
Product Description

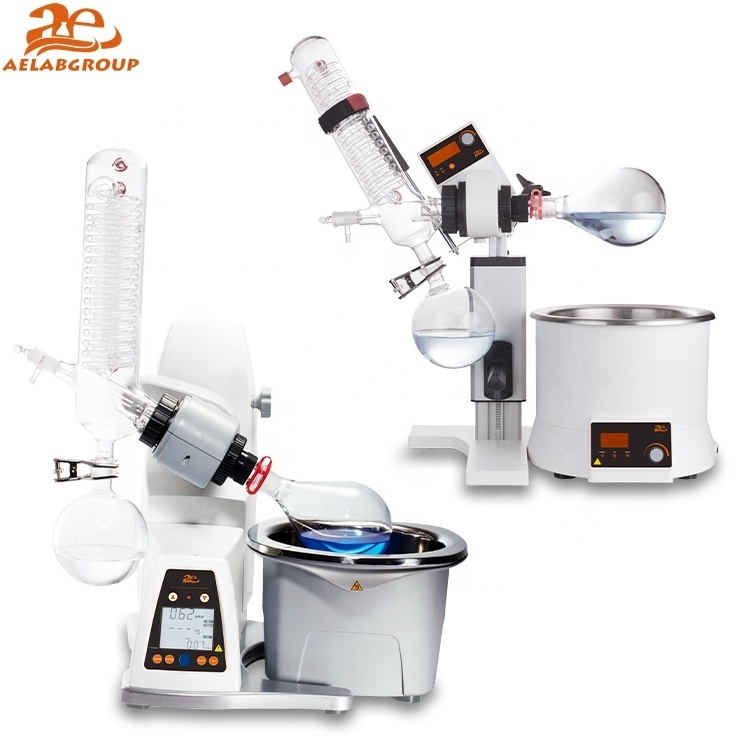

Rotary Evaporator
AE-RE2 , AE-RE2H
AE-RE2S
Glass Vessel
Vertical
Diagonal
Evaporating Flask
50 mL - 2000 mL
Receiving Flask
100 mL - 2000 mL
Foam Brake
250 mL
Vapor Tube
Distilling Flask
Connector
Distillation System Combination
Pump
MZ-1C
C410
Circulator
(CCP-Series)
Vacuum Control
Features & Specification
Difference
AE-RE2 , AE-RE2H
Speed 20-280 Rpm
LCD
Automatic Lifting
AE-RE2S
Speed 20-200 Rpm
LED
Manual Lifting With Auxiliary Lift
Technical Specifications:
|
Specifications
|
AE-RE2
|
AE-RE2-H
|
AE-RE2S
|
||
|
Type
|
Vertical
|
Horizontal
|
Vertical
|
||
|
Motor Type
|
Brushless DC motor
|
|
|
||
|
Speed Range
|
20-280rpm
|
|
20-200rpm
|
||
|
Display
|
LCD (speed,temperature,time)
|
|
LED (speed, temperature, time)
|
||
|
Clockwise and Anti-clockwise
|
Yes
|
|
Yes
|
||
|
Heating Temperature Range
|
Room temp. to 180℃
|
|
Room temp. to 180℃
|
||
|
Control Accuracy
|
water: ±1℃,oil: ±3℃
|
|
water: ±1℃ oil: ±3℃
|
||
|
Heating Power
|
1300W
|
|
1200 W
|
||
|
Stroke Displacement
|
automatic 150mm
|
|
Manual 110mm + auxiliary100mm
|
||
|
Timer
|
Yes
|
|
Yes
|
||
|
Time Setting Range
|
1-999min
|
|
1~999s
|
||
|
Dimension[D×W×H]
|
465×457×583mm
|
|
Main Unit: 440×320×450mm
Heating Bath: 300x300x240mm
|
||
|
Weight
|
15kg
|
|
Main Unit: 7kg Heating Bath: 3kg
|
||
|
Permissible Ambient Temperature
|
5-40℃
|
|
5~40 ℃
|
||
|
Permissible Relative Humidity
|
80%RH
|
|
80%RH
|
||
|
Protection Class
|
IP20
|
|
IP20
|
||
|
USB Interface
|
Yes
|
|
|
||
|
Voltage/Frequency
|
100-120/200-240V 50/60Hz
|
|
|
||
|
Power
|
1400W
|
|
|
||
