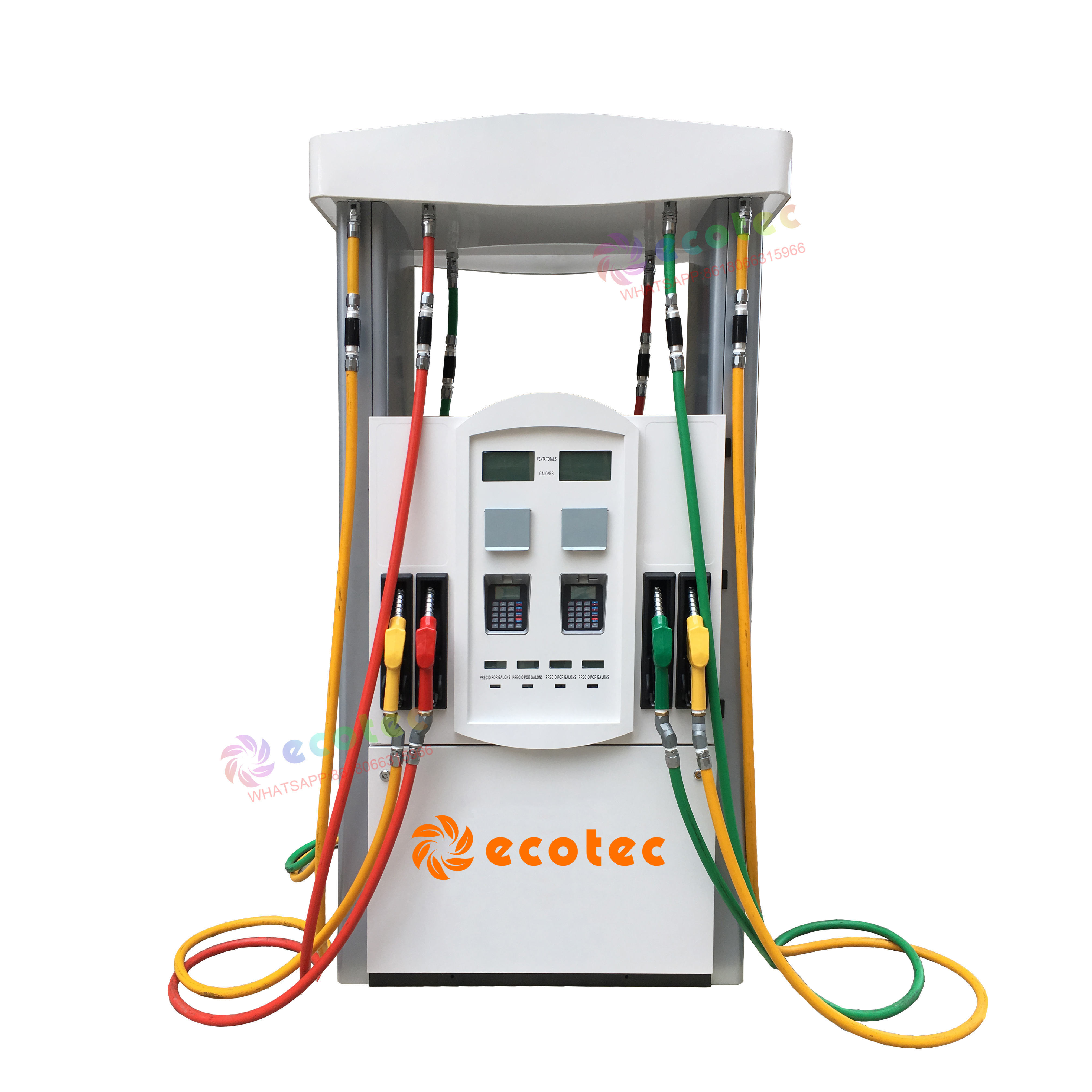

Ecotec Gilbarco Fuel Dispensers Gas Station Equipment

Ecotec Gilbarco Fuel Dispensers Gas Station Equipment

FOB Reference Price: Get Latest Price

≥1 Sets

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power Supply:: 110V/220V/380V, 50/60Hz

Design Life:: 10 years

Warrantee:: 2 Years for Main Parts

Pump:: 1-4 pump

Nozzle:: 1-8 Nozzle

Flow meter:: 1-8 Flow meter

Standard / Certificates:: Atex, OIML Certificates

Solenoid Valve:: 3/4 inch

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: ecotec

Model Number:: ET-E

Power Supply:: 110V/220V/380V, 50/60Hz

Design Life:: 10 years

Warrantee:: 2 Years for Main Parts

Pump:: 1-4 pump

Nozzle:: 1-8 Nozzle

Flow meter:: 1-8 Flow meter

Standard / Certificates:: Atex, OIML Certificates

Solenoid Valve:: 3/4 inch

Products Description

Ecotec Gilbarco Fuel Dispensers Gas Station Equipment

- Ecotec Design & Manufacture
Ecotec mini fuel station meets OIML and ATEX standards and achieving optimum balance of excellent performance economically.
Model available from 1 nozzle to 3 nozzle, from 200 liter to 20,000 liter optional. Both gear pump and motor pump available.

- Ecotec Smart Dispenser Controller
Ecotec smart controller is durable and stable, and it can work with FuelPlus+ station management system.

Function List

Easy operation

Less maintenance

Stable and accurate

Wide range of power supply

Varies of keyboard and display board to meet
different market

Many special function for different area use

Self diagnostics with error code
Working with FuelPlus+ station management system

- Optional Keypad and Display Board
Ecotec offer more options for customer, below is some of our options, contact seller for more type

- Both Suction and Submersible type available.
Ecotec also accept customization, send us the type you prefer!

Suction Model

(Tatsuno Type)

Suction Model

(Tokheim Type)

Submersible Model

（Paper/Metal filter option)

- Optional function
Ecotec offer customized solution for all customer

Solar Panel

Keep business while power off

Digital Level Gauge

Accurate manage stock

FuelPlus+ System

Control your machine by phone&PC

FuelPlus+ Station Management System

- Oil depot, oil tanker trailer, Fuelplus can manage the fuel dispenser, ATG, LED price boardand another device by means of Rs485, Rj45, Lora, wifi,4G/3G and GRPS with database on doudor local basis

- Available on PC, Laptop, Cell phone both i0S and android, as well as other payment termina l(POS)

- Fuelplus can set up center database to control and monitor all fleet stations, every station can have local management system tocontrol the fuel dispenser, ATG,LED price, every fuel dispenser can install POS terminal, IC card reader, lD card reader to achieve self-service, every ATG can linked to fuelplus timely

- Fuelplus also can work as single station or single dispenser, also container station solution, you can install the application on can smart control screen or POS to achieve the control. It can working without any PC

Products Specifications

Standard Model List
Dispenser	Model	Product/Pump	Flow Meter /Nozzle /Hose	Display	Flow rate LPM
Suction type	A112S	1	1	2	50L/M
		A122S	1	1	2	45L/M
		A224S	2	2	4	50L/M
Remote / Submersible type	A112R	1	1	2	50L/M
		A122R	1	1	2	45L/M
		A224R	2	2	4	50L/M
Nozzle number, product number ,flow rate all can be customized, contact for more details

Specification
Pump	Type	Optional (Motor pump or gear pump)
		Inlet Pressure	≥54kPa.
		Flow rate (L/min. )	55±5
		Suction Distance (m)	6(vertical meter) / 50(horizontal meter)
Flow Meter	Type	Optional
Flow Meter		Accuracy	±0.2%
Motor	Voltage(V)	12v/24v/110v/220v
Motor		Capacity(HP)	0.6kw per nozzle
Input Voltage			12v/24v/110v/220v
Nozzle			Auto Shut-off Nozzle
Environmental Condition			-40ºC~~+55ºC
Control Type			Solenoid Vale Control Type
Preset			Function Provided(Small LCD Indicator)
Display(Counter)	Type	LCD and Bright Backlight
		Digit of Volume	0~~999, 999(6 Digits), Decimal point can be changed
		Digit of Amount	0~~999, 999(6 Digits), Decimal point can be changed
		Digit of Unit price	0~~9999(4 Digits), Decimal point can be changed
		Digit of Total Range	0~~99, 999, 999, 99
Optional Display	Type	LCD and Bright Backlight
		Digit of Volume	0~~99, 999, 999(8 Digits), Decimal point can be changed
		Digit of Amount	0~~99, 999, 999(8 Digits), Decimal point can be changed
		Digit of Unit price	0~~999999(6 Digits), Decimal point can be changed
		Digit of Total Range	0~~99, 999, 999, 99
Totalizer			1~~9, 999, 999
Hose			4.5m
Weight			800 kgs
Dimension(L×W×H)			Depending on the model
Qty of Container			40FT: 14 pcs
