Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jing Wei
-
Model Number:
-
PV1-V,H1Z2Z2-K
-
Size:
-
100Meters
-
Certificate:
-
TUV
-
Color:
-
black&red
-
Name:
-
photovoltaic cable
-
Warranty:
-
25 year
-
Working temperature:
-
-40℃ to + 120℃
-
MOQ:
-
100Meters
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
photovoltaic panel
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jing Wei
-
Model Number:
-
PV1-V,H1Z2Z2-K
-
Size:
-
100Meters
-
Certificate:
-
TUV
-
Color:
-
black&red
-
Name:
-
photovoltaic cable
-
Warranty:
-
25 year
-
Working temperature:
-
-40℃ to + 120℃
-
MOQ:
-
100Meters
Products Description

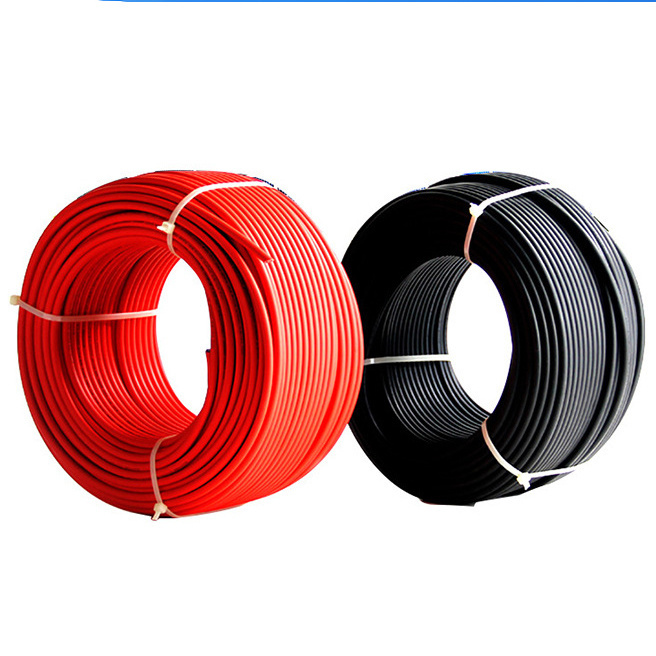

Details Images
|
PV1-F、H1Z2Z2-K
|
Corssilinked polyolefin insulation crosslinked polyolefin sheath solar photovoltaic cable
|
|
|
|
|
||||
|
Nominal crosssectional area mm2
|
(tinnedcopper)conductor type
|
Calculatedconductor overalldiameter(mm)
|
Calculated cableoverall diameter(mm)
|
Calculated cableweight(kg/km)
|
Max.DC resistanceat 20℃(Ω/km)
|
||||
|
1.5
|
5
|
1.6
|
5.1
|
41
|
13.7
|
||||
|
2.5
|
5
|
2
|
5.5
|
53
|
8.21
|
||||
|
4
|
5
|
2.6
|
6.2
|
73
|
5.09
|
||||
|
6
|
5
|
3.2
|
6.8
|
96
|
3.39
|
||||
|
10
|
5
|
4.2
|
7.9
|
149
|
1.95
|
||||
|
16
|
5
|
5.5
|
9.2
|
208
|
1.24
|
||||
|
25
|
5
|
7.2
|
11.2
|
310
|
0.795
|
||||
|
35
|
5
|
8.2
|
12.2
|
411
|
0.565
|
||||
Product packaging
