Quick Details
-
Jacket:
-
Rubber
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
cu/rubber/rubber
-
Size:
-
35 mm2
-
Product name:
-

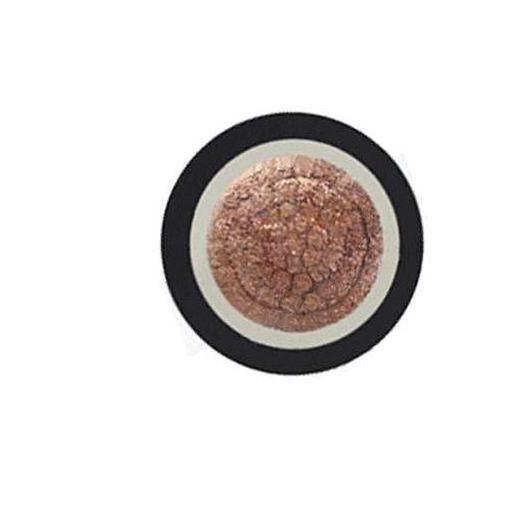

single core rubber welding cable
-
Certificate:
-
ISO
-
Standard:
-
IEC
-
MOQ:
-
1000 meters
-
Production time:
-
10 dyas
-
Package:
-
Wooden Drum
Quick Details
-
Insulation Material:
-
Rubber
-
Application:
-
Industrial
-
Conductor Material:
-
Copper
-
Jacket:
-
Rubber
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aobest
-
Model Number:
-
cu/rubber/rubber
-
Size:
-
35 mm2
-
Product name:
-
single core rubber welding cable
-
Certificate:
-
ISO
-
Standard:
-
IEC
-
MOQ:
-
1000 meters
-
Production time:
-
10 dyas
-
Package:
-
Wooden Drum
rubber cable and weilding cable low voltage
Application:
These rubber-sheathed cables are intended for applications of medium load in dry, moist and wet rooms, for outdoor equipment such in agricultural and industrial applications and locations with associated fire hazards. These cables are also used for large cooking vessels, hot-plates, hand-held lighting fixtures, electric tools such as circular saws, drills, handyman tools as well as for portable motors or machinery at building sites, also used for permanent installation.
|
H07RN-F rubber cable construction |
||||
|
Conductor section:1.0-6.0mm 2 Rated voltage:450/750v |
||||
|
Line core number and conductor nominal section |
Norminal thinkness of insulation(mm) |
Norminal thinkness of sheath (mm) |
Overall Diameter (mm) |
At 20 DC Resistance of conductor (Ω/km) |
|
|
|
|
|
|
|
1x1.5 |
0.8 |
1.4 |
6.00±0.1 |
13.3 |
|
1x2.5 |
0.9 |
1.4 |
6.60±0.1 |
7.98 |
|
2x1.0 |
0.8 |
1.3 |
8.60±0.2 |
19.5 |
|
2x1.5 |
0.8 |
1.5 |
9.60±0.2 |
13.3 |
|
2x2.5 |
0.9 |
1.7 |
11.40±0.3 |
7.98 |
|
2x4.0 |
1.0 |
1.8 |
13.40±0.4 |
4.95 |
|
2x6.0 |
1.0 |
2.0 |
15.6±0.4 |
3.30 |
|
3x1.0 |
0.8 |
1.4 |
9.2±0.2 |
19.5 |
|
3x1.5 |
0.8 |
1.6 |
10.3±0.3 |
13.3 |
|
3x2.5 |
0.9 |
1.8 |
12.00±0.4 |
7.98 |
|
3x4.0 |
1.0 |
1.9 |
14.40±0.4 |
4.95 |
|
3x6.0 |
1.0 |
2.1 |
16.80±0.5 |
3.30 |
|
4x1.0 |
0.8 |
1.5 |
10.30±0.3 |
19.5 |
|
4x1.5 |
0.8 |
1.7 |
11.30±0.4 |
13.3 |
|
4x2.5 |
0.9 |
1.9 |
15.30±0.4 |
7.98 |
|
4x4.0 |
1.0 |
2.0 |
15.90±0.4 |
4.95 |
|
4x6.0 |
1.0 |
2.3 |
18.60±0.5 |
3.30 |
|
5x1.0 |
0.8 |
1.6 |
11.30±0.3 |
19.5 |
|
5x1.5 |
0.8 |
1.8 |
12.50±0.4 |
13.3 |
|
5x2.5 |
0.9 |
2.0 |
14.60±0.4 |
7.98 |
|
5x4.0 |
1.0 |
2.2 |
17.80±0.4 |
4.95 |
|
5x6.0 |
1.0 |
2.5 |
20.60±0.5 |
3.30 |
|
6x1.5 |
0.8 |
2.5 |
14.90±0.4 |
13.3 |
|
6x2.5 |
0.9 |
2.7 |
17.40±0.4 |
7.98 |
|
6x4.0 |
1.0 |
2.9 |
20.70±0.5 |
4.95 |
If in need of special models, specifications, color or length. Please contact us. sales009(at)aobest.cn
