Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Dimension(L*W*H):
-
110*71*(57+38)cm
-
Weight (KG):
-
70 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
color:
-
Gray-white,Blue-white,Gray-red
-
Locating Precision:
-
≤0.01mm
-
Spindle:
-
6 kW square tube air-cooled cutter spindle + 5.5 kW saw blade spindle
-
Processing speed:
-
10-25 meters per minutes
-
Working table:
-
Vacuum Pump Adsorption
-
Machine structure:
-
8mm heavy duty square tube gantry steel frame
-
Milling cutter specifications:
-
6/8/12.7mm
Quick Details
-
Engraving Area:
-
600mm * 400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1-50mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Dimension(L*W*H):
-
110*71*(57+38)cm
-
Weight (KG):
-
70 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
color:
-
Gray-white,Blue-white,Gray-red
-
Locating Precision:
-
≤0.01mm
-
Spindle:
-
6 kW square tube air-cooled cutter spindle + 5.5 kW saw blade spindle
-
Processing speed:
-
10-25 meters per minutes
-
Working table:
-
Vacuum Pump Adsorption
-
Machine structure:
-
8mm heavy duty square tube gantry steel frame
-
Milling cutter specifications:
-
6/8/12.7mm
Product Overview

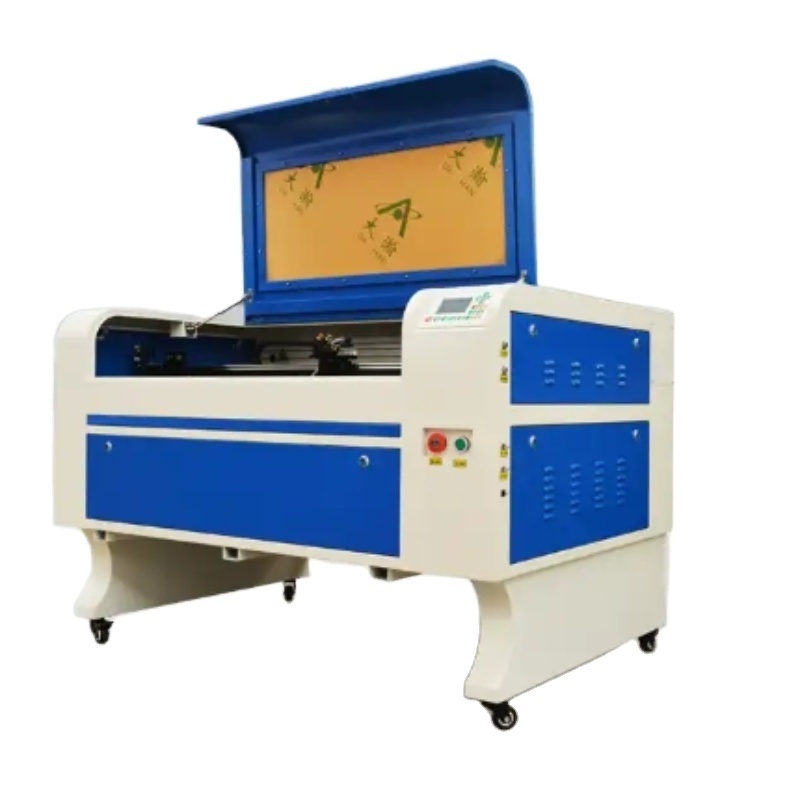

CO2 Laser engraving machine
Precise engraving.Professional engraving optical lens with more stable light beam.Equipped with red light position,making locating more conwenient and pre-cise.High-qualitylaser tube,laser power supply, reduce the failure rate.Data output is more fully due to high-performance motherboard with anti-interference. Lit platform is optional, the lifting height can be upto 300 mm.Rotary carving fittings can be optional according to customer requirements, to solve the dificulties in carving for cylinder and irregular products.
Compatibillity of the sottware is very strong for friendly human-computerinterface and demand of the industries on-the-spot.
Product Detail Drawing
Applicable Industries: advertising decoration,crait and gits,packaging and printing,toys,electron,model,building decoration,etc.
Applicable Materials: acrylic,double-color sheet,MDF,non-metal materlals like leather, cloth,yrubber,wooden boards,bamboo products,onganie glass,plas- ties,marble jade,crystal,etc.
Applicable Materials: acrylic,double-color sheet,MDF,non-metal materlals like leather, cloth,yrubber,wooden boards,bamboo products,onganie glass,plas- ties,marble jade,crystal,etc.
PRODUCT SPECIFICATIONS
|
▶ Model 9060
▶ Laser type CO2 laser tube, water-cooled
▶ Laser power 60W/ 80W/ 100W
▶ Working area 900mm x 600mm 256 color layered output ▶ Engraving speed 1-1000mm/s ▶ Cutting speed 1-300mm/s ▶ Repeating location ≤±0.01 ▶ Transmission type Belt transmission ▶ Driving system stepper motor ▶ Machine table Blade table Honeycomb Platform ▶ Graphic format supported BMP, HPGL(PLT), JPEG, DXF,AI, DST ▶ Software supported CorelDraw, AutoCAD, Photoshop, Tajima ▶ Control system Ruida USB Control system ▶ Working voltage 220V 50Hz Machine
▶Dimension 146*104*(63+38)cm 180KG
▶Tape Packing Dimension 179*112*84cm 220KG ▶Cutting thickness 0-20mm（Different materials） ▶Characteristic 256 color layered output 180-degree Slope Sculpt ▶Guide Rail XY 3-wire 15 linear guide |
Application Cases
Applicable Industries: advertising decoration,crait and gits,packaging and printing,toys,electron,model,building decoration,etc.Applicable Materials: acrylic,double colorsheet,MDF,non-metal materlals like leather, cloth,yrubber,wooden boards,bamboo products,onganie glass,plas- ties,marble jade,crystal,etc.
