Quick Details
-
Max. Lifting Height:
-
30m
-
Span:
-
3-10m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUANTAI
-
Weight (KG):
-
870 kg
-
Type:
-
BX Arm crane
-
Rotation angle:
-
180 Degree
-
Hoisting mechanism:
-
chain or wire rope hoist
-
Operating:
-
Motor Rotation
-
Working Duty:
-
A3/A4
-
Industrial voltage:
-
220V-440V
-
Painting Color:
-
according to client's demand
-
Control method:
-
Radio Controlled Pendent Control
-
Design rule:
-
Appliances,New design
-
LImit switch:
-
Installed
Quick Details
-
Application:
-
Workshop and factory
-
Rated Loading Capacity:
-
250-5000kg
-
Rated Lifting Moment:
-
Lifting Weight
-
Max. Lifting Height:
-
30m
-
Span:
-
3-10m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUANTAI
-
Weight (KG):
-
870 kg
-
Type:
-
BX Arm crane
-
Rotation angle:
-
180 Degree
-
Hoisting mechanism:
-
chain or wire rope hoist
-
Operating:
-
Motor Rotation
-
Working Duty:
-
A3/A4
-
Industrial voltage:
-
220V-440V
-
Painting Color:
-
according to client's demand
-
Control method:
-
Radio Controlled Pendent Control
-
Design rule:
-
Appliances,New design
-
LImit switch:
-
Installed
BX type wall mounted pillar jib crane
Yuantai wall type jib crane is composed of a bracket, a swing arm device and hoist. The cantilever is fixed on the wall or cement column and can be rotated according to the user's needs. The swivel part is divided into manual swivel and electric swivel. The electric chain hoist is mounted on the cantilever rail for lifting heavy objects.
Crane Feature:
1.180 degree electric rotation
2.Optimized design, lightweight structure and space saving
3.Safe and reliable, high efficiency
4.Optional with chain hoist and wire rope hoist as needed
5.Wireless remote control or pendant button control

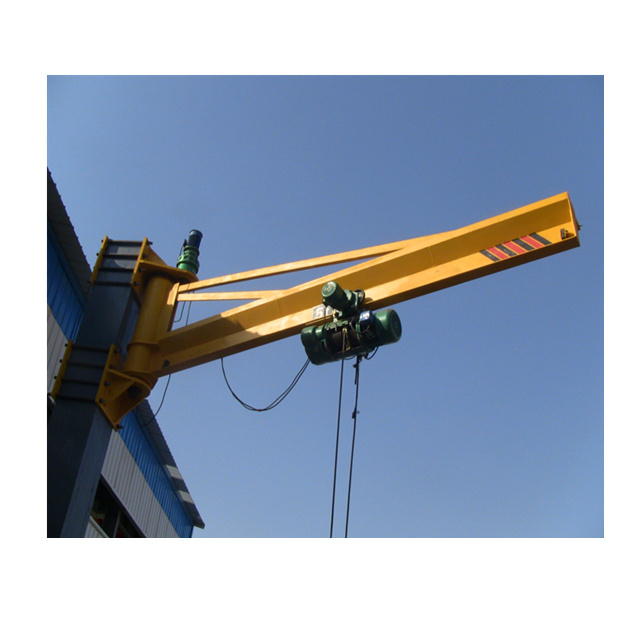

Wall mounted pillar jib crane with electric wire rope hoist and chain hoist
1.Technical parameter
|
Item |
BX model with wire rope hoist |
|
|
Lifting capacity |
0.5t-5t |
|
|
Lifting height |
From ground to the hook |
|
|
Total length |
customizable |
|
|
Rotation angle |
180° |
|
|
Lifting mechanism |
Electric wire rope hoist with trolley |
|
|
Speed |
Hoist traveling speed |
20 m/min |
|
Hoist lifting speed |
8 m/min |
|
|
Slewing speed |
0.7 r/min |
|
|
Working class |
A3 |
|
|
Power supply |
220v-450v |
|
|
Working temperature |
-20℃~40℃ |
|
|
Control method |
Pendant with cable |
|
|
Overload protection system |
Included |
|
|
Lifting limit switch |
Included |
|
|
No-voltage protection system |
Included |
|
|
Protection grade |
IP 54 |
|
2.BX-Jib Crane Parts
3.Product packaging
