Quick Details
-
Rolling Speed (m/min):
-
4 - 8
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
24 months
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
rbqlty
-
Weight (KG):
-
20000 KG
-
Motor Power (kw):
-
20 kw
-
CNC System:
-
TOUCH SCREEN
-
Name:
-
4-roller plate rolling machine
-
Function:
-
rolling machine for sheet metal
-
Control system:
-
CNC control
-
Motor Power:
-
sheet metal 4 roller cnc plate bending machine
-
Color:
-
Blue White Black Red Yellow
-
Electrical components:
-
Schneider
-
Seal Ring:
-
Japan NOK
-
optional device:
-
Support rack
Quick Details
-
Max. Working Length (mm):
-
10000 mm
-
Max. Plate Thickness (mm):
-
8 mm
-
No. of Roller:
-
4
-
Rolling Speed (m/min):
-
4 - 8
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
24 months
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
rbqlty
-
Weight (KG):
-
20000 KG
-
Motor Power (kw):
-
20 kw
-
CNC System:
-
TOUCH SCREEN
-
Name:
-
4-roller plate rolling machine
-
Function:
-
rolling machine for sheet metal
-
Control system:
-
CNC control
-
Motor Power:
-
sheet metal 4 roller cnc plate bending machine
-
Color:
-
Blue White Black Red Yellow
-
Electrical components:
-
Schneider
-
Seal Ring:
-
Japan NOK
-
optional device:
-
Support rack

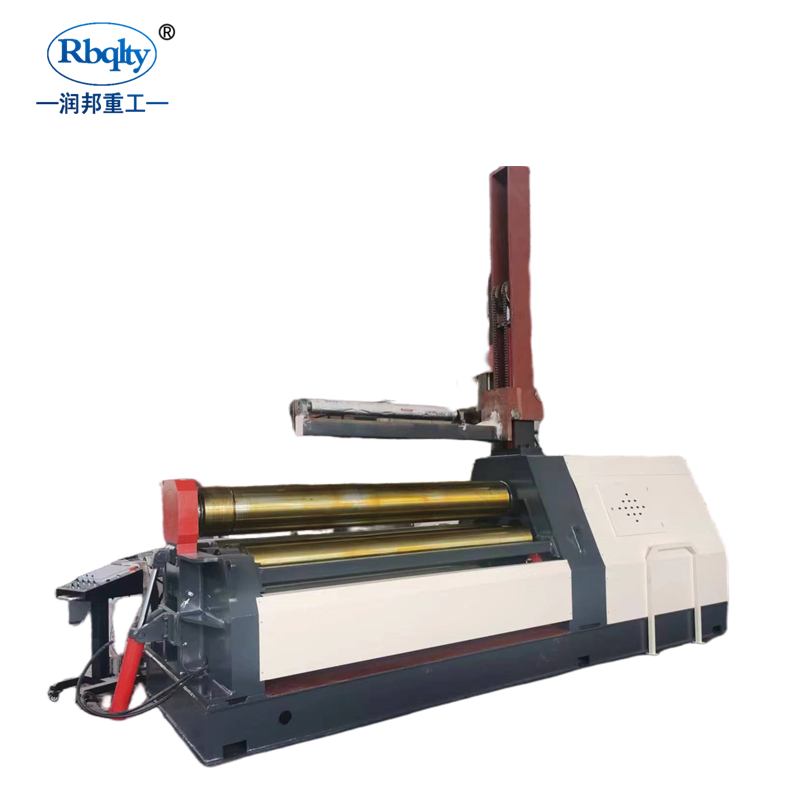

CNC 4-roller plate rolling machine for sheet metal Wholesale suppliers online
Description:
This belongs to four roller plate rolling machine,up roller is fixed and it is the main drive,hydraulic motor driven by variable speed drive gear up and down roller belt drive, to provide torque for the roll sheet; under the roller moves vertically through the hydraulic pressure acting on the piston of hydraulic cylinder obtained in order to clamp plate for hydraulic transmission; the down roll of the sides with side roller and cylinder driven by oil.The machine advantage of end plate bending(pre-bending) and rolling can be conducted on the same machine
Main parts:
1.Working rollers: cast steel ingot(chemical composition analysis):check performance-forging roughcast-forging annealing-UT
flaw-roughing(chemical tests)-heat treatment(hardening and tempering)-UT flaw-semi finishing-finishing-MT.
2..Large forigings: cylinder body, gear, gear shaft forging roughcast-surface imspection-roughing-UT flaw-UT flwa detector hear
treatmenat-finishing semi-finishing-MT.
3.Welding structure: racks, chassis, wheel box plate into the factory(chemical compositon analysis, mechanical
test)-pretreatment-for sheet metal cutting-welding-seam UT or RT flaw-annealing treatment-roughing-finishing-vibration
destressing-hot blasting-finishing 5-4 major parts of the manufacturing process.
Lead time
15 to 40 days
Payment Method
30% T/T in advance, the balance paid before shipping
|
Rbqlty all of the machines with EU standards, have CE, ISO,SGS certification
Contact us! We provide you with our machine certificate.
|
