Quick Details
-
Brand Name:
-
Nachee
-
Product name:
-
Low Pressure LPG Propane Gas Fireplace
-
Material:
-
Copper
-
Pressure:
-
low Pressure
-
Usage:
-
Safety Control Valve Kit
-
Function:
-
Control Flow Water
-
Feature:
-
Durable
-
Service:
-
ODM+OEM
-
Working pressure:
-
Max 1/2 PSI(65mbar)
-
Thread:
-
3/8" Male Flare thread
Quick Details
-
Port Size:
-
6.1mm
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
NC-6387
-
Brand Name:
-
Nachee
-
Product name:
-
Low Pressure LPG Propane Gas Fireplace
-
Material:
-
Copper
-
Pressure:
-
low Pressure
-
Usage:
-
Safety Control Valve Kit
-
Function:
-
Control Flow Water
-
Feature:
-
Durable
-
Service:
-
ODM+OEM
-
Working pressure:
-
Max 1/2 PSI(65mbar)
-
Thread:
-
3/8" Male Flare thread

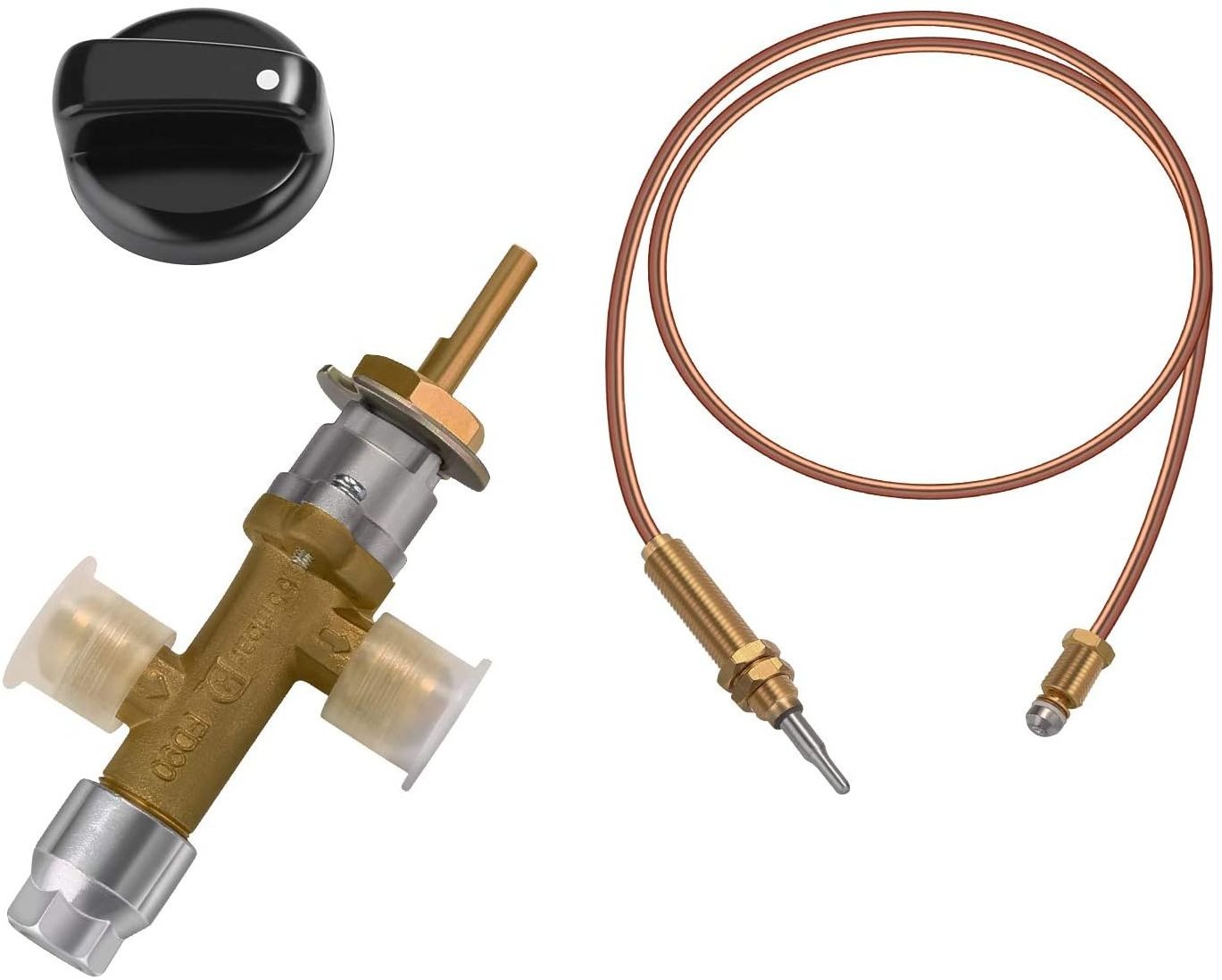

Products Description
|
Package Dimensions
|
8.2 x 4.6 x 0.05 inches
|
|
Item Weight
|
6.1 ounces
|
|
Air inlet and outlet thread
|
5/8-18UNF (3/8"Flare)
|
|
Valve shaft size
|
6.1mm
|
|
Adaptation knob
|
6.0-6.1mm core
|
|
Thermocouple
|
M8*1 length 600mm
|
Operation Instructions
1). Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.
2). Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage)
3). Faston the thermocouple nut M*8 on the valve end tightly
4). Connect thermocouple and end thread well
5). Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6). Release your hand and it work properly If when you release hand, gas valve shut off again, Please check
a. If your thermocouple is always be heated on flame
b. If the thermocouple end is well connect with valve
c. If the inlet and outlet side well connect with hose you have
Possible problems occurs during your use:
1) Valve after turn can not stick during using
2). Connect your inlet and outlet hose on inlet and outlet side. (faston it tightly enough in case of gas leakage)
3). Faston the thermocouple nut M*8 on the valve end tightly
4). Connect thermocouple and end thread well
5). Open gas by correct size knob and push your valve around 5-10s till the thermocouple head is heated enough.
6). Release your hand and it work properly If when you release hand, gas valve shut off again, Please check
a. If your thermocouple is always be heated on flame
b. If the thermocouple end is well connect with valve
c. If the inlet and outlet side well connect with hose you have
Possible problems occurs during your use:
1) Valve after turn can not stick during using
