stainless steel Grille machine Rotary Drum Filter water filtration system

Product Application

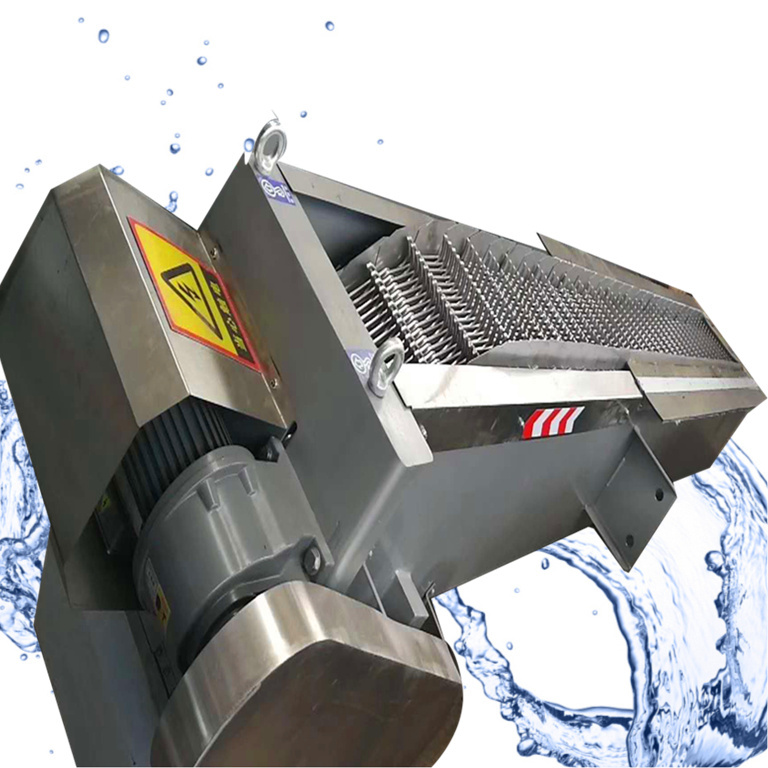

stainless steel Good performance river garbage Grille decontamination machine  It is composed of many same rake gear parts interlaced and parallel assembled into a set of closed rake gear chain, driven by the motor and reducer, through a set of grooved wheels and chain composed of continuous top-down circular movement, to continuously remove the grille. When the rake tooth chain running to the upper and back of the equipment, due to the sprocket and bending of the guiding role of the rail, can make parallel rake tooth row dislocation, so that the solid dirt on its own weight fall into the slag tank, fall off not clean, this kind of grille easy to take the dirt to the grid after the channel.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Machine Parts

Name:MOTOR

POWER :0.37-1.5KW

Main Features

Name: CHAIN
MATERIAL: STAINLESS STEEL

Machine Parts

Name: RAKE TOOTH
MATERIAL: STAINLESS STEEL

Main Features

Name: FIXED
