Quick Details
-
Brand Name:
-
SHENBAO
-
Model Number:
-
SBS100-310
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
max 250Hp
-
Cable Length:
-
0
-
Outlet Size:
-
100mm
-
Power:
-
max 185KW
-
DN:
-
150/100mm
-
capacity:
-
122.3L/S
-
Speed:
-
2900RPM (50Hz), 3500RPM/60Hz
-
Head:
-
Max 135m
-
Operating pressure:
-
Max 2.5MPa
-
Operating temperature:
-
Max 120 degree cassias
-
shaft materials:
-
cast iron, ductile cast iron, cast steel, bronze, SS
-
impeller size:
-
max 325mm
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
ma 1.6Mpa
-
Voltage:
-
380V, 400V, 415V or others
-
Brand Name:
-
SHENBAO
-
Model Number:
-
SBS100-310
-
Place of Origin:
-
Shanghai, China
-
Horsepower:
-
max 250Hp
-
Cable Length:
-
0
-
Outlet Size:
-
100mm
-
Power:
-
max 185KW
-
DN:
-
150/100mm
-
capacity:
-
122.3L/S
-
Speed:
-
2900RPM (50Hz), 3500RPM/60Hz
-
Head:
-
Max 135m
-
Operating pressure:
-
Max 2.5MPa
-
Operating temperature:
-
Max 120 degree cassias
-
shaft materials:
-
cast iron, ductile cast iron, cast steel, bronze, SS
-
impeller size:
-
max 325mm

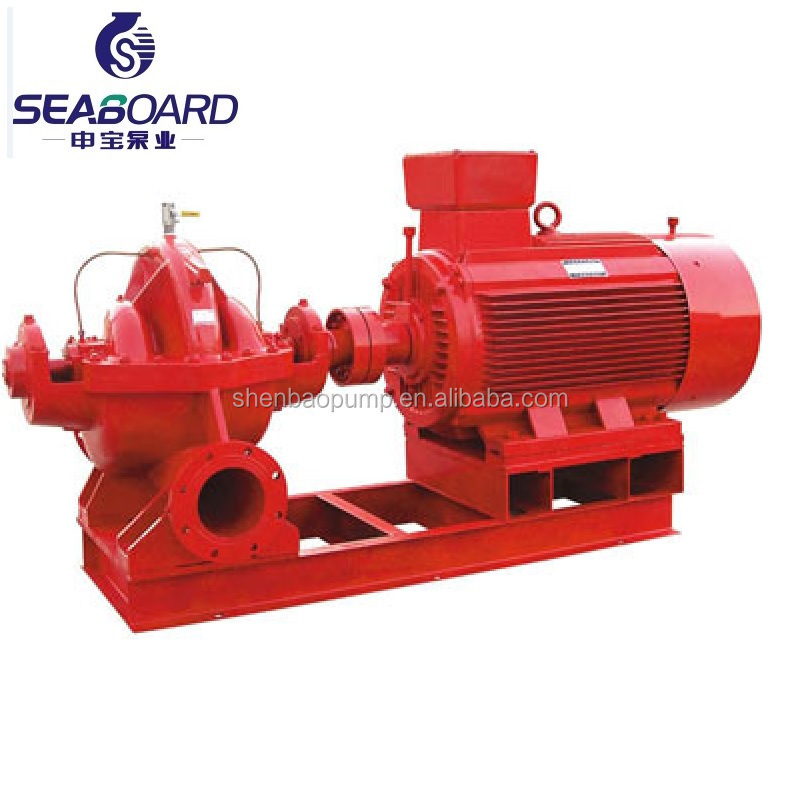

Products: centrifugal theory electrical fire water pump
This type of pump impeller actually consists of two back-to-back impellers, from which the water flow into a volute. One double suction pump works just like two same diameter end-suction pumps work at the same time, so its flow quantity can be doubled by using the same outer diameter impeller.
The horizontal split structure of pump shell makes easy inspection and maintenance possible. Meanwhile, the entry end and exit end of double suction pump are in the same direction, being perpendicular to the pump shaft, which is helpful for the layout and installation of pumps and water pipes; double suction pump is characterized by symmetrical impeller structure and non axial force, so it can run more smoothly and can satisfy the operating requirement of mass flow and high lift.
Parameters:
| Parts Materials for options | Casing Materials | Cast iron, Ductile Cast Iron, Cast steel, Bronze, AISI304, 316, 316L, Duplex |
| Impeller Materials | Cast iron, Ductile Cast Iron, Cast steel, Bronze, AISI304, 316, 316L, Duplex | |
| Wear Ring Materials | Cast iron, Cast steel, Bronze, AISI304, 316, 316L, Duplex | |
| Shaft Material | Carbon Steel, AISI 304, 316, 316L, Duplex | |
| Shaft Sleeve Material | Cast Iron, carbon steel, bronze, AIDSI304 316L, 316, Duplex | |
| Pump Discharge Diameter | DN | 80-800mm |
| Capacity | Q | Max3100L/S |
| Head | H | Max200m |
| Operating pressure | P | Max2.5MPa |
| Operating temperature | T | Max120degree Celsius |
Products Pictures:
Ready for Packing And Shipping
Manufacturing Plant Showing:
For More Details, please Contact:
