4 in 1 2000w laser welding machine small lazer welder maquina de solda laser 3 em 1

4 in 1 2000w laser welding machine small lazer welder maquina de solda laser 3 em 1

FOB Reference Price: Get Latest Price

≥1 Sets

US $3300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: KNOPPO

Wavelength:: 1070nm, 1070nm

Focal Spot Diameter:: 0.2mm-5mm

Dimensions:: 1230*600*1200mm

Weight (KG):: 200 KG

Core Components:: Laser Source

Product name:: Laser Welding Machine

Cable Length:: 10m

Laser Power:: 1000W / 1500W / 2000W/3000W

Control System:: Relfar /Qilin/Chaoqiang

Laser Head:: Relfar/ Qilin/Chaoqiang

Laser Source:: Raycus / MAX

Cooling Type:: Water Chiller

Spot size:: 0.2-5mm adjustable

Working Mode:: dot/line/circle

Quick Details

Max. Output Power:: 3000W

Usage:: Metal welding

Laser Source Brand:: RAYCUS

Place of Origin:: Shandong, China

Brand Name:: KNOPPO

Wavelength:: 1070nm, 1070nm

Focal Spot Diameter:: 0.2mm-5mm

Dimensions:: 1230*600*1200mm

Weight (KG):: 200 KG

Core Components:: Laser Source

Product name:: Laser Welding Machine

Cable Length:: 10m

Laser Power:: 1000W / 1500W / 2000W/3000W

Control System:: Relfar /Qilin/Chaoqiang

Laser Head:: Relfar/ Qilin/Chaoqiang

Laser Source:: Raycus / MAX

Cooling Type:: Water Chiller

Spot size:: 0.2-5mm adjustable

Working Mode:: dot/line/circle

Product Description

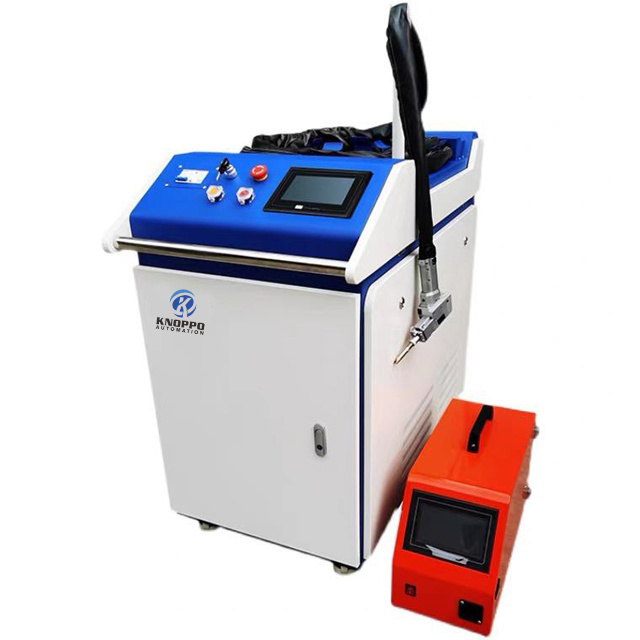

Fiber Laser Welding Machine

The handheld manual laser welder is used for welding carbon steel, stainless steel, aluminum, brass, copper, iron, silver, gold,and more tube & sheet metals. The portable handheld fiber laser welding machine will take over the traditional argon arc welding,MIG & TIG welding, and electric welding for metal joints.

Application

Applicable Materials
Handheld laser soldering machine can be used for welding stainless steel, carbon steel, copper, aluminum, gold, chromium, silver,titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, including copper - brass, titanium - molybdenum, titanium - gold, nickel - copper, and so on.
Applicable Industries
Handheld laser soldering machine is widely used in the kitchen cabinets, staircase elevator, shelf, oven, stainless steel door,window guardrail, distribution box, medical equipment, communications equipment, battery manufacturing, craft gifts, household and other industries.

Sample

Technical Parameter

Model	KW-M
Wavelength	1070nm
Cable Length	10m
Laser Power	1000W / 1500W / 2000W /3000W
Spot size	0.2-5mm adjustable
Working Mode	± 0.01 mm
Marking speed	dot/line/circle
Protective lens	D20*2
Laser Head	Relfar /Qilin/Chaoqiang
Laser Source	Raycus/MAX
Control System	Relfar /Qilin/Chaoqiang
Gas	N2/Ar
Cooling Type	Water Cooling
Auto Wire-feeding	Standard
Voltage	220±20% VAC 50/60Hz 380±20% V AC 50/60Hz

Welding ability

			Welding Penetration Maximum Material	Welding Maximum Material
Stainless steel	1000w	3mm	4mm
		1500w	4mm	5mm
		2000w	5mm	6mm
Galvanized sheet	1000w	2mm	3mm
		1500w	3mm	5mm
		2000w	3mm	6mm
Iron	1000w	3mm	5mm
		1500w	4mm	6mm
		2000w	4mm	6mm
Mild steel	1000w	3mm	5mm
		1500w	4mm	6mm
		2000w	4mm	6mm
Aluminum	1000w	1mm	2mm
		1500w	2mm	3mm
		2000w	3mm	4mm
Brass	1000w	1mm	2mm
		1500w	2mm	2mm
		2000w	2mm	3mm

Configuration

Recommend Products

Packing & Delivery

Wooden box package , safedelivery.

After Sales Service

*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.

*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
