Quick Details
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
LLT
-
Model Number:
-
LLT-M19-20003-F3034
-
Product name:
-

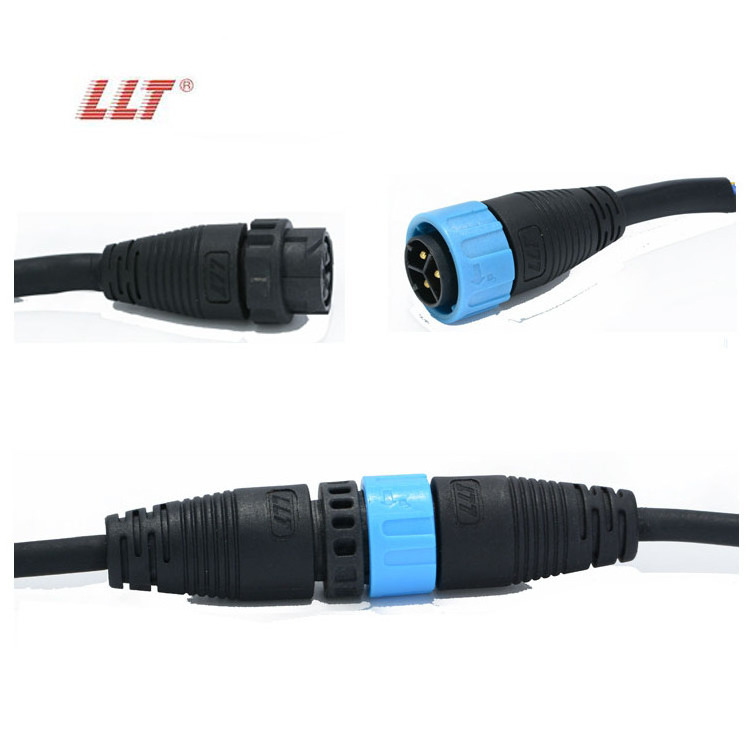

3pin waterproof connector
-
Rated Voltage:
-
250V 20A
-
Usage:
-
outdoor and indoor
-
Material:
-
high performance NYLON PA66
-
Protection level:
-
IP67 IP68 waterproof
-
Certificate:
-
ISO9001/CE/ROHS/TUV/SAA
-
Connector type:
-
cable molded connector
-
Contact material:
-
Gold Plated Brass
Quick Details
-
Type:
-
cable waterproof connector
-
Application:
-
Power
-
Gender:
-
Male Female
-
Place of Origin:
-
Guangdong, China, Shenzhen, China
-
Brand Name:
-
LLT
-
Model Number:
-
LLT-M19-20003-F3034
-
Product name:
-
3pin waterproof connector
-
Rated Voltage:
-
250V 20A
-
Usage:
-
outdoor and indoor
-
Material:
-
high performance NYLON PA66
-
Protection level:
-
IP67 IP68 waterproof
-
Certificate:
-
ISO9001/CE/ROHS/TUV/SAA
-
Connector type:
-
cable molded connector
-
Contact material:
-
Gold Plated Brass
Related Products
LLT outdoor 2 3 4 5 6 7 8 9 10 11 12 13 14 16 18 pin quick connect electrical waterproof cable connectors
Product Description
| 1 | Model No. | LLT-M19 3pin waterproof connector | |
| 2 | Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated | |
| 4 | Sealing | Silica Gel | |
| 5 | Property | Current Rating | 20AMP |
| 6 | Voltage Rating | 250V | |
| 7 | Contact Resistance | <10mΩ | |
| 8 | Insulation Resistance | 1000MΩ at DC 500V | |
| 9 | Breakdown Voltage | 1.5KV/1minute | |
| 10 | Temperature Rating | -45 °C~ +105 °C | |
| 11 | Durability(Plug/Unplug) | 3000 times | |
| 12 | Waterproof Rating | IP67 IP68 waterproof | |
| 13 | Cable Max. Diameter | 11mm(<=2.5mm2) | |
| 14 | Pins Range | 2, 3, 4, 5, 6, 7, 8,9,10,12,14,16,18 | |
| 15 | Certificate | CCC; CE; RoHS;SAA | |
Product Uses
Our waterproof connectors are widely used for outdoor lighting,new energy vehicles and charging equipment,communication network,underwater detector and so on.
