Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RUNZE
-
Model Number:
-
Y
-
Product name:
-
Three Way Hose Barbed Connector
-
Sizes:
-
1/16 to 5/16 for options
-
Material:
-
PP
-
Function:
-
Hose connection
-
Anti temperature:
-
up to 120℃
-
Anti pressure:
-
up to 2 bars
-
Color:
-
Natural PP
Quick Details
-
Technics:
-
Mould Injection
-
Shape:
-
Y
-
Head Code:
-
Rounded
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RUNZE
-
Model Number:
-
Y
-
Product name:
-
Three Way Hose Barbed Connector
-
Sizes:
-
1/16 to 5/16 for options
-
Material:
-
PP
-
Function:
-
Hose connection
-
Anti temperature:
-
up to 120℃
-
Anti pressure:
-
up to 2 bars
-
Color:
-
Natural PP
Let's see how runze plastic fitting are produced !
Products Description
|
Product Description
|
|
|
|
|
||||
|
Product Name
|

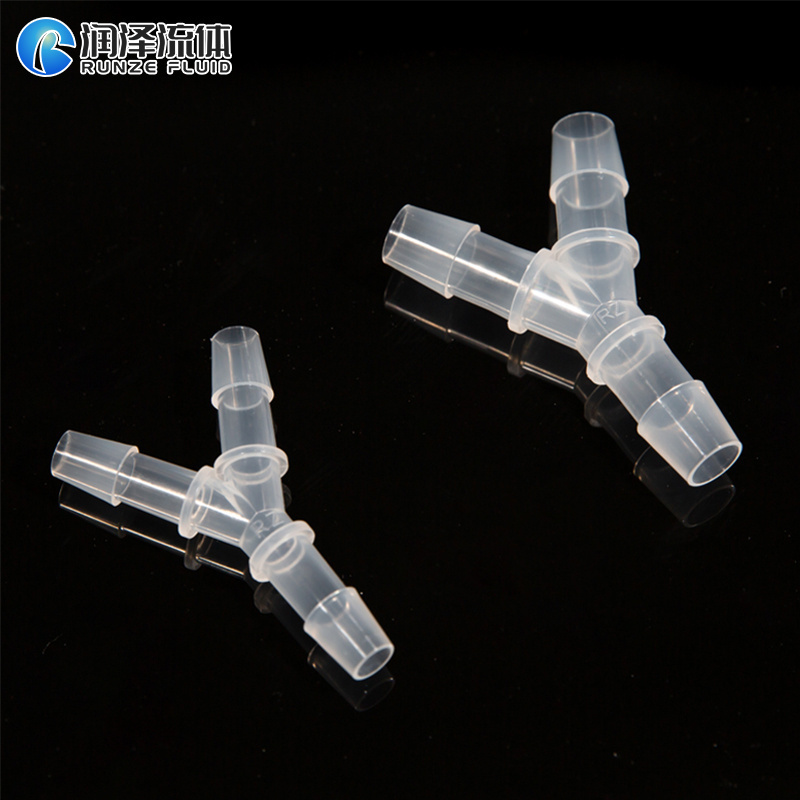

Runze Plastic 5/64"-5/64" 2.0mm~4.8mm Hose Barbed Connector 3 Ways "Y" Shape Tee Barbed Fittings
|
|
|
|
||||
|
Technology
|
Injection molding
|
|
|
|
||||
|
Connection Method
|
Easy Assembly Hose barbed
|
|
|
|
||||
|
Application
|
Analysis, medical, cosmetics, biochemical,industrial, lab, food & beverage processing etc
|
|
|
|
||||
|
Adapted medium
|
Gas/Liquid
|
|
|
|
||||
|
Material
|
Natura Polypropylene or customized
|
|
|
|
||||
|
|
please consult customer service for more details.
|
|
|
|
||||
|
Size
|
3 Ways "T" and "Y "shaped hose barbed fittings are flexible and available.
|
|
|
|
|
|
|||||
|
|
3 Ways "T" barb:
|
|
|
|
|
|
|||||
|
|
Tubing ID:
[T-016] 3/64"-1/16"（1.0-1.6mm）, [T-020] 1/16"-5/64"（1.6-2.0mm), [T-024] 5/64"-3/32"（2.0-2.4mm), [T-032] 3/32"-1/8"（2.4-3.2mm), [T-040] 1/8"-5/32"（3.2-4.0mm), [T-048] 5/32"-3/16"（4.0-4.8mm), [T-064] 3/16"-1/4"（4.8-6.4mm), [T-087] 1/4"-11/32"（6.4-8.7mm) |
|
|
|
|
|
|||||
|
|
3 Ways "Y" barb:
|
|
|
|
|
|
|||||
|
|
Tubing ID:
[Y-016] 3/64"-1/16"（1.0-1.6mm）, [Y-020] 1/16"-5/64"（1.6-2.0mm), [Y-024] 5/64"-3/32"（2.0-2.4mm), [Y-032] 3/32"-1/8"（2.4-3.2mm), [Y-040] 1/8"-5/32"（3.2-4.0mm), [Y-048] 5/32"-3/16"（4.0-4.8mm), [Y-064] 3/16"-1/4"（4.8-6.4mm), [Y-087] 1/4"-11/32"（6.4-8.7mm) |
|
|
|
|
|
|||||
|
Shape options
|
2 ways: Straight "I" and Elbow "L";
|
|
|
|
|
|
|||||
|
|
3 ways: Tee "T", and Wye "Y";
|
|
|
|
|
|
|||||
How to find the barbed union in right size
|
3 Ways "T" Shape Tee Barbed Fittings Specification
|
Tube ID (mm)
|
Thread Length (mm)
|
Thread Type
|
|||
|
Model
|
Hose ID (unit:mm)
|
Model
|
Hose ID (unit:mm)
|
|||
|
Y-016
|
3/64"-1/16"（1.0-1.6mm）
|
Y-040
|
1/8"-5/32"（3.2-4.0mm)
|
|||
|
Y-020
|
1/16"-5/64"（1.6-2.0mm)
|
Y-048
|
5/32"-3/16"（4.0-4.8mm)
|
|||
|
Y-024
|
5/64"-3/32"（2.0-2.4mm)
|
Y-064
|
3/16"-1/4"（4.8-6.4mm)
|
|||
|
Y-032
|
3/32"-1/8"（2.4-3.2mm)
|
Y-087
|
1/4"-11/32"（6.4-8.7mm)
|
|||
