Quick Details
-
Power:
-
2.2kw
-
Table Size:
-
0.65*0.65m
-
Overall Dimensions:
-
1.42*0.78*1.97m
-
Weight:
-
290 kg
-
Core Components:
-
GTWY Series aluminum lift table
-
load capacity:
-
100kg-200kg
-
lifting height:
-
4M-20M
-
power:
-
2.2KW
-
speed::
-
90mm/s
-
control::
-
24v safey controls
-
Port:
-
Qingdao
-
Lead Time:
-
10 days after confirmation of the order
-
Product name:
-
Cheap Price Aluminium First Lift Stair With Ce Certificate
-
Keyword:
-
aluminium first lift stair
-
Application:
-
Widely
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
Sino-Aluminum lift table
-
Power:
-
2.2kw
-
Table Size:
-
0.65*0.65m
-
Overall Dimensions:
-
1.42*0.78*1.97m
-
Weight:
-
290 kg
-
Core Components:
-
GTWY Series aluminum lift table
-
load capacity:
-
100kg-200kg
-
lifting height:
-
4M-20M
-
power:
-
2.2KW
-
speed::
-
90mm/s
-
control::
-
24v safey controls
-
Port:
-
Qingdao
-
Lead Time:
-
10 days after confirmation of the order
-
Product name:
-
Cheap Price Aluminium First Lift Stair With Ce Certificate
-
Keyword:
-
aluminium first lift stair
-
Application:
-
Widely
Products Description

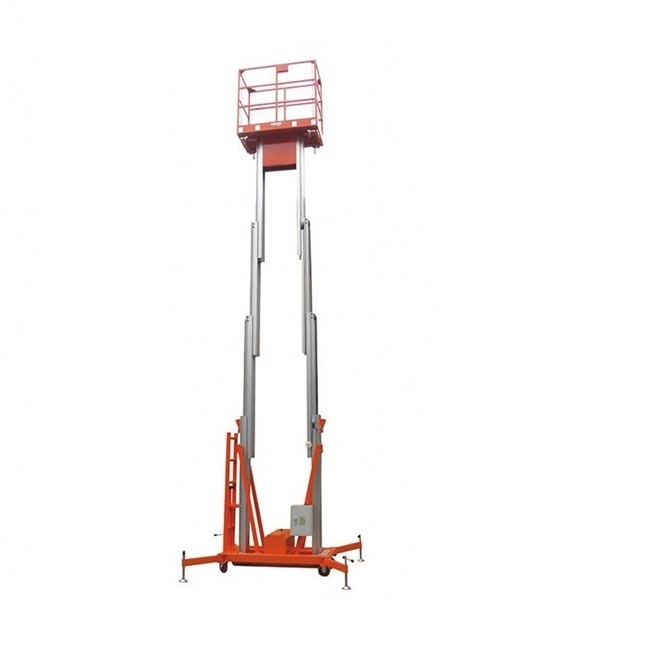

One Column Mobile Climbing Personal Vertical Single Mast Hydraulic Lift
Aluminium Alloy Hydraulic Lift Machine
1. This series of products subject structure using high-strength aluminum alloy material.
2. The equipment takes up small spaces , light-weight, mobile flexible, looks beautiful.
3. Electrical control or manual pump control when the electricity is not available.
4. Two control panel: one is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.
5. Easily pushed around to the designated sites
6. Low energy consumption, no pollution, do no damage to the grounds
7. The power sources can be 110V 220V 380V AC power, DC power, depending on the local power sources
Details Images
Product Paramenters
|
Name
|
Model
|
Platform height
|
Platform capacity
|
Platform Size
|
Power source
|
Total weight
|
Dimension(LWH)
|
|
Single mast
|
GTWY4-1
|
4m
|
100kg
|
0.6*0.6m
|
1.1kw/220V
|
280kg
|
1.3*0.8*1.98m
|
|
|
GTWY6-1
|
6m
|
150kg
|
0.65*0.65m
|
1.1kw/220V
|
360kg
|
1.42*0.78*1.97m
|
|
|
GTWY8-1
|
8m
|
130kg
|
0.65*0.65m
|
1.1kw/220V
|
380kg
|
1.42*0.78*1.97m
|
|
|
GTWY10-1
|
10m
|
130kg
|
0.65*0.65m
|
1.1kw/220V
|
420kg
|
1.42*0.78*1.97m
|
|
Double mast
|
GTWY6-2
|
6m
|
300kg
|
1.2*0.63m
|
1.5kw/220V
|
510kg
|
1.55*0.85*2.0m
|
|
|
GTWY8-2
|
8m
|
300kg
|
1.2*0.63m
|
1.5kw/220V
|
550kg
|
1.55*0.85*2.0m
|
|
|
GTWY10-2
|
10m
|
250kg
|
1.5*0.63m
|
1.5kw/220V
|
690kg
|
1.84*0.85*2.0m
|
|
|
GTWY12-2
|
12m
|
200kg
|
1.5*0.63m
|
1.5kw/220V
|
730kg
|
1.84*0.85*2.0m
|
|
|
GTWY14-2
|
14m
|
150kg
|
1.5*0.63m
|
1.5kw/220V
|
790kg
|
1.95*1.05*2.39m
|
|
Three mast
|
GTWY12-3
|
12m
|
200kg
|
1.57*0.9m
|
2.2kw/220V
|
1050kg
|
1.9*1.1*1.98m
|
|
|
GTWY14-3
|
14m
|
200kg
|
1.57*0.9m
|
2.2kw/220V
|
1120kg
|
1.9*1.2*2.3m
|
|
|
GTWY16-3
|
16m
|
200kg
|
1.57*0.9m
|
2.2kw/220V/380V
|
1200kg
|
2.0*1.2*2.7m
|
|
Four mast
|
GTWY12-4
|
12m
|
200kg
|
1.57*0.9m
|
2.2kw/220V/380V
|
1050kg
|
1.9*1.2*2.0m
|
|
|
GTWY14-4
|
14m
|
200kg
|
1.57*0.9m
|
2.2kw/220V/380V
|
1150kg
|
1.9*1.2*2.3m
|
|
|
GTWY10-4
|
16m
|
200kg
|
1.57*0.9m
|
2.2kw/220V/380V
|
1250kg
|
1.9*1.2*2.7m
|
|
|
GTWY18-4
|
18m
|
200kg
|
1.57*0.9m
|
2.2kw/220V/380V
|
1480kg
|
2.0*1.4*2.96m
|
