- Product Details
- {{item.text}}
Quick Details
-
Luminous Intensity:
-
6000-7000mcd
-
Luminous Flux(lm):
-
6000
-
Optical Attenuation(%):
-
10
-
Power Dissipation:
-
2.5W
-
Viewing Angle(°):
-
80*150 90
-
Color Temperature:
-
3000K 4000K 5000K 6000K 6500K
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-20 - 40
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ce RoHS
-
Input Voltage:
-
180-240Vac (220V) or 110-120V
-
Dimensions:
-
298*70*47mm
-
Luminous Efficiency:
-
120lm/W
-
LEDs Brand:
-
Refond or Lumileds
-
LEDs Qty:
-
64 pieces
-
Net Weight:
-
0.49kgs
-
IP Rating:
-
IP68
-
Features:
-
Driverless model design, AC input
-
Lighting Distributions:
-
90° bay lighting, 80° * 150° degree street lighting
Quick Details
-
Warranty(Year):
-
3-Year
-
Luminous Efficacy(lm/w):
-
120
-
Product Weight（kg）:
-
0.48
-
Luminous Intensity:
-
6000-7000mcd
-
Luminous Flux(lm):
-
6000
-
Optical Attenuation(%):
-
10
-
Power Dissipation:
-
2.5W
-
Viewing Angle(°):
-
80*150 90
-
Color Temperature:
-
3000K 4000K 5000K 6000K 6500K
-
Operating Temperature(℃):
-
-40 - 50
-
Storage Temperature(℃):
-
-20 - 40
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ce RoHS
-
Input Voltage:
-
180-240Vac (220V) or 110-120V
-
Dimensions:
-
298*70*47mm
-
Luminous Efficiency:
-
120lm/W
-
LEDs Brand:
-
Refond or Lumileds
-
LEDs Qty:
-
64 pieces
-
Net Weight:
-
0.49kgs
-
IP Rating:
-
IP68
-
Features:
-
Driverless model design, AC input
-
Lighting Distributions:
-
90° bay lighting, 80° * 150° degree street lighting

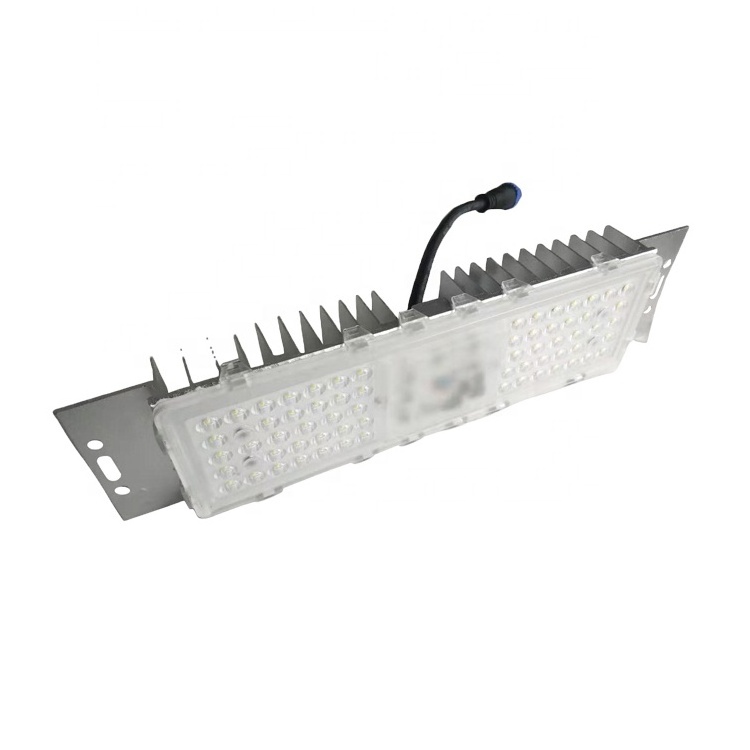

40W 50W led light module Street Lighting Garden Lamps direct AC Input Driverless dob led module
Features:
1) Original Refond or Lumileds LED chips, AC input driverless design;
2) Super-high luminous efficiency as 120lm/W, extra energy saving product;
3) 298*70*47mm CSA standard size, which can adapt to many light housings;
4) 50W, 40W each piece, combination use for full power solutions;
5) Suitable for street lighting, tunnel lighting, gas station light etc.;
6) >50,000hrs lifetime, 3 years warranty.
Main parameter:
| LED Light Source | Refond or Lumileds LEDs, 64pcs |
| Output Power | 50W, 40W |
| Luminous Flux | 6000lm |
|
Luminous Efficiency
|
120lm/W |
| Input Voltage Range | 180-240Vac or 110-120Vac |
| Lighting Distributions | 80° * 150°, 9 0° |
| CCT | 3000K, 4000K, 5000K, 6000K, 6500K |
| IP Class | IP68 |
| Product Fixture Size | 298*70*47mm, 490g |
| Warranty |
3 years |
More requirements about the item,Please send quote request
Light distribtion:
More requirements about the item,Please send quote request
Dimensions:
More requirements about the item,Please send quote request
Application:
More requirements about the item,Please send quote request
More requirements about the item,Please send quote request
More requirements about the item,Please send quote request
More requirements about the item,Please send quote request
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
