Quick Details
-
Mounting Type:
-
Thru-Hull
-
Description:
-
50khz&200khz, Marine Ultrasonic Transducer
-
Manufacturing Date Code:
-
12345
-
Model Number:
-
A-TD25
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OVA
-
Theory:
-
Ultrasonic Sensor, Ultrasonic Sensor
-
Output:
-
600&300W
-
Material:
-
Bronze
-
Product name:
-
Marine Ultrasonic Transducer
-
Frequency:
-
50&200KHz
-
Power:
-
600&300W
-
Installation:
-
Thru-Hull
Quick Details
-
Usage:
-
Transducer for fish finder
-
Series:
-
epth Finder transducer
-
Features:
-
600w
-
Mounting Type:
-
Thru-Hull
-
Description:
-
50khz&200khz, Marine Ultrasonic Transducer
-
Manufacturing Date Code:
-
12345
-
Model Number:
-
A-TD25
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OVA
-
Theory:
-
Ultrasonic Sensor, Ultrasonic Sensor
-
Output:
-
600&300W
-
Material:
-
Bronze
-
Product name:
-
Marine Ultrasonic Transducer
-
Frequency:
-
50&200KHz
-
Power:
-
600&300W
-
Installation:
-
Thru-Hull

Product Description

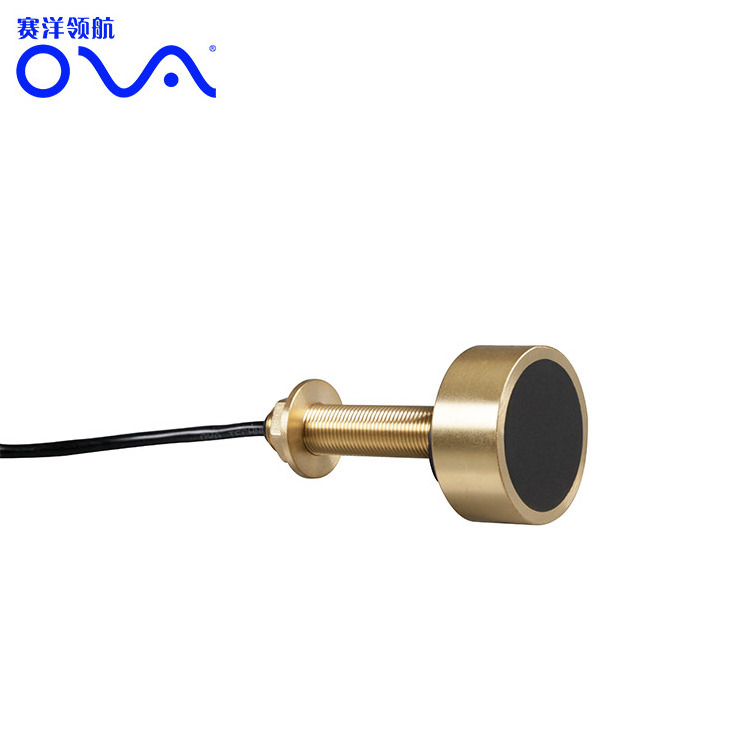

200KHz underwater Boat Depth Finder Sensor ultrasonic transducer for depth measurement
Features:
■ High Sensitivity, Strong Anti-interference
■ Firm and Durable, High Frequency Precision
■ Good target detail in shallow water at 200KHz and good deep-water bottom tracking at 50KHz
■ Frequency: 50KHz, 200KHz, 50&200KHz
■ Power: 300W, 600W, 1KW, 1.5KW, 1.8KW, 2.5KW, 3KW, 5KW are available
■ Bronze, rubber, plastic housings are available
■ High reliability fish finder or echo sounder transducer
■ Excellent noise characteristics
Function:
A) Use chiefly for hydro location in seas, rivers and lakes;
B) Use special technology, can work using either one or two resonance frequencies;
C) Using wide-band technology, receiving sensitivity and transmitting. Response is very high.
A) Use chiefly for hydro location in seas, rivers and lakes;
B) Use special technology, can work using either one or two resonance frequencies;
C) Using wide-band technology, receiving sensitivity and transmitting. Response is very high.
Specification
Transducer Item
|
A-TD25
|
Frequency
|
50&200KHz
|
Power
|
600&300W
|
Cable Length
|
10m/3P
|
Housing
|
Bronze
|
Installation
|
Thru-Hull
|
Packing Size
|
25.5x12.5x9.5cm
|
Weight
|
1.1kg
|
