Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
superb
-
Voltage:
-
220v-440v, 220V/380V/440V, 220v/360vas your request
-
Dimension(L*W*H):
-
390*190*190 mm,
-
Weight (KG):
-
960 kg
-
Mould:
-
Customers' Drawings
-
Color:
-
Customer's Request
-
Pallet size:
-
Unnecessary
-
After-sales Service:
-
Provided
-
Advantage:
-
High Efficiency
-
Motor:
-
100% Copper Wire
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
superb
-
Voltage:
-
220v-440v, 220V/380V/440V, 220v/360vas your request
-
Dimension(L*W*H):
-
390*190*190 mm,
-
Weight (KG):
-
960 kg
-
Mould:
-
Customers' Drawings
-
Color:
-
Customer's Request
-
Pallet size:
-
Unnecessary
-
After-sales Service:
-
Provided
-
Advantage:
-
High Efficiency
-
Motor:
-
100% Copper Wire
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
Product Description

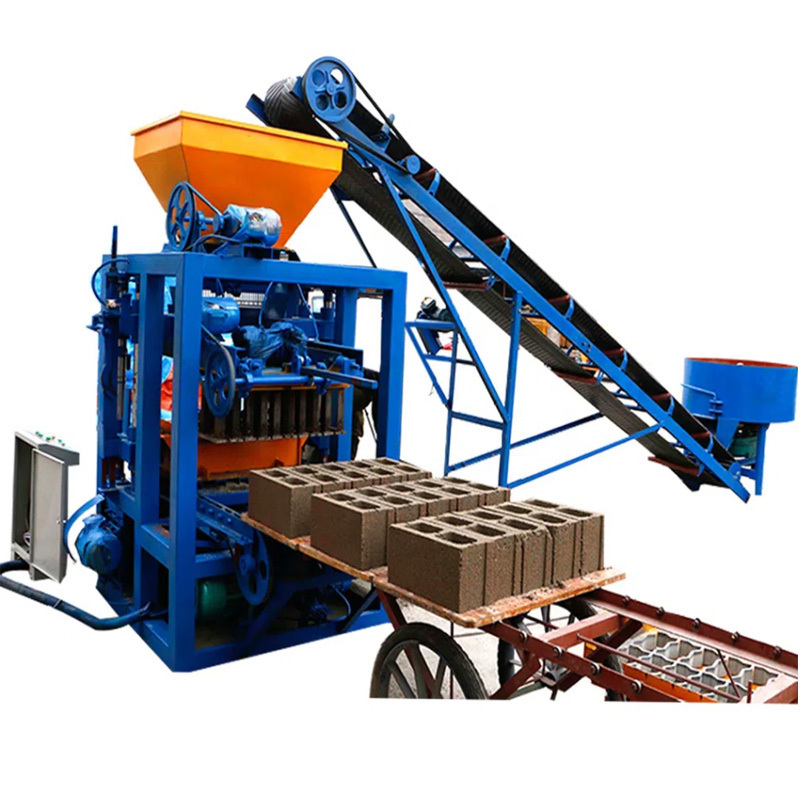

The brick making machine uses the vertical vibration of the shaking table and the co vibration of the mould pressing, adopts the shaking type independent cloth distribution, adopts the spring isolation for the whole machine's suspension and connection parts, and adopts the double crank linkage mechanism with the function of mechanical balance for the lifting and moving of the lower mold box. It can produce solid brick, hollow brick and paving brick. It needs about 200 square meters of site and 2-4 workers. It can be equipped with a secondary distributor to produce colored paving bricks and wall bricks.
Raw Materials
The QTJ4-30A cement brick making machine has a wide range of raw materials, including cement, concrete, sand and more. According to the scientific ratio, the bricks produced can be made stronger and meet the needs of customers.
Mold Samples
We can customize the size of the mold according to the customer's requirements,The following is our sample mold.
Product Paramenters
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home
Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Type
|
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
|
|
Brick Raw Material
|
CONCRETE
|
|
Processing
|
Brick Production Line
|
|
Method
|
Hydraulic pressure
|
|
Automatic
|
Yes
|
|
Production Capacity (Pieces/8 hours)
|
5760 pcs/8hours
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Brand Name
|
SUPERB
|
|
Voltage
|
380V/220V
|
|
Dimension(L*W*H)
|
1200*1200*1600
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Brick size
|
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm,
Other, 400*200*200 mm, 230*220*115 mm
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1.5 years
|
|
Core Components
|
PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
|
|
Weight (KG)
|
850kg
|
|
Raw material
|
Conrete
|
|
Block Type
|
Hollow Concrete Brick Machine
|
|
Keywords
|
Automatic Cement Block Moulding Machine
|
|
Color
|
Customer's Request
|
|
Pallet size
|
900x550mm
|
|
Worker
|
1-2 People
|
|
Automatic
|
Semic-Auto
|
|
Package
|
Wooden
|
|
Power
|
5.5kw
|
|
TOTAL WEIGHT
|
850
|
Why choose us
Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Packing & Delivery
Packing is nude package or plastic according to customer need
1.The whole brick machine production line equipment is mainly the full container sea shipping.
2.Before shipment, the top paint of the brick machine equipment will be tested and cleaned up, and then another paint protection will be done.
3.Before shipment, it can be wrapped with plastic film according to customer needs, and the whole brick machine is wrapped to prevent water or moisture.
4.The brick machine is then loaded into the container by a crane or forklift.
5.When loading, the reinforcing ring and special equipment in the container are used to tighten the machine to prevent damage to the brick machine caused by transportation bumps.
Project Cases
Tanzania
Peru
Indonesia
Mexico
Hot-sale in many countries: Zimbabwe, Mozambique, Zambia, South Africa, Kenya, Philippines, Indonesia, Vietnam, Uganda, Ethiopia, Tanzania, Peru, Mexico and so on.
