Quick Details
-
Brand Name:
-
OEM
-
Warranty:
-
6 Months
-
Product name:
-
New Fashion Tire Repair Vulcanizing Machine Truck Tire Tools And Equi
-
Application:
-
Tire Rapair
-
Voltage:
-
220v
-
N.W:
-
6.3KG
-
G.W:
-
7.5KG
-
Packing:
-
in carton
-
Repair Area:
-
80*80mm2
-
Repair range:
-
cars,vans tires valuum
-
Color:
-
Red/blue/ or according to your
-
Temperature Range:
-
145°C-165°C
Quick Details
-
Main Material:
-
Iron Plate
-
Size:
-
33*20*45cm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OEM
-
Warranty:
-
6 Months
-
Product name:
-
New Fashion Tire Repair Vulcanizing Machine Truck Tire Tools And Equi
-
Application:
-
Tire Rapair
-
Voltage:
-
220v
-
N.W:
-
6.3KG
-
G.W:
-
7.5KG
-
Packing:
-
in carton
-
Repair Area:
-
80*80mm2
-
Repair range:
-
cars,vans tires valuum
-
Color:
-
Red/blue/ or according to your
-
Temperature Range:
-
145°C-165°C

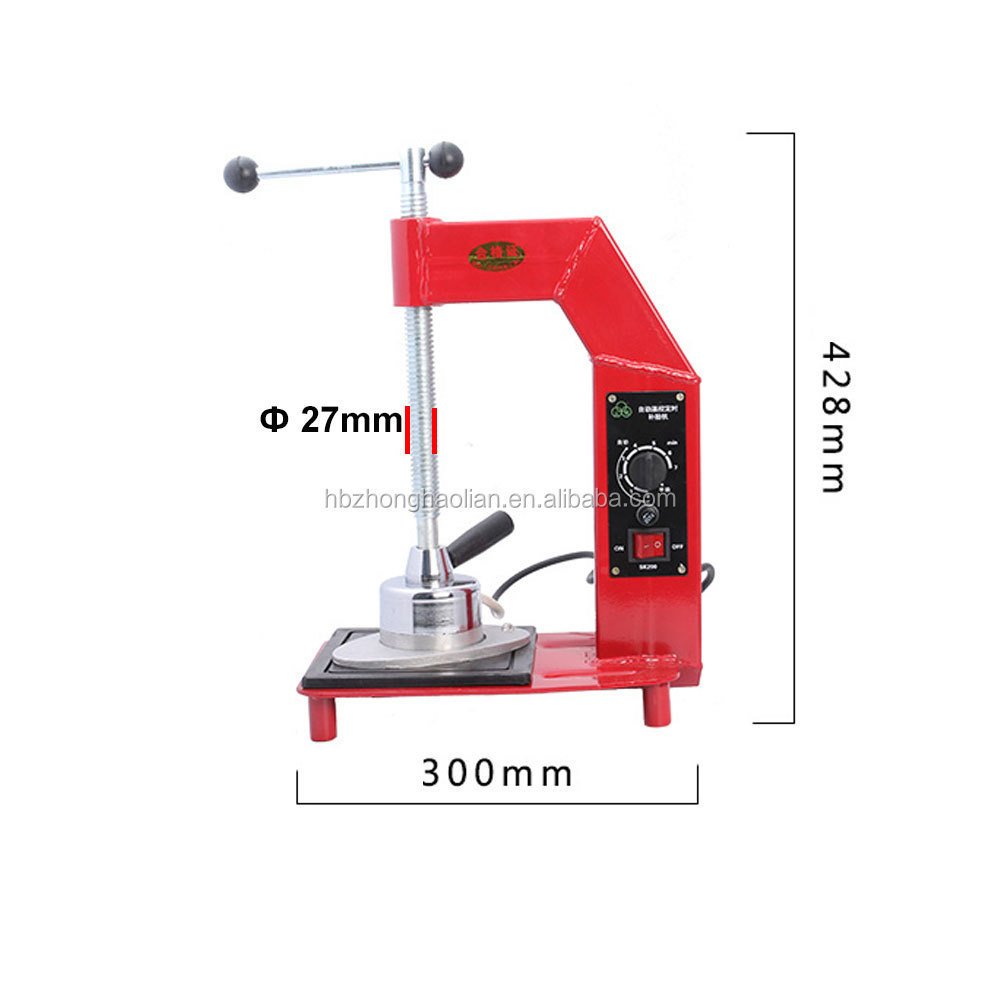

Inner Tube Vulcanizing Machine
Description:
1,Contoured inner and outer curing heads conform to a variety of tire profiles
2,Long-life Acme thread hand-wheel screw applies over 4,000-lbs. of pressure and
heat for maximum adhesion of patch to casing
3,Energy and cost efficient for lower operating costs Lightweight, self-standing design
offers portability and maximum stability
4,Doesn't require any time consuming tensioning straps Handles long sidewall repairs
5,Cures both patch and plug at the same time Curing heads can be operated
individually or simultaneously for maximum repair efficiency Constant controlled
heating elements maintain optimum temperature
| Automatic temperature control vulcanizer | |
| Input Voltage | 220V |
| Input Power | 2x500W |
| Working Pressure | 0.6 Mpa |
| Temperature Range | 145°C-165°C |
| Vulcanization time | ≤7 minutes |
| Repair Area | 80×80mm2 |
| G.W./N.W. | 7kg/6.3kg |
Product detail display
1, the tire will need to fill the wound surface treatment and clean, well marked.
2, with the wound surface grinding machine to fight hair, an area slightly larger than the wound.
3, raw rubber and gasoline will be a good tune glue (or fill with hot glue) with a brush evenly on the hair at the fight.
4. Cut a proper size of raw rubber, it will fill in the wound, if the wound is large, the raw rubber overlap it.
5, the hot head pressure on raw rubber (if possible can pad a thin layer of aluminum or iron in the raw rubber), try to align the center of the wound hot head, pressing screw, fixed tires.
6, turn on the power switch, power indicator light.
7, open timer switch, set at an appropriate position. Cold start can refer to "7", the heat start time can be a little shorter, if you do not need timing can be set on the manual gear, then the hot head to work.
8, at the end of vulcanization, tire repair machine automatically cut off power supply hot head.
9, artificial turn off the power switch, loosen the screw tire pressure, carefully remove the hot head, remove the tire, complete Tyre had
1 High quality and all specifications of prop on sale
2 Competitive price and accept OEM and drawing is accepted
3 Best serivice and fast reply within 24hours
4 Expertise questions could be answered on line
5 Esteem cooperation service attitude and expertised knowledge to help u to get the answers what u want to know
