Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
742 mm
-
Travel (Y Axis)(mm):
-
480 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
1.5kw
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
JX AUTO CNC mini cnc router
-
Voltage:
-
AC220V/50HZ
-
Dimension(L*W*H):
-
583*420*145mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
115
-
Core Components:
-
Desktop mini hobby 3D cnc wood carving router
-
Product name:
-
Mini cnc router with rotary
-
Application:
-
Wood Working Cnc Router
-
Keywords:
-
3d Wood Cutting Cnc Machine
-
Motor:
-
Step Motors
-
Inverter:
-
Delta Inverter
-
Structure:
-
Heavy Duty Steel Tube Welding
-
Support System:
-
Windows Xp/win7/win8/ Win10/linux
-
Spindle speed:
-
0-18000RPM
-
Color:
-
Optionl
-
Material:
-
Wood Plastic Acrylic Foam Polystyrene Composite
Quick Details
-
Working Table Size(mm):
-
300×400
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
742 mm
-
Travel (Y Axis)(mm):
-
480 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
1.5kw
-
Place of Origin:
-
SHANDONG
-
Brand Name:
-
JX AUTO CNC mini cnc router
-
Voltage:
-
AC220V/50HZ
-
Dimension(L*W*H):
-
583*420*145mm
-
Power (kW):
-
1.5
-
Weight (KG):
-
115
-
Core Components:
-
Desktop mini hobby 3D cnc wood carving router
-
Product name:
-
Mini cnc router with rotary
-
Application:
-
Wood Working Cnc Router
-
Keywords:
-
3d Wood Cutting Cnc Machine
-
Motor:
-
Step Motors
-
Inverter:
-
Delta Inverter
-
Structure:
-
Heavy Duty Steel Tube Welding
-
Support System:
-
Windows Xp/win7/win8/ Win10/linux
-
Spindle speed:
-
0-18000RPM
-
Color:
-
Optionl
-
Material:
-
Wood Plastic Acrylic Foam Polystyrene Composite
Products Description
|

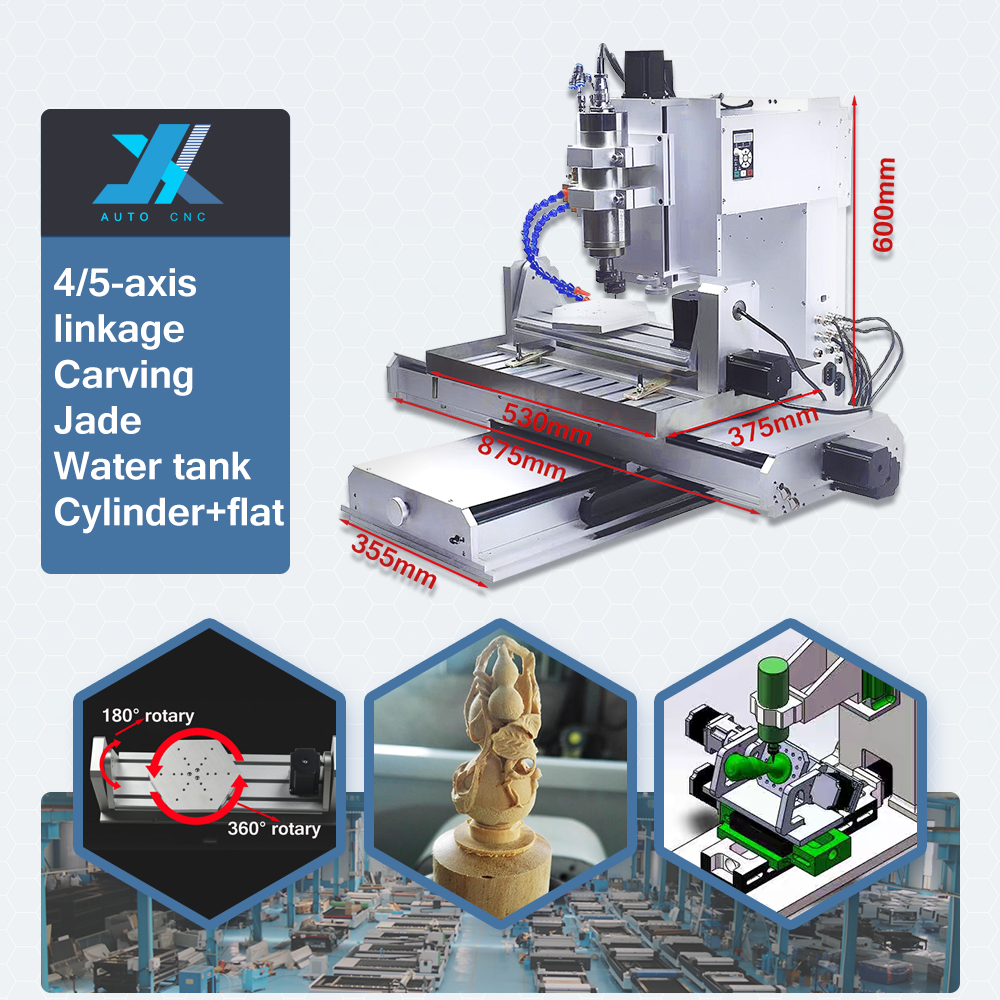

SPECIFICATIONS CNC6040 DIY 5 Axis CNC Router
|
|
|
|
Effective working travel
|
583(X)mm*420(Y)mm*145(Z)mm
|
|
|
Shape dimension
|
855*875*600mm
|
|
|
Work table size
|
742*480mm
|
|
|
Frame material
|
Aluminum aloy 6063 and 6061 the unique and dedicated mold extrusion profiles.
|
|
|
Acceptable material thickness
|
<=150mm
|
|
|
Driving units x/y/z axis
|
JX AUTO CNC 1605-DFC7-PO ball screw
|
|
|
X axis
|
Dia. 20mm chrome plate shafts
|
|
|
Y axis
|
Dia. 16mm chrome plate shafts
|
|
|
Z axis
|
Dia. 13mm chrome plate shafts
|
|
|
A axis (rotating shaft)
|
Unlimited rotation angle 360 degree
|
|
|
B axis (tilting axis)
|
Rotation angle +30/-90
|
|
|
5 axis working area
|
155(X)mm*155(Y)mm*105(Z)mm 306degree 30-90degree Diameter180mm
|
|
|
Stepping motor type
|
57 two-phase 3A 180N.cm
|
|
|
Spindle motor
|
New 1500/2200w Water cooling spindle 24000 RPM
|
|
|
Spindle collet
|
ER-20 1-13mm
|
|
|
Repeated accuracy
|
0.05mm
|
|
|
Spindle accuracy
|
0.03mm
|
|
|
Software environment
|
WinXP/7/8/10
|
|
|
Maximum speed
|
0-4000mm/min
|
|
|
Computer connection
|
USB port
|
|
|
Code file format
|
x-t /stp/igs/catia/prt/Model format
|
|
|
Protection
|
Emergency stop button
|
|
|
Working voltage
|
AC 220V/110V
|
|
|
Package size
|
wooden box package: 109*92*58cm
|
|
|
Gross weight
|
115kg
|
|
