Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Aohong
-
Model Number:
-
SQGS-01
-
Material:
-
99.9% Pure Quartz
-
MOQ:
-
1pieces
-
Soften point:
-
1730℃
-
Annealing Point:
-
1250℃
-
Surface:
-
Polished Treatment
-
Density:
-
2.3g/cm3
-
Hardness:
-
Morse 6.5
-
Working Temparature:
-
1150
-
End treatment:
-
Cutting or Fire polished
-
Thickness tolerance:
-
+- 0.2mm
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
Sight glass
-
Thickness:
-
1-100mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Aohong
-
Model Number:
-
SQGS-01
-
Material:
-
99.9% Pure Quartz
-
MOQ:
-
1pieces
-
Soften point:
-
1730℃
-
Annealing Point:
-
1250℃
-
Surface:
-
Polished Treatment
-
Density:
-
2.3g/cm3
-
Hardness:
-
Morse 6.5
-
Working Temparature:
-
1150
-
End treatment:
-
Cutting or Fire polished
-
Thickness tolerance:
-
+- 0.2mm
Product Description

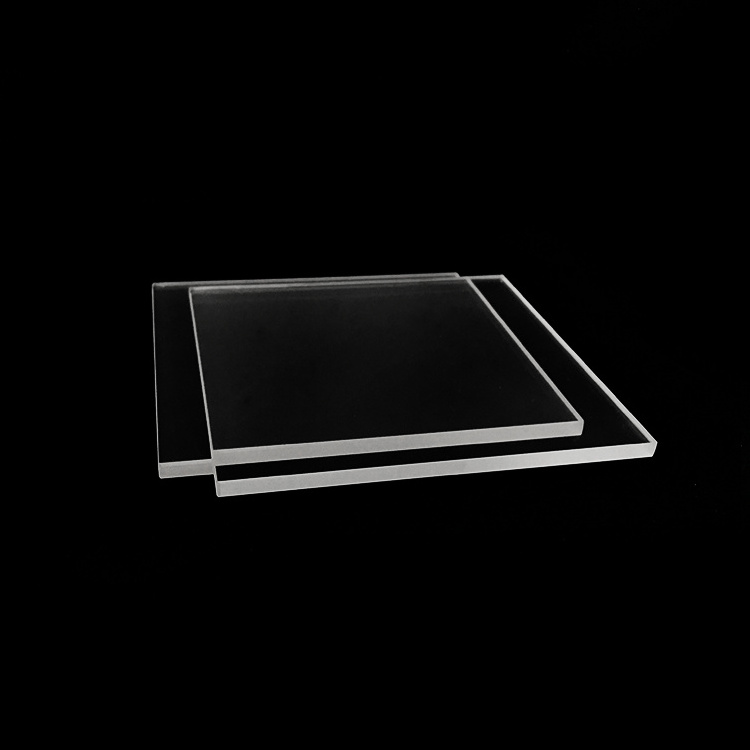

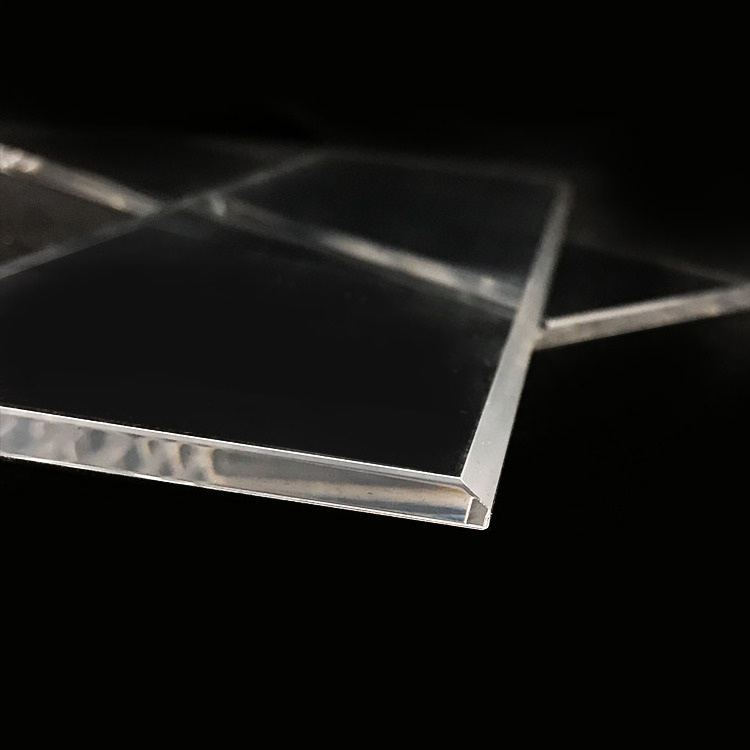

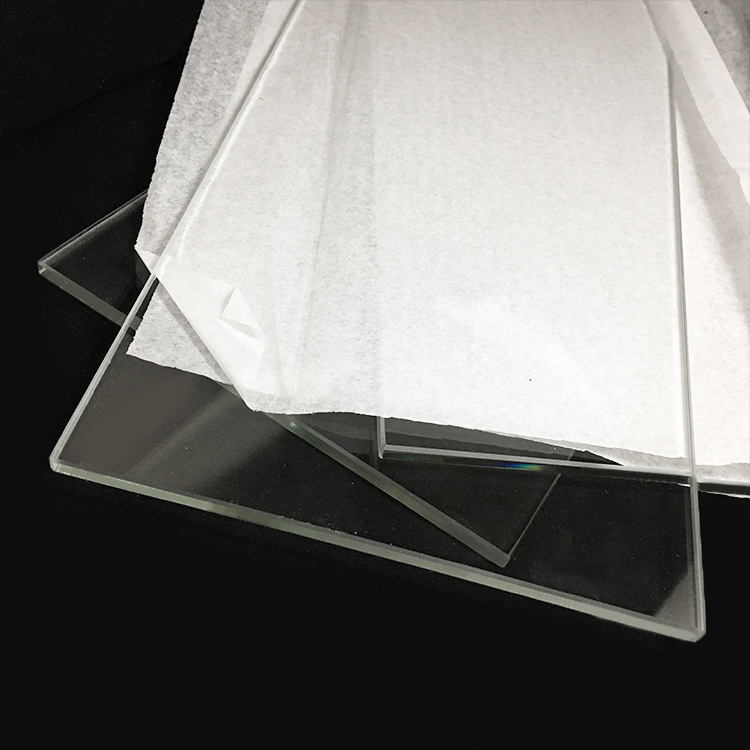

Fused Clear Silica Quartz Glass Plate
Advantage of Quartz Glass Plate/Sheet/disc:
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.
1)High purity :SiO2> 99.99%.
2)Operating Temperature: 1250℃; SoftenTemperature: 1730℃ .
3)Excellent visual and chemical performance:acid-resistance,alkali resistance,Good thermal stability
4)Health care and environmental protection.
5)No air bubble and no air line.
6)Excellent electrical insulator.
Specification
|
Mechenical Behavior
|
Standard Values
|
|
Density
|
2.2g/cm³
|
|
Compressive Strength
|
100Mpa
|
|
Young's Modulus
|
7200Mpa
|
|
Modulus of Rigidity
|
3100Mpa
|
|
Mohs Hardness
|
5.5~6.5
|
|
Transformation Point
|
1280℃
|
|
Softening Point
|
1780℃
|
|
Annealing Point
|
1250℃
|
|
Specific Heat(20~350℃)
|
670J/kg.℃
|
|
Thermal Conductivity(20℃)
|
1.4W/m.℃
|
|
Index of Refraction
|
1.4585
|
|
Thermal Processing Temperature
|
1750~2050℃
|
|
Short-term Use Temperature
|
1300℃
|
|
Long-term Use Temperature
|
1100℃
|
|
Material
|
Silicon Dioxide(Natural Quartz)
|
|
Surface
|
No Air Bubble, No Process
|
|
Strain
|
1270℃ Fused the Quartz Glass Brick
|
|
PPM
|
Controlled 10/20/100 PPM
|
|
Thickness
|
0.5mm~40mm
|
Company Profie
Hengshui Aohong Techology Co., Ltd. is a modern high-technology manufacturing enterprise specialized in production and sales of glass products with an experience of more than twenty years.
Our own brand "AOHONG" products include: High borosilicate Reflex gauge glass, High borosilicate Transparent gaugeglass,Rectangular glass, Circular glass, Glass tubes and rods, Lab glassware, Glass road stud, and Bubble level, etc.
Our own brand "AOHONG" products include: High borosilicate Reflex gauge glass, High borosilicate Transparent gaugeglass,Rectangular glass, Circular glass, Glass tubes and rods, Lab glassware, Glass road stud, and Bubble level, etc.
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei
Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also
ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is
open for discussion.
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei
Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also
ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is
open for discussion.
