Quick Details
-
Brand Name:
-
3C-Link
-
Use:
-
FTTH
-
Product name:
-
3C-SFP0802G switch 8 port sfp
-
UTP Connector:
-
2 RJ-45
-
SFP slot data:
-
1000Mbps
-
Cable Type:
-
Cat.5 or 6 UTP
-
Switching capacity:
-
20G
-
Access mode:
-
10/100/1000Mbps
-
Power Requirement:
-
AC220V(100-240V),50~60Hz
-
Dimensions:
-
37*130*110*mm
Quick Details
-
Type:
-
media converter, Gigabit ethernet fiber switch
-
Model Number:
-
3C-SFP0802G
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3C-Link
-
Use:
-
FTTH
-
Product name:
-
3C-SFP0802G switch 8 port sfp
-
UTP Connector:
-
2 RJ-45
-
SFP slot data:
-
1000Mbps
-
Cable Type:
-
Cat.5 or 6 UTP
-
Switching capacity:
-
20G
-
Access mode:
-
10/100/1000Mbps
-
Power Requirement:
-
AC220V(100-240V),50~60Hz
-
Dimensions:
-
37*130*110*mm

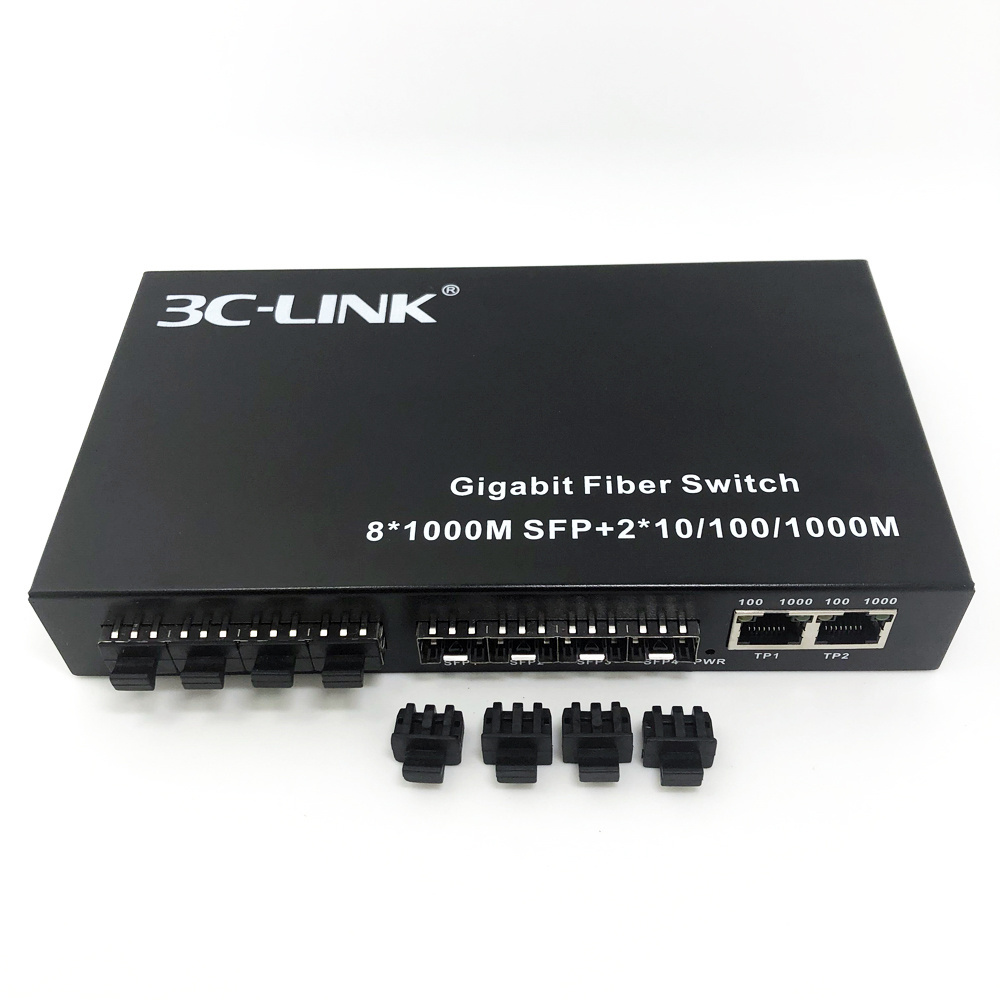

Switch 8 port SFP slots+ 2 X 10/100/1000 Fiber Media Converter for different 1000M SFP module
3C-SFP0802G
3C -SFP0802G Gigabit Ethernet Switch provides the power of switching with the ease of use and affordability of traditional shared hubs. Truly Plug-and-Play, 3c-Link 3C-SFP0802G Ethernet Switch automatically learns about the devices on your network and configures itself without complicated setup procedures. Dramatic improvements in performance can easily be seen, with speeds of up to 200Mbps per port. Since full bandwidth capability is achieved on each individual port, the congestion problems of shared hubs are easily avoided.
Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
Ideal for Integrating Your 2 10/100/1000 UTP Ports and 8 SFP 1000Base-FX Provide Dedicated Bandwidth in Half or Full-Duplex Modes
Compatible with All Major Network Operating Systems
Advanced Store-and-Forward Packet Switching Optimizes Data Transfers
Full wire-speed layer 2 switch on all ports
6M Buffer Memory
Internal 1k MAC address table per port
Auto address learning
Auto address aging (default 300 Seconds)
Supports both Full/Half duplex ports
Flow control capabilities
Automatic Transmit delay control capabilities and maximum delay guarantee
|
Standards and Protocols Supported |
IEEE802.3z , IEEE802.3u , IEEE802.3x IEEE802.1Q |
|
Wavelength |
850nm/1310nm/1550nm |
|
Distance |
Dual Fiber MM : 2km Dual Fiber SM : 20/40/60/80/ 100km Single Fiber SM : 20/40/60/ 80km |
|
MAC |
1K |
|
CPU |
150Mhz or above |
|
Memory |
16MB or above |
|
Input Voltage Range |
9-15V/DC |
|
Consumption |
Max.6W |
|
Operating Temperature |
0 ℃ ~ 45 ℃ |
|
Storage Temperature |
-40 ℃ ~ 70 ℃ |
|
Operating Humidity |
10%~90% RH no condensing |
|
Storage Humidity |
5%~90% RH no condensing |
How do you achieve that?
There's a 2 steps:
1. First, determine your wavelength and module Distance
2. Second, all Module should 1.25G, Single Fiber, Dual Fiber, CWDM, DWDM Gigabit SFP Transceiver avaiable.
LED Description
There are 9 LED At Front View of 8 port Gigabit Ethernet Switch.:
|
1000 |
Lit when TP speed is 1000Mbps |
|
Act |
Lit when TP connection is good. Blinks when TP data is transmitting. |
|
SFPn |
Lit when SFPn connection is good or when SFPn data is transmitting. |
|
PWR |
Lit when +5V power is coming up. |
SFP Module Fiber Optic Technical
|
|
1000Base-SX |
1000Base-LX-20 |
|
Connector type |
LC |
LC |
|
Fiber type |
Multi-mode |
Single-mode |
|
Wavelength |
850nm |
1310nm |
|
Max Distance |
62.5µm: 224m 50µm: 550m |
20Km |
|
Min TX PWR |
-12.0dBm |
-11.0dBm |
|
Max TX PWR |
-6.0dBm |
-5.0dBm |
|
Sensitivity |
< -19dBm |
< -22dBm |
|
Link Budget |
7.0dBm |
11.0dBm |
Single Fiber Technical specification
|
|
1000Base-LX-20 |
1000Base-LX-40 |
|
Connector type |
LC/SC |
LC/SC |
|
Fiber type |
Single-mode |
Single-mode |
|
Wavelength |
1310/1550nm |
1310/1550nm |
|
Max Distance |
20Km |
40Km |
|
Min TX PWR |
-10.0dBm |
-5.0/-10dBm |
|
Max TX PWR |
-4.0dBm |
0dBm |
|
Sensitivity |
< -22dBm |
< -25dBm |
|
Link Budget |
12.0dBm |
20/15dBm |
|
|
1000Base-LX-60 |
1000Base-LX-80 |
|
Connector type |
LC/SC |
LC/SC |
|
Fiber type |
Single-mode |
Single-mode |
|
Wavelength |
1490/1550nm |
1490/1550nm |
|
Max Distance |
60Km |
80Km |
|
Min TX PWR |
-6.0dBm |
-1dBm |
|
Max TX PWR |
0dBm |
3dBm |
|
Sensitivity |
-25dBm |
< -26dBm |
|
Link Budget |
19dBm |
25.0dBm |
