- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xufeng
-
Model Number:
-
XFGYM-01
-
Opening Method:
-
Automatic
-
Size:
-
Max.11800mm x 500mm
-
Steel Sheet Thickness:
-
0.326mm, 0.45mm
-
Door Leaf Thickness:
-
40/60/80mm
-
Production Experience:
-
30+ Years
-
Certificate:
-
ISO9001;CE
-
Open Style:
-
Standard Overhead Lift, High Lift, Vertical Lift
-
Hardware:
-
Galvanized Steel Material (Powder Coating)
-
MOQ:
-
2 Square Meters
-
Packaging Details:
-
Carton
-
Delivery Detail:
-
15-25 days
Quick Details
-
Door Material:
-
Steel
-
Feature:
-
Thermal Insulation
-
Main Material:
-
Plastic-Steel
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xufeng
-
Model Number:
-
XFGYM-01
-
Opening Method:
-
Automatic
-
Size:
-
Max.11800mm x 500mm
-
Steel Sheet Thickness:
-
0.326mm, 0.45mm
-
Door Leaf Thickness:
-
40/60/80mm
-
Production Experience:
-
30+ Years
-
Certificate:
-
ISO9001;CE
-
Open Style:
-
Standard Overhead Lift, High Lift, Vertical Lift
-
Hardware:
-
Galvanized Steel Material (Powder Coating)
-
MOQ:
-
2 Square Meters
-
Packaging Details:
-
Carton
-
Delivery Detail:
-
15-25 days
|

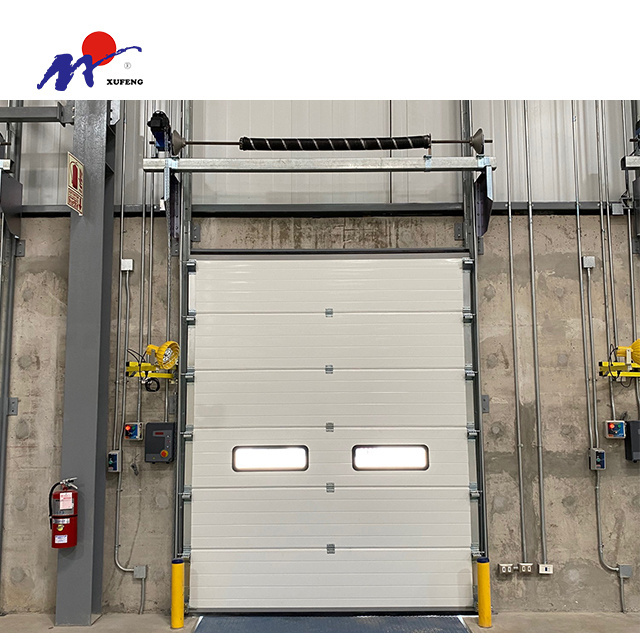

Product Type |
Insulation industrial door |
|
Application |
Industrial ware house, Logistic warehouse |
|
Open Style |
Standard overhead lift, High lift, Vertical lift |
|
Including |
2" galvanised hardware, 3" galvanised hardware, Torsion spring |
|
Safety optional |
Spring broken device, Cable broken device, Photocell, Radar, Geomagnetic, Pull rope, Wall switch |
|
Material |
Glavanised steel, PU foam ( DOW) CFC free,PE protective film |
|
Steel Thickness |
0.326mm, 0.45mm thickness |
|
|
1.0mm thickness reinforcement sheet |
|
Panel Color |
Standard: RAL9002 Offwhite |
|
Panel Design |
Finger-protection |
|
Panel Weight |
9.2kg/m2-11.2kg/m2 |
|
Thickness |
40+2mm |
|
Density |
45±2kg/m3 |
|
Max. Length |
11.8m for 40HQ |
|
Panel width |
500mm |
|
Surface treatment |
Finished |
|
|
Embossed orange peel |
|
Opener |
Side industrial motor |
|
Voltage |
110V/220V/380V |
|
Warranty |
3-5years |
|
Certificate |
ISO9001:2015 CE TUV |
|
Packing |
Exported standard carton |
|
Port |
Shanghai port |
|
Devliery time |
15-25days |
Can I Have More Styles and More Color?
Of Course, Please Click Here and Contact Our Advisor.
Xufeng Door,
professional door solution supplier since 1988, was founded by Mr. Xufeng Yang. By the year 2000, we became the first factory in China producing sectional insulated garage door.
By 2018, Xufeng's
30
years anniversary, we were awarded as
NATIONAL EXPORT DEMAONSTRATION BASE OF GARAGE DOOR & INDUSTRIAL DOOR
by CCMSA. As the leading company in this field in China, our customers are from over 30 countries all over Europe, North and South America, East Asia, Africa^ like CASTCORMA, OBI, LORRYMERILIN, Lowe's and etc.
Q1:What is your MOQ?
Re:Our automatic continous line required 200m.Also accept sample order
Q2:What is the delivery time?
Re:About 15-30days, need check stocked raw material spec is enough or not.
Q3:What is the Max. available size of the panels?
Re:The max. length of panel can be 11.8m. Standard width 500mm.
Q4:What about your package?
Re:Carton box for full container order, Polywood box for sample order
Q5:What kind of payment terms would you accept?
Re:Usually we accept T/T, L/C, Western Union, Credit Card etc. If you prefer other payment terms, please feel free to discuss with us.
Q6:We want to be your agent of our area. How to apply for this?
Re:Please send your idea and your profile to us. Let's cooperate.
Q7:Can I get a sample to check your quality?
Re:Sample panel is available.
Q8:How can I know the price exactly?
Re:Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q9:Is it difficult to install your door?
Re:Easy to install. We have manual book and installation video for your reference.We also provide support for training your staff in our factory or let our engineer go to your city provide techinical support.
Q10:Do you produce other products? What about your export experience?
Re. Except for sectional garage door, we also produce industrial door, roll shutter door, high speed door, hangar door etc.We had export since 2003 year, we have cooperated with Low'es, RONA etc.Had designed and produced for Maldives airport. Mongolia airport, Nepal airport, Romania airport etc.
