THREE STAGE FILTER SYSTEM
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220~415V
-
Power:
-
12-100KW
-
Dimension(L*W*H):
-
1600*1550*1800
-
Weight:
-
1500 kg
-
Product name:
-
portable oil water separator
-
Function:
-
Vacuum Dehydration,Degassing, Impurities Particles
-
Capacity:
-
10-300L/min
-
Advantages:
-
Defoaming with high vacuum
-
Suitable Oil:
-
diesel, kerosene, coal oil, lube oil
-
Working temperature:
-
45~80 ℃,Adjustable
-
Power Supply:
-
380V -415V,50Hz 3Phase(customizable)
-
Work Noise:
-
≤75dB(A)
-
Vacuum degree:
-
-0.08~-0.096 Mpa
-
Filtration classification:
-
5um
Quick Details
-
Flow:
-
10-300 L/MIN
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Kaiqian
-
Voltage:
-
220~415V
-
Power:
-
12-100KW
-
Dimension(L*W*H):
-
1600*1550*1800
-
Weight:
-
1500 kg
-
Product name:
-
portable oil water separator
-
Function:
-
Vacuum Dehydration,Degassing, Impurities Particles
-
Capacity:
-
10-300L/min
-
Advantages:
-
Defoaming with high vacuum
-
Suitable Oil:
-
diesel, kerosene, coal oil, lube oil
-
Working temperature:
-
45~80 ℃,Adjustable
-
Power Supply:
-
380V -415V,50Hz 3Phase(customizable)
-
Work Noise:
-
≤75dB(A)
-
Vacuum degree:
-
-0.08~-0.096 Mpa
-
Filtration classification:
-
5um
Product Overview
JJS-JL

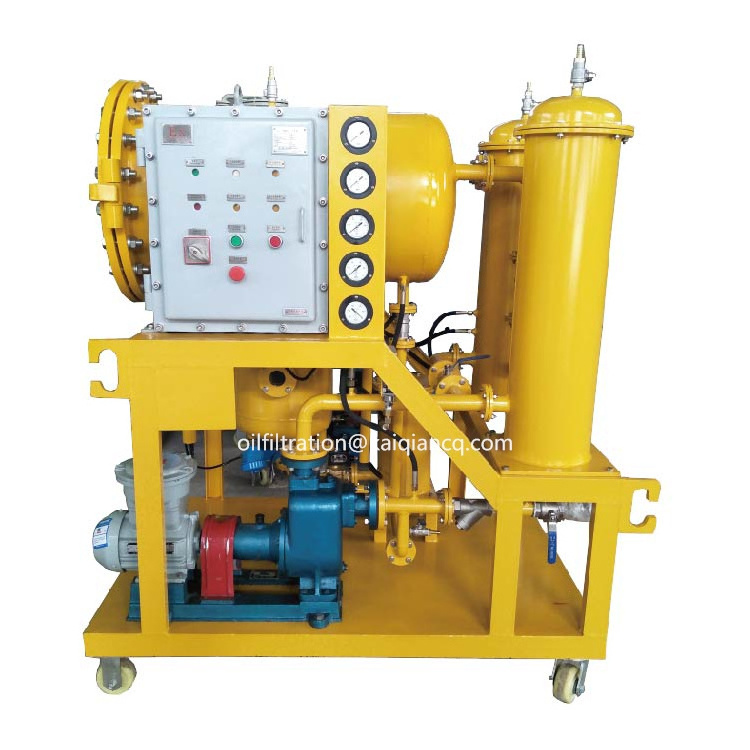

Coalescence Dehydrating Used Oil Purifier Machine Oil Water Separation Systems Fuel Oil Purifier Machine
Usage
Coalescer oil purification system
application on cleaning for diesel, coal oil, lube oil hydraulic oil and other oil purification.
Removal the moisture and impurities the oil and promote the cleanliness on overall system.
Advantage of coalescing purifier machine for macro-molecular water; removing moisture by heating is not needed; different liquid with different surface tension and when liquid flows through the hole, the smaller the surface tension, the faster the transmission rate.
2.Principles
When the different mixed liquid flow into the separator and enter into the coalescing filter element firstly, the filter with multi-layer filter media and the hole diameter is increased layer by layer. Due to the difference in surface tension, the oil can go through the filter layer quickly but the water goes much slower; besides the coalescence filter take use of the hydrophilic material, fine moisture droplets are adsorbed on the surface of the filter layer then cause the coalescence of water droplets. water droplets go through the hole by the function of kinetic energy, and becomes the large water droplets gradually, and fall down under the function of gravity, then separating from the oil, the oil ends in the coalescence filter element is still smaller moisture included, and it moves forward to separation filter elements by Inertia. The separation filter element is made of a special hydrophobic material, the smaller moisture will be blocked when the oil go through the separation filter, and oil go through the separation filter and released from the outlet.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Item
|
Unit
|
Treatment parameter
|
Test method
|
|
Mechanical impurities
|
％
|
None
|
GB/T511
|
|
Water
|
Mg/L
|
≤80ppm
|
GB/T7600
|
|
Acid value
|
mgkoH/g
|
≤0.3
|
GB/T264
|
|
Cleanness-degree
|
Grade
|
6-7
|
NAS1638
|
PRODUCT CONFIGURATION
Heater systems
control cabinet and filters
pumps
Features
Before & After
Before & After
Before & After
Successful Project
FAQ
Q1：What is the functions for
Coalescence Dehydrating Used Oil Purifier Machine
?
A1：It is used for remove water and impurities from diesel, kerosene and other light oils
Q2: Is there any consumable element by using this machine?
A2: No any consumable element here.
Q3: What is the application for this oil water separator?
A3: It can used for diesel, kerosene and other light oils
Q4: What's the capacity of this oil water separator?
A4: This oil water separator have flow capacity can be customized according to customer requirements
Q5: Who can i get contact for more infos？
Email:oilfiltration@kaiqiancq.com ;
