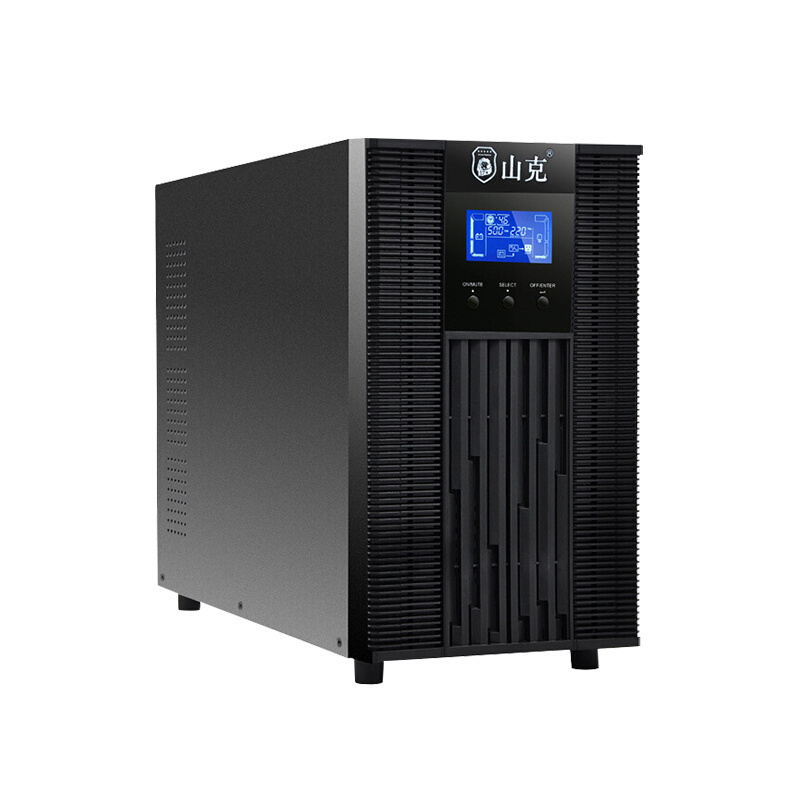

SKE UPS Power 220v 50hz/60hz 2400W Online UPS 3KVA without Battery

SKE UPS Power 220v 50hz/60hz 2400W Online UPS 3KVA without Battery

FOB Reference Price: Get Latest Price

≥10 Sets

US $145

≥50 Sets

US $136

≥200 Sets

US $130

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: GH11 3KVAL

Weight:: 7.4KG

Product name:: UPS 3kva

Frequency factor:: ≥0.99

Inverter to Bypass:: 4 ms (Typical)

waveform:: pure sine wave

transfer time:: Zero

max charge current:: 1A

nverter to Bypass:: 4 ms (Typical)

Voltage Regulation:: ± 1%

warrenty:: 12 months

Size:: 397*145*220mm

Quick Details

Warranty:: 1 year

Place of Origin:: Guangdong, China

Brand Name:: SKE

Model Number:: GH11 3KVAL

Weight:: 7.4KG

Product name:: UPS 3kva

Frequency factor:: ≥0.99

Inverter to Bypass:: 4 ms (Typical)

waveform:: pure sine wave

transfer time:: Zero

max charge current:: 1A

nverter to Bypass:: 4 ms (Typical)

Voltage Regulation:: ± 1%

warrenty:: 12 months

Size:: 397*145*220mm

SKE UPS Power 220v 50hz/60hz 2400W Online UPS 3KVA without Battery

Product Description

True double-conversion
Microprocessor control optimizes reliability
Input power factor correction
Output power factor 0.8
Wide input voltage (110 V – 300 V)
Converter mode available
ECO mode for energy saving
Generator compatible
Charger capacity expansion to 6A for long-run models
Smart SNMP works well with either USB or RS-232 together
Comprehensive display allows easy monitoring and access of UPS status

MODEL		GH11-1K (L)	GH11-2K (L)	GH11-3K (L)
PHASE		Single phase with ground
CAPACITY		1000 VA / 800 W	2000 VA / 1600 W	3000 VA / 2400 W
INPUT
Nominal Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range		55-145 VAC or 110-300 VAC
Frequency Range		40Hz ~ 70 Hz
Power Factor		≥ 0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		47~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode)		50 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio		3:1
Harmonic Distortion		≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-linear Load)
Transfer Time	AC to DC	Zero
	Inverter to Bypass	4 ms (Typical)
Waveform (Batt. Mode)		Pure Sinewave
EFFICIENCY
To AC Mode		88%	89%	90%
To Battery Mode		83%	87%	88%
BATTERY
Standard model	Battery type	12V9AH
	Quantity		4	6
	Standard charging time	4 hours charge to 90%
	max charge current	1A
	Charging voltage	27.3VDC±1%	82.1VDC±1%
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers	3	6	8
	Charging Current (max.)	1.0A/2.0A/4.0A/6.0 A
	Charging Voltage	41.0VDC ± 1%	82.1 VDC ±1%	109.4VDC ±1%
INDICATORS
LCD		Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continously sounding
PHYSICAL
Standard models	Dimension	282145220	397145220	419190318
	Net weight(kgs)	9.3	18.6	30
Long-run Model	Dimension	282145220	397145220
	Net Weight (kgs)	4.6	6.8	7.4

Our Services

1. OEM&ODM services acceptable.

2. 1% pcb board provided .

3. Lots of cooperated agent for shipping by sea or by air.

4. 1year warrenty , if it is quality problem , we will provide the parts for free .

Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.
