Quick Details
-
Brand Name:
-
Elaiter
-
Model Number:
-
ELT-SP
-
Application:
-
Refractory
-
Dimensions:
-
As your request and drawing
-
Working Temperature:
-
1100/1260 /1350 /1430
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.085-0.18w/(m.k)
-
Shrinkage (1800℉, 3h):
-
3
-
Size:
-
As your request and drawing
-
Certificate:
-
ISO9001:2008
Quick Details
-
Ultimate Strength (≥ MPa):
-
0.5
-
Density (kg/m³ ):
-
128
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Elaiter
-
Model Number:
-
ELT-SP
-
Application:
-
Refractory
-
Dimensions:
-
As your request and drawing
-
Working Temperature:
-
1100/1260 /1350 /1430
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.085-0.18w/(m.k)
-
Shrinkage (1800℉, 3h):
-
3
-
Size:
-
As your request and drawing
-
Certificate:
-
ISO9001:2008

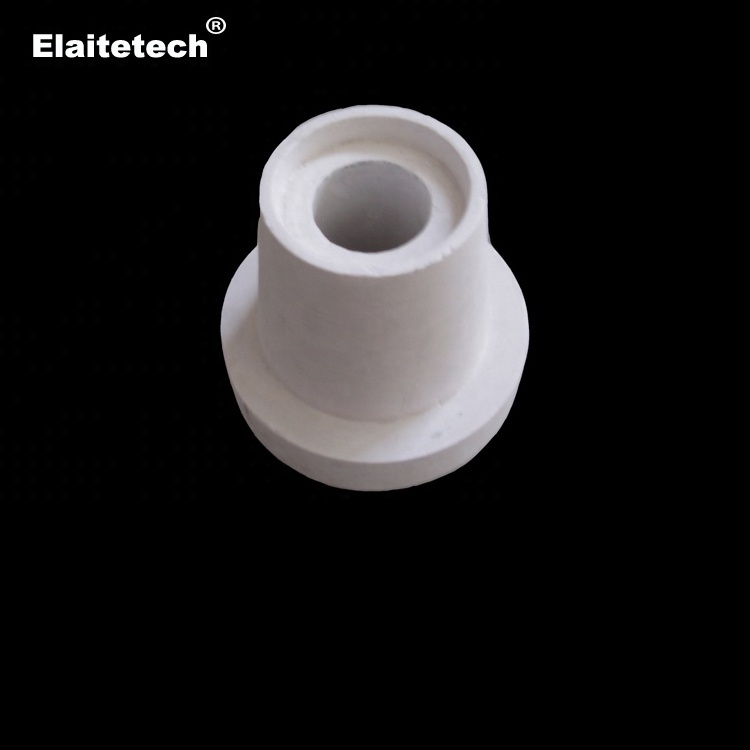

Ceramic fiber vacuum formed special shaped products takes high quality ceramic fibers as the main raw materials, then add some organic and inorganic binder, through vacuum forming process, to be made into various shapes high strength ceramic fiber products.
We produce ceramic fiber vacuum formed special shaped products according to the customer's design and requirements, using dedicated mold and selecting different binders and additives, to deliver each product in various shape and size, to meet the special needs of the some specific industrial sector.
Vacuum formed special shaped products are divided into: common, standard, high pure, high aluminum and zirconium type ceramic fiber products.
1. Accurate dimension.
2. Excellent chemical stability and thermal shock resistance.
3. Excellent resistance to abrasion and anti-stripping.
4. Excellent resistance to wetting by molten metal.
5. Excellent sound absorption capability.
6. Excellent wind corrosion resistance, long service life.
7. Good fire-resistance, high thermal insulation.
8. High strength and excellent machinability.
9. Low heat storage, low thermal conductivity.
10. Non-brittle material, good elasticity.
1. High temperature fire insulation.
2. High temperature gasket.
3. High temperature pipe wall lining.
4. Industrial furnace burner brick.
5. Industrial furnace wall lining, door and roof seals.
6. Industrial kilns observation hole, insert hole of thermometer.
7. Molten metal delivery system.
8. Shipping, aviation, precision industrial equipment.
9. Special shaped ceramic fiber insulating shapes application.
10. Sump and launder for aluminum product industry.
11. Thermal insulating material of heat and electrical equipment.
|
Item |
Common grade |
Standard grade |
High pure grade |
High alumina grade |
Zirconium grade |
|
Color |
White |
Pure white |
Pure white |
Pure white |
Pure white |
|
Classification Temp. |
1100 °C |
1260 °C |
1260 °C |
1400 °C |
1430 °C |
|
Working Temp. |
950 °C |
1000 °C |
1100 °C |
1200 °C |
1350 °C |
|
Density (kg/m 3 ) |
300-450 |
300-450 |
300-450 |
300-450 |
300-450 |
|
Permanent linear change on heating (%) |
950°C×24h ≤-4 |
1000°C×24h ≤-3 |
1100°C×24h ≤-3 |
1200°C×24h ≤-3 |
1350°C×24h ≤-3 |
|
Theoretic heat conductive coefficient (W/m.k) |
0.13(600°C) 0.20(800°C) |
0.13(800°C) 0.19(1000°C) |
0.13(800°C) 0.19(1000°C) |
0.12(800°C) 0.20(1000°C) |
0.16(800°C) 0.20(1000°C) |
|
Tensile strength |
0.5 MPa |
0.5 MPa |
0.5 MPa |
0.5 MPa |
0.5 MPa |
|
AL 2 O 3 |
44-45% |
45-46% |
47-49% |
52-55% |
39-40% |
|
AL 2 O 3 + SiO 2 |
96% |
97% |
99% |
99% |
- |
|
ZrO 2 |
- |
- |
- |
- |
15-17% |
|
AL 2 O 3 +SiO 2 +ZrO 2 |
- |
- |
- |
- |
99% |
|
Fe 2 O 3 |
≤1.2% |
≤1.0% |
≤0.2% |
≤0.2% |
≤0.2% |
|
Na 2 O+K 2 O |
≤0.5% |
≤0.5% |
≤0.2% |
≤0.2% |
≤0.2% |
We can produce all kinds of vacuum formed ceramic fiber products for casting aluminum and other non-ferrous metals.
|
Vacuum Formed Ceramic Fiber Product Series |
||
|
Billet casting thimble |
Tap out cone |
Distribution plate |
|
Float brick |
Dosing tube |
Filter box |
|
Casting ladle |
Sprue cup & bush |
Pouring box & Pouring basket |
|
Crystallizer |
Flow control bar |
Launder |
|
Dams board |
Flow Tube |
Riser sleeve |
|
Riser tube |
Sample spoon |
Observation hole |
|
Foundry hot top ring |
Caster tip |
Transition plate |
