- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
3680*4000*4000
-
Weight:
-
25000
-
Rubber Vulcanizing:
-
Continuous Production
-
Power(W):
-
3KW
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE,ISO
-
Marketing Type:
-
New Product 2020
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MIXER
-
Voltage:
-
220V/380V/415V/440V
-
Dimension(L*W*H):
-
3680*4000*4000
-
Weight:
-
25000
-
Rubber Vulcanizing:
-
Continuous Production
-
Power(W):
-
3KW
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE,ISO
-
Marketing Type:
-
New Product 2020

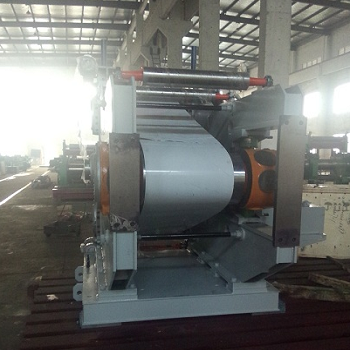

Rotary Curing Press (Drums type Curing Press)
Rotocure Press is used to produce rubber sheet, rubberized fabric,coated fabric,light duty rubber conveyor belt, rubber sheet &film
Lamination with continuous curing production. ( Also according to customer’s technical requirement, we can make specially customized curing machine.)
The machine includes main machine,infrared heating device,Oil heating controller,
unwinding&winding up device,electric system and control cabinet.
|
Model |
DLG-710*1450 |
DLG-1000*1450 |
DLG-1250*1600 |
DLG-1250*1750 |
DLG-1500*1750 |
|
Drum diameter (mm) |
710 |
1000 |
1250 |
1250 |
1500 |
|
Working width (mm) |
1450 |
1450 |
1600 |
1750 |
1750 |
|
Steel belt force N |
38*10 4 |
38*10 4 |
38*10 4 |
38*10 4 |
38*10 4 |
|
Liner speed (mm) |
0.04~1.12 |
0.3~2.0 |
0.3~1.5 |
0.3~1.5 |
0.3~1.5 |
|
Curing pressure (MPa) |
0.5 |
0.5 |
0.6 |
0.6 |
0.6 |
|
Steam pressure used (MPa) |
0.6 |
0.6 |
1 |
1 |
1 |
|
Main motor power (kw) |
3 |
3 |
3 |
3 |
3 |
|
Welding power (kw) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
|
Overall dimension (mm) |
3170*2400*2600 |
3170*2400*2600 |
3680*4000*4000 |
3680*4150*4000 |
3680*5000*5000 |
|
Weight (t) |
20 |
25 |
28 |
30 |
32 |
