Quick Details
-
Voltage:
-
110v -380v
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
0.25 KG
-
Product name:
-
gold kacha centrifugal concentrator collector separator machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feed size:
-
≤ 6mm
-
Delivery:
-
in stock
-
Recovery ratio:
-
High recovery rate.99% gold recovery rate
-
Usage:
-
METAL MINING ORE
-
technology:
-
South Africian engineer mining experience support
-
Inlet pressure Range (MPa):
-
0.04-0.6
-
Installation:
-
Engineer Guide
-
Finished ore capacity:
-
60kg/time
Quick Details
-
Production Capacity:
-
1-100 tons / hour
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuxiang
-
Voltage:
-
110v -380v
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
0.25 KG
-
Product name:
-
gold kacha centrifugal concentrator collector separator machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Feed size:
-
≤ 6mm
-
Delivery:
-
in stock
-
Recovery ratio:
-
High recovery rate.99% gold recovery rate
-
Usage:
-
METAL MINING ORE
-
technology:
-
South Africian engineer mining experience support
-
Inlet pressure Range (MPa):
-
0.04-0.6
-
Installation:
-
Engineer Guide
-
Finished ore capacity:
-
60kg/time

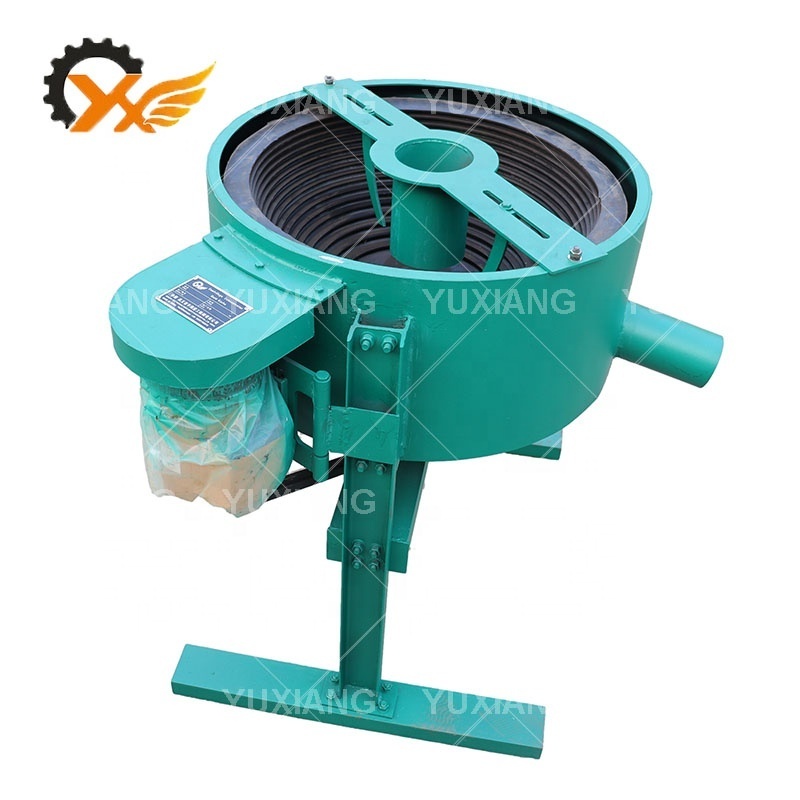

Hot sale knelson falcon gold kacha centrifugal concentrator collector separator machine for alluvial placer gold
Brief description of the centrifugal concentrator :
|
The Gold kacha is a new type of gravity concentration equipment for concentrating gold and other high density minerals to
replace the traditional mercury way.
The gold kacha gets many competitive advantages compared with other concentration machines which create high returns for the investors.
Updated news: According to Sudan government news,before 2020 year,mercury will be limited totally in Sudan. |
|
|
Gold kacha is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings. Since 1985, three models of Gold Concentration Separator have been developed. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of—0.074mm, the recovery for the natural gold is expected up to 98%. For that natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours. And the upgrade ratio is up to 1,000 times.
|
|
Type |
YX-20 |
YX- 30 |
YX- 60 |
YX- 80 |
YX- 100 |
YX- 120 |
|
Capacity(T/H) |
0.25-0.30 |
2-3 |
10-15 |
35-40 |
40-60 |
80-100 |
|
Feeding Size(mm) |
0-3 |
0-4 |
0-6 |
0-6 |
0-6 |
0-6 |
|
Feeding Concentration (%) |
0-50% |
0-50% |
0-50% |
0-50% |
0-50% |
0-50% |
|
Back Wash Water (T/H) |
1.5-2 |
4-6 |
10-15 |
17-25 |
40-60 |
100-120 |
|
Output(kg/time) |
2-3 |
10-20 |
30-40 |
60-70 |
70-80 |
80-120 |
|
Power(kw) |
0.75 |
1.5 |
4 |
15 |
22 |
30 |
|
Revolution |
800 |
600 |
460 |
400 |
360 |
360 |
|
Pressure Water (M Pa) |
0.04 |
0.1 |
0.16 |
0.18 |
0.2 |
0.2 |
|
Outline (mm) |
790x785x790 |
1180x1140x1250 |
1970x1670x1750 |
2300x1800x2200 |
2500x2000x2400 |
2500x2200x2500 |
|
Weight(kg) |
300 |
500 |
1300 |
1800 |
2800 |
4500 |
|
|
Working principle:
|
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley. |
Features o f centrifugal concentrator
|
1) High recovery rate: Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm. 2) Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.
|
|
3) Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect. 4) No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
|
|
5) Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine) 6)Reliable: this Gold Concentration Separator gets a simple & tough structure, the main body is made by strong steel, and the concentrate cone is made by stainless steel. And the bearing is greased to keep it running well. |
