Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Hikelok
-
Model Number:
-
ME
-
Product name:
-
Male Elbow
-
Material:
-
SS316
-
Port size:
-
1/16 to 2 inch and 2 to 50mm.
-
Pressure:
-
6000 psig
-
Thread Type:
-
NPT, ISO/BSP, SAE etc.
-
Certification:
-
ISO/ABS/CE
-
MOQ:
-
1pc
-
Packing:
-
Carton
-
Delivery Time:
-
30DAYS
-
Payment:
-
T/T
Quick Details
-
Technics:
-
Forged
-
Shape:
-
Equal
-
Head Code:
-
Hexagon
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Hikelok
-
Model Number:
-
ME
-
Product name:
-
Male Elbow
-
Material:
-
SS316
-
Port size:
-
1/16 to 2 inch and 2 to 50mm.
-
Pressure:
-
6000 psig
-
Thread Type:
-
NPT, ISO/BSP, SAE etc.
-
Certification:
-
ISO/ABS/CE
-
MOQ:
-
1pc
-
Packing:
-
Carton
-
Delivery Time:
-
30DAYS
-
Payment:
-
T/T
tubing connecting fittings male elbow fitting

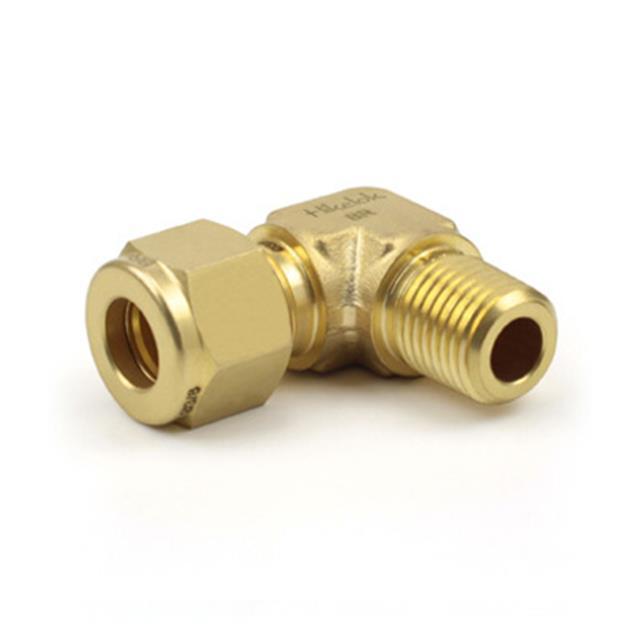

Product Name: 90° Male Elbow
Descriptions:
Port 1 type: Metric Ferrule / Fractional Ferrule
Port 2 type: NPT, ISO/BSP Tapered Thread (RT).
Size: from 1/16 to 2 inch and 2mm to 50mm.
Configuration Designator: Male Elbow.
Material: Stainless Steel 316.
SS316 Standards: ASTM A276, ASME SA479, EN 1.4401 etc.
PTFE Standards: ASTM D1710, ASTM D3294
Thread Type: NPT, ISO/BSP, SAE etc.
Hikelok Twin Ferrule Series Tube fittings:
Twin ferrule fittings provide metal-to-metal seal connections, non-elastomeric seals for leak-free connections.
Hikelok twin ferrule fitting is designed to have a maximum allowable working pressure that is higher than that of any tubing.
Industry standard design for all instrumentation grade tubing.
Stainless steel tube harderness: the hardness of the tube shall be not greater than 85 HRB.
Available in sizes from 1/16 to 2 in and 2mm to 50mm.
Hikelok fittings materials include 316 stainless steel, brass, nickel-copper, Hastelloy C, 6Mo, Incoloy 625 and 825.
Hikelok special treated Back ferrule is to provide secure.
Sliver coated threads to reduce galling.
Leak-proof joints capable of satisfying high pressure vacuum and vibration applications.
Configuration:
How to order Hikelok double ferrule tube fittings:
We are designed and manufactured to interchange and intermix with Swagelok® tube fittings.
Hikelok is designed and precisely manufactured to intermix and interchange major global brands.
