Quick Details
-
Function:
-
For Balacony, Deck, Terrace
-
Shape:
-
Straight & Curved
-
Location:
-
Indoor & Outdoor Railing
-
Style:
-
Modern
-
Installation:
-
Easy, No Welding, With Bolts
-
weld:
-
free welding
-
glass:
-
10mm tempered glass or laminated tempered glass
-
handrail:
-
42.4mm or 50.8mm slot pipe
-
glass color:
-
frosted, colored, clear
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEMOSE
-
Model Number:
-
DMS-B21223
-
Function:
-
For Balacony, Deck, Terrace
-
Shape:
-
Straight & Curved
-
Location:
-
Indoor & Outdoor Railing
-
Style:
-
Modern
-
Installation:
-
Easy, No Welding, With Bolts
-
weld:
-
free welding
-
glass:
-
10mm tempered glass or laminated tempered glass
-
handrail:
-
42.4mm or 50.8mm slot pipe
-
glass color:
-
frosted, colored, clear
stainless steel handrail accessories for balcony glass fixing balustrade
| Components | Specifications | Material | Surface |
| Handrail | Φ42.4/50.8mm slot pipe | SS304/SS316 | Satin/Mirror |
| U-channel | 100x65mm, 10mm thick | Aluminium | Natural Color |
| Glass | 12-19mm | Tempered Glass | Clear |
The U-channel of the stainless steel balustrade accessories could be covered by stainless steel covers and it looks stainless steel from outside.
Installation:
1. The framless glass railing is easy to install,only screws;
2. Detailed installation drawings of the stainless steel balustrade accessories will be provided
Full View of stainless steel handrail accessories for balcony glass fixing balustrade :
Sections of stainless steel handrail accessories for balcony glass fixing balustrade
glass railing could be applied for balcony, deck, and stairs. But stairs should have a straight beam for the glass railing to sit on. With different bolts, the glass railing could be mounted on concrete, wood and steel.
Installation Methods of stainless steel handrail accessories for balcony glass fixing balustrade
As in drawings below, there are more than one way to mount the glass railing. Channels of the railing could be fixed on floor, into the floor, to the side of floor with steel angle.
How to install glass and channel of the railing?
1. Mount channels onto floor with countersunk expansion bolt, put U rubber into channel, and put glass into U rubber;
2. Put wedges and fastening rubbers every 30 cm and put silicon along the glass as shown in the following drawing. Now half of installation of glass railing has been finished. You are close to have nice framless glass railing for your house or building.
How to fix top rail of the glass steel profile railing?
Just one more step, you could finish installation of railing. Before putting top rail onto the glass, put rubber into it. Then put silicon along glass as shown. Great! You have the nice framless glass railing now!
Application of glass steel profile railing

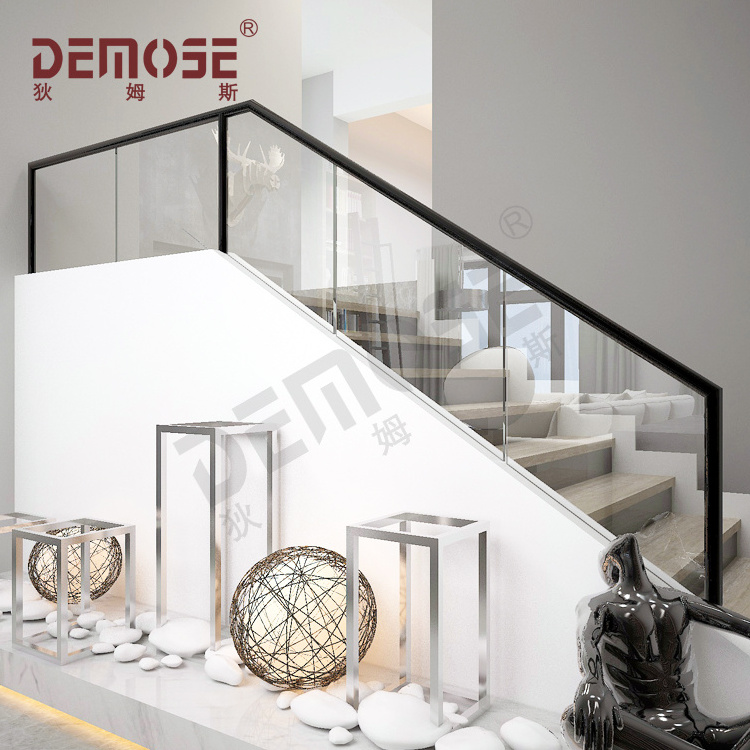

glass steel profile railing is a good match for modern home and buildings. We hope you will have nice glass railing for your house or building.
Payment: T/T in advance and balance before delivery
Terms of Delivery: EXW, FOB, CIF, CFR
Lead Time: Same as Contract
Why do you choose Demose?
* Give us measurements or drawings or model, you will get quotation in 24 hours.
* Our products are strictly tested and trial installation is necessary.
* Choose Demose, your design or idea could safely become reality.
* Select Demose, you will have good quality, safety and durability .
Certifications:
a. Quality Management System Certificate
b. China Building Decoration Association Membership Certificate
c. China Council for the Promotion of International Trade Membership Certificate
d. China Association for Quality Inspection Qualified Product
e. China Building Decoration Association the Ministry of Construction Hardware Architecture Committee Products Selected Projects
