Advantages
* 3.5" LCD display
* Real-time measuring
* Bi-directional power
* Tariff(optional)
* Modbus-RTU/Profibus-DP(optional)
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PD194Z-9HY
-
Product name:
-
3 phase ac digital lcd panel mounted power quality and energy analyzer
-
Phase:
-
Three phase
-
Measuring range:
-
100-415V AC 100-350V DC
-
Accuracy:
-
0.5
-
Supply Voltage:
-
220V
-
Operating Temperature:
-
-25~70℃
-
Dimensions:
-
96x96mm
-
Display:
-
LCD
-
Harmonic:
-
2~15th
-
Service:
-
OEM ODM
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Elecnova
-
Model Number:
-
PD194Z-9HY
-
Product name:
-
3 phase ac digital lcd panel mounted power quality and energy analyzer
-
Phase:
-
Three phase
-
Measuring range:
-
100-415V AC 100-350V DC
-
Accuracy:
-
0.5
-
Supply Voltage:
-
220V
-
Operating Temperature:
-
-25~70℃
-
Dimensions:
-
96x96mm
-
Display:
-
LCD
-
Harmonic:
-
2~15th
-
Service:
-
OEM ODM
Product Description
Product name：

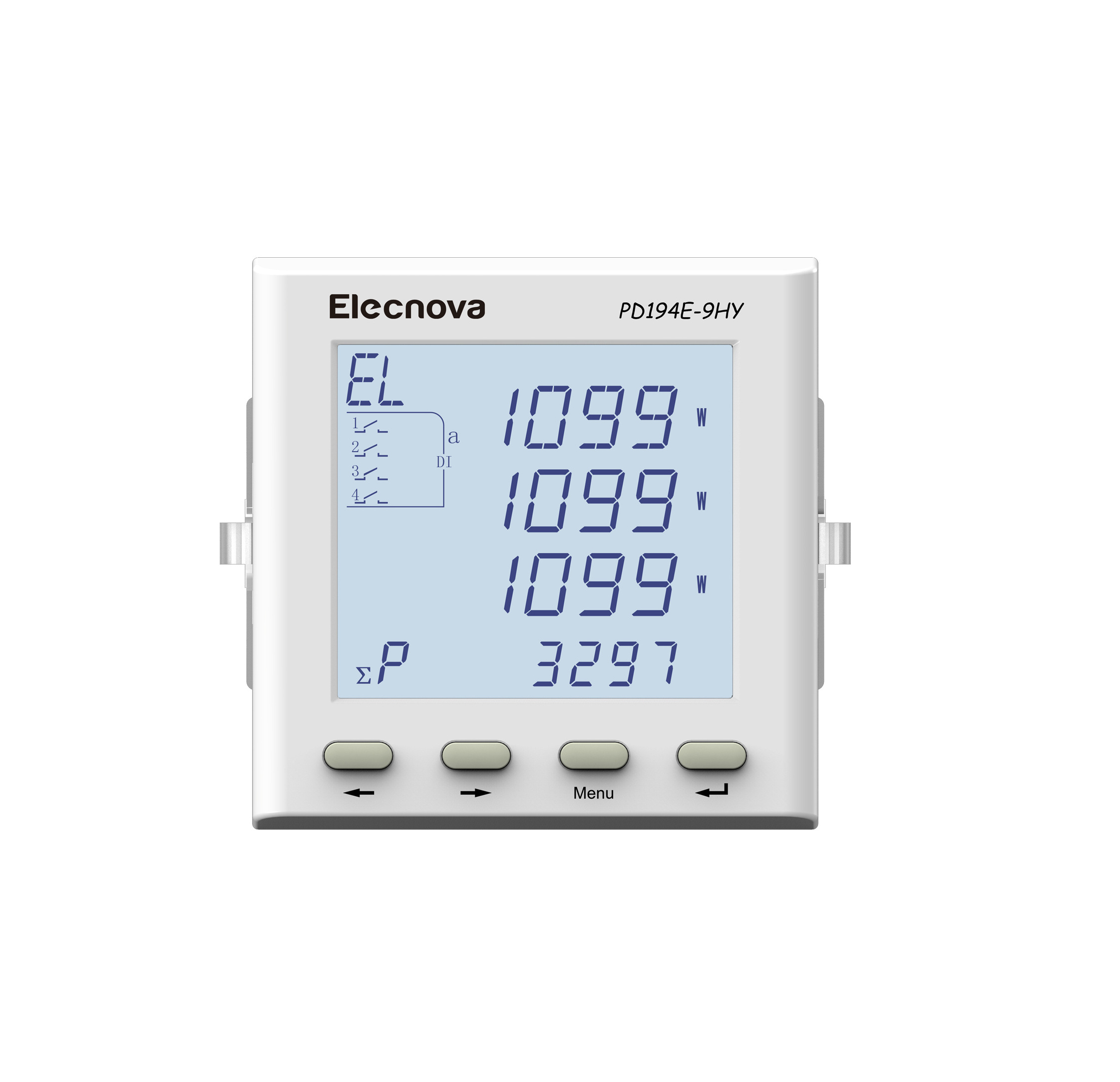

PD194Z-9HY 96*96mm 3 phase ac digital lcd panel mounted power quality and energy analyzer
PD194E-9HY multi-functional energy meter is specialized for the power substation system industrial power measuring public facilities and the smart building power monitoring control and sub-metering power billing. It provides full electric parameter measuring power metering and power quality monitoring. It can measure harmonic 2-15th. The RS485 interface supports modbus-RTU and DL/T 645 to ensure the metering data could be transmit to various power monitoring system and energy management system in high efficiency.
PD194E-9HY multi-functional energy meter is specialized for the power substation system industrial power measuring public facilities and the smart building power monitoring control and sub-metering power billing. It provides full electric parameter measuring power metering and power quality monitoring. It can measure harmonic 2-15th. The RS485 interface supports modbus-RTU and DL/T 645 to ensure the metering data could be transmit to various power monitoring system and energy management system in high efficiency.
* 3.5" LCD display
* Real-time measuring
* Bi-directional power
* Tariff(optional)
* Modbus-RTU/Profibus-DP(optional)
Product Paramenters
|
Feature
|
|
|
Parameters
|
||
|
Accuracy
|
|
|
U, I: 0.2 class, P, Q, PF: 0.5 class, Harmonic: A class,
Active energy: 0.5S class, Reactive energy: 2 class, Analog output: 0.5 class |
||
|
Display
|
|
|
LCD |
||
|
|
Power Grid
|
|
3 phase 4 wire, 3 phase 3 wire, single phase |
||
|
|
|
Rated Value
|
AC100V, AC380V
|
||
|
|
|
Overload
|
Sustainable: 1.2 times, Instantaneous: 2 times/10s
|
||
|
|
|
Consumption
|
<0.1VA(each phase)
|
||
|
|
|
Impedance
|
>1MΩ
|
||
|
|
|
Rated Value
|
AC1A, AC5A
|
||
|
|
|
Overload
|
Sustainable:1.2 times, Instantaneous:10 times/5s
|
||
|
|
|
Consumption
|
<0.1 VA(each phase) |
||
|
|
|
Impedance
|
<20mΩ |
||
|
|
Frequency
|
|
(50±5%)(60±5%)Hz, accuracy: ±0.01Hz
|
||
|
|
Harmonic
|
|
Voltage, current total harmonic distortion and 2-31 times odd harmonic distortion
|
||
|
|
Energy
|
|
Dual direction active and reactive metering
|
||
|
Power
|
Working range
|
|
AC, DC: 80V~270V
|
||
|
|
Consumption
|
|
<5VA
|
||
|
Function Module
|
Energy pulse output
|
|
2 loops energy pulse output, photo coupler relay, constant 5000imp/kWh (kvarh)
|
||
|
|
Communication port
|
|
1 loop RS-485,MODBUS-RTU, Baud rate: 2400~9600
|
||
|
|
Digital input
|
|
At most 4 loops digital invariables input, dry node connection
|
||
|
|
Relay output
|
|
At most 3 cycles relay output, AC250V/5A, DC30V/5A
|
||
|
|
Analog output
|
|
1 analog output: 0/4~20mA or 0~5/10V
|
||
|
Operating environment
|
|
|
-20~65℃, humidity ≤93%, no erosion gas, altitude≤2500m
|
||
|
Storage environment
|
|
|
-25~75℃,humidity≤93%
|
||
|
Safety
|
Insulation
|
|
Signal, power, output terminal to shell resistance>100MΩ |
||
|
|
Withstand voltage
|
|
Input and power>2kV, Input and output>1kV, power and output>2kV
|
||
Production Process
