Quick Details
-
Brand Name:
-
Linshang
-
Model Number:
-
LS220
-
Probe tip:
-
Ruby
-
Measuring principle:
-
Fe:Hall Effect / NFe: Eddy current
-
Measuring range:
-
0.0-2000μm
-
Resolution:
-
0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm)
-
Accuracy:
-
≤±(3% reading+2μm)
-
Unit:
-
μm / mil
-
Measuring interval:
-
0.5s
-
Minimum measuring area:
-
Diameter = 25mm
-
Minimum curvature:
-
Convex:5mm / Concave:25mm
-
Minimum substrate thickness:
-
Fe:0.2mm / NFe:0.05mm
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Linshang
-
Model Number:
-
LS220
-
Probe tip:
-
Ruby
-
Measuring principle:
-
Fe:Hall Effect / NFe: Eddy current
-
Measuring range:
-
0.0-2000μm
-
Resolution:
-
0.1μm:(0μm-99.9μm) 1μm:(100μm-999μm) 0.01mm:(1.00mm-2.00mm)
-
Accuracy:
-
≤±(3% reading+2μm)
-
Unit:
-
μm / mil
-
Measuring interval:
-
0.5s
-
Minimum measuring area:
-
Diameter = 25mm
-
Minimum curvature:
-
Convex:5mm / Concave:25mm
-
Minimum substrate thickness:
-
Fe:0.2mm / NFe:0.05mm
Overview

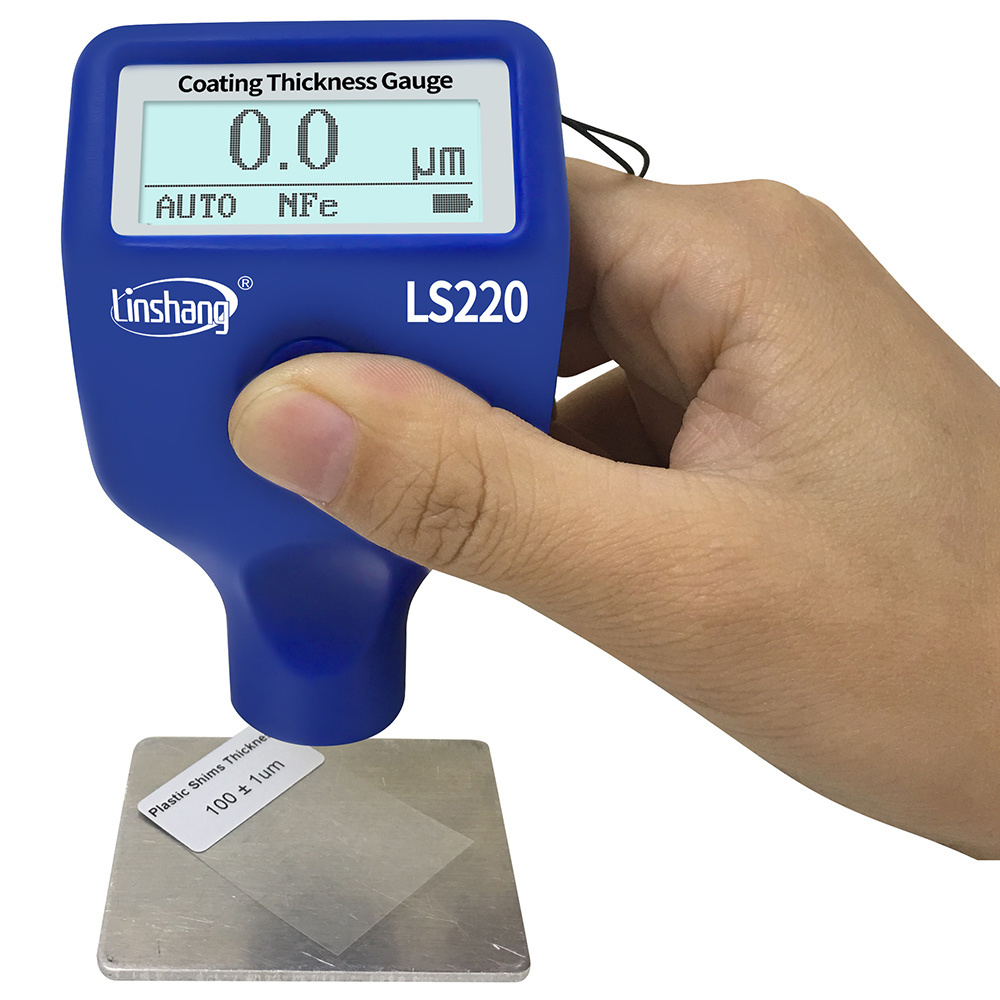

LS220 Automotive Paint Meter (2nd)
plating thickness tester suppliersportable plating thickness testergold plating thickness tester
Automotive paint meter, also called car paint meter, is a special instrument for detecting the automobile substrate surface
coating thickness. The covering surface of a car basically has a paint coating. Using a automotive paint meter to measure the paint surface coating thickness can directly determine the sheet metal and spray paint of a car. It can also indirectly determine the damage degree of the car. The LS220 automotive paint meter has small size and is especially suitable for carrying around when going out for inspection. This car paint thickness gauge has the characteristics of fast test speed, stable test data, high measurement accuracy and so on.
coating thickness. The covering surface of a car basically has a paint coating. Using a automotive paint meter to measure the paint surface coating thickness can directly determine the sheet metal and spray paint of a car. It can also indirectly determine the damage degree of the car. The LS220 automotive paint meter has small size and is especially suitable for carrying around when going out for inspection. This car paint thickness gauge has the characteristics of fast test speed, stable test data, high measurement accuracy and so on.
car paint tester device car paint thickness tester pen car paint thickness tester coating thickness gauge
Application
Features
1. The LS220 automotive paint meter has high-sensitivity probe, fast test speed. Measurement can be completed in 0.5 seconds.
2. The LS220 car paint thickness gauge uses dual-purpose probes, which are suitable for detecting the paint thickness on iron materials and also for detecting the paint thickness on aluminum materials. It can also recognizes non-metallic substrates.
3．This automotive paint meter uses an industrial-grade LCD screen, which can be used at minus 20 ° C. No worries for outdoor use in winter of Northern China.
4．No calibration is needed just simple zero adjustment to ensure the measurement accuracy.
5．Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.
6．With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.
7．"Fe", "NFe", "Fe/NFe" three measurement modes can be set for the LS220 automotive paint meter.
4．No calibration is needed just simple zero adjustment to ensure the measurement accuracy.
5．Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.
6．With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.
7．"Fe", "NFe", "Fe/NFe" three measurement modes can be set for the LS220 automotive paint meter.
9．Ultra-low power consumption, coupled with the design of automatic shutdown with no operation for 3 minutes to avoid frequent battery replacement and saves energy.
plating thickness tester suppliersportable plating thickness testergold plating thickness tester
Paramenters
|
Probe tip
|
Ruby
|
|
Measuring principle
|
Fe:Hall Effect / NFe: Eddy current
|
|
Probe type
|
Built-in integrated probe
|
|
Measuring range
|
0.0-2000μm
|
|
Resolution
|
0.1μm:(0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-2.00mm)
|
|
Accuracy
|
≤±(3% reading+2μm)
|
|
Unit
|
μm / mil
|
|
Measuring interval
|
0.5s
|
|
Minimum measuring area
|
Diameter = 25mm
|
|
Minimum curvature
|
Convex:5mm / Concave:25mm
|
|
Minimum substrate thickness
|
Fe:0.2mm / NFe:0.05mm
|
|
Display
|
128×48 dot matrix LCD
|
|
Power supply
|
2pcs of 1.5V AAA alkaline battery
|
|
Operation temperature
|
-20℃-50℃
|
|
Storage temperature
|
-20℃-60℃
|
|
Host size
|
101*62*28 mm
|
|
Weight(with battery)
|
79 g
|
Structure
Packing Details
Qualification and Standards
* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
