- Product Details
- {{item.text}}
Quick Details
-
Max Speed:
-
11-20km/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WISKING
-
Model Number:
-
4032
-
Colour:
-
RED,BLUE SILVER BLACK WHITE
-
Certification:
-
TUV CE ISO9001/13485 EEC, CE
-
Product name:
-

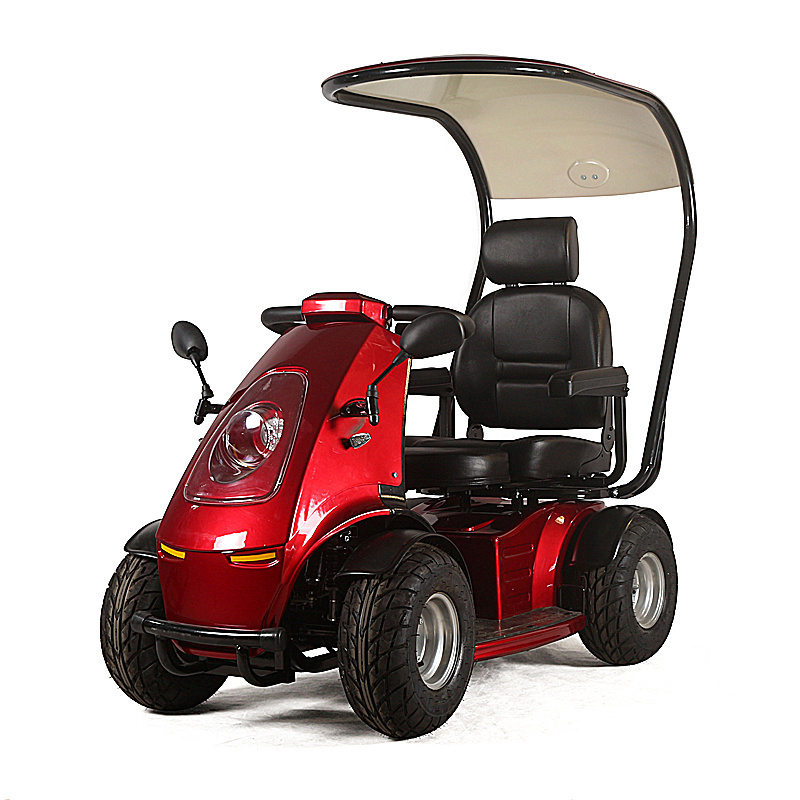

Four wheels heavy duty mobility scooter.
-
Motor power:
-
24v 1400w
-
Battery capacity:
-
Lead acid 12V /100AH *2
-
Max speed:
-
15km/h
-
Max load:
-
180kg
-
Controller:
-
PG-140A
-
Range:
-
65-80km
-
Incline capability:
-
12 degrees
Quick Details
-
Voltage:
-
24V
-
Foldable:
-
NO
-
Range Per Charge:
-
60-80km
-
Max Speed:
-
11-20km/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WISKING
-
Model Number:
-
4032
-
Colour:
-
RED,BLUE SILVER BLACK WHITE
-
Certification:
-
TUV CE ISO9001/13485 EEC, CE
-
Product name:
-
Four wheels heavy duty mobility scooter.
-
Motor power:
-
24v 1400w
-
Battery capacity:
-
Lead acid 12V /100AH *2
-
Max speed:
-
15km/h
-
Max load:
-
180kg
-
Controller:
-
PG-140A
-
Range:
-
65-80km
-
Incline capability:
-
12 degrees
Key words:
4 WHEELS electric scooter
Outdoor handicapped mobility scooter IRON MAN
Four wheels mobility scooter. heavy duty mobility scooter.
Shanghai wisking 4032 New design with good performance and durability.
1.--Equipped with a powerful 24-volt DC motor, the scooter has a weight capacity of 400 lbs. and possesses the ability to travel about 70 miles every charging.
2.--Armed with a 140-amp microprocessor-based controller,also comes with a full lighting package that ensures safety during use as well as BIGlow-profile pneumatic tires for excellent outdoor performance.
Features
Big battery with long range uo to 70KM
Powerful drive train
Deluxe reclining high-back seat with headrest and sliders
Full lighting package that includes directional signals and lower headlight
Large 16" low-profile, pneumatic tires for excellent outdoor performance
Front and rear suspension
Front basket and rearview mirror come standard
seat can be optional
Specification
| Overall dimension | 155*78*155cm |
| Front tire/Rear tire | 16" air tire/16" air tire |
| Weight capacity | 180kg |
| Controller | PG(Imported from UK)140A |
| Motor | 24V/1400W |
| Battery | 12V/100AH*2 |
| Battery weight | 33kg*2 |
| Battery dimension(l*w*h) | 33*17.5*22cm*2 |
| Charger | 24V/10A |
| Rechargr time | 8-10hrs |
| Gross weight | 200kg |
| Net weight(with batteries) | 180kg |
| Package | |
| Package size | |
| Range | up to 70km per battery charge |
| Incline capability | 12 degrees |
| Turning radius(min) | 1.8m |
| Ground clearance | 12cm |
| Max.forward speed | 15km/h |
Product pictures
Product details
After Sale Service
ONE-YEARS LIMITED WARRANTY
One years on all structural frame components
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Wisking will repair or replace at our option to tile original purchaser, free of charge, any part or electronic component found upon examination by an authorized representative of Wisking to be defective in material and/or workmanship,
The battery is warranted by the battery manufacturer, The battery is not warranted by Wisking, Warranty service can be performed by Wisking or by an authorized Wisking Provider, Do not return faulty parts to Wisking without prior consent, All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the original purchaser.
ONE-YEAR WARRANTY EXCEPTIONS
TRANSAXLE: In cases where there is an increase in the operational noise level, the warranty does not apply,(The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter,)
MOTOR BRAKE: one-year warranty for the electrical function of the motor brake, Brake pads are a wearitem and are not warranted,
WARRANTY EXCLUSIONS
ABS plastic shrouds and footrest covers (wear items and not warranted)
Batteries (the battery manufacturer provides a limited warranty)
Tires and tire tubes (wear items and not warranted)
Upholstery and seating (wear items and not warranted)
Repairs and/or modifications made to any part of the scooter without specific and prior consent from Wisking
Circumstances beyond the control of Wisking
Damage caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper
operation, maintenance, or storage, commercial use or use other than normal
Labor, service calls, shipping, and other charges incurred for repair of the product
THERE IS NO OTHER EXPRESS WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded, This is the exclusive remedy, Liabilities for consequential damages under any and all warranties are excluded,
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages, So, the above limitation or exclusion may not apply to you.
Service Network
In this market the disabled and the elderly in the domestic, the quality of Wisking's products has the higher reputation and good customer service. We export our products all over the world, and every year, export around 10,000pcs mobility scooters and power wheelchairs. We are also capable of providing OEM and ODM high quality products with the most competitive prices.
