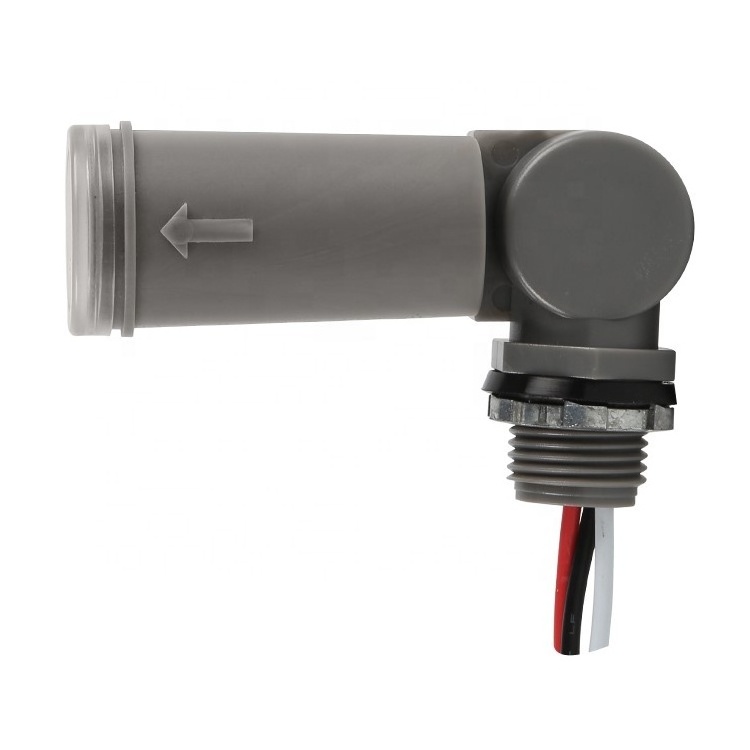

LED 120V Dusk To Dawn Outdoor Swivel Photo Cell Light Control Photocell Sensor

LED 120V Dusk To Dawn Outdoor Swivel Photo Cell Light Control Photocell Sensor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3

≥300 Pieces

US $2.5

≥1000 Pieces

US $2.2

≥5000 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Description:: 120V Dusk to Dawn Photocell Sensor, LED Swivel Mount Photo Control 120V

Model Number:: LT-210CH1

Place of Origin:: Zhejiang, China

Brand Name:: Lead Top

Theory:: Optical sensor

Output:: Switching Transducer

Rated Voltage:: 120VAC,220VAC,240VAC,277VAC

Rated loadings:: 1000W Tungsten,1800VA Ballast

On-off levels:: 10-16 lux On(at Dusk), <65lux Off (at Dawn)

Ambient temp:: -40~70℃

Related Humidity:: 96%

Power Consumption:: 1.5VA Max

Leads Length:: 140mm or customer request

Electrical life:: 5000 cycles

Color:: Grey

Warranty:: 2 Years

Quick Details

Usage:: Auto on off for lights

Series:: Photocell

Mounting Type:: Swivel Mount

Description:: 120V Dusk to Dawn Photocell Sensor, LED Swivel Mount Photo Control 120V

Model Number:: LT-210CH1

Place of Origin:: Zhejiang, China

Brand Name:: Lead Top

Theory:: Optical sensor

Output:: Switching Transducer

Rated Voltage:: 120VAC,220VAC,240VAC,277VAC

Rated loadings:: 1000W Tungsten,1800VA Ballast

On-off levels:: 10-16 lux On(at Dusk), <65lux Off (at Dawn)

Ambient temp:: -40~70℃

Related Humidity:: 96%

Power Consumption:: 1.5VA Max

Leads Length:: 140mm or customer request

Electrical life:: 5000 cycles

Color:: Grey

Warranty:: 2 Years

LED 120V Dusk To Dawn Outdoor Swivel Photo Cell Light Control Photocell Sensor

Product Description

Features:

_{-Wires directly to the electrical box with a standard 1/2" pipe thread.}

_{-Operates incandescent, fluorescent, LED, metal halide, mercury vapor and sodium light fixtures.}

_{-Dusk to dawn feature ensures your lights come on when they need to be on, and Heavy-duty thermal bi-metal switch swivels to allow precise positioning.}

_{-Weather, moisture, or temperature changes does not affect the operation of this switch.}

_{-The photoelectric switch is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.}

_{-It provides time delay over 30 seconds to avoid redundant switching against spotlight or lightning at night.}

_{-Temperature compensation system provides consistent performance whether it's hot or cold. Includes a gathered swivel with the sensor/switch body for convenient direction adjustment after installation. Additional swivel is also available for further adjustment.}

Specifications:

Thread: 1/2"
Mount Type: Swivel
Related Humidity: 95%RH
Rated Voltage: 120Vac
Rated Frequency: 50/60Hz
Rated Loading: 1000W Tungsten, 1800VA Ballast
Power consumption: ≤0.7w at 120v
Operate Level: 10-16 lux On(at Dusk), <65 lux Off(at Dawn)

Ambient Temperature: 40℃~ +70℃

Fit for: Wall Packs, Shoe Box, Porch Lights

Package Content:

_{1 x Photoelectric switch}
_{1 x Zinc alloy nut}
_{1 x Rubber washer}
