Quick Details
-
Weight:
-
760 KG, 760kg(with power and disc plough)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Paddy field boat tractor with disc plough fertilizer applicator
-
Product Type:
-
Agriculture Machinery Equipment
-
Diameter of disc plough:
-
205mm
-
Wheel base:
-
1760mm
-
Dimension(L*W*H):
-
3200*1500*1400mm
-
power:
-
16.2kw 2200rpm diesels engine
Quick Details
-
Rated Power (HP):
-
22hp
-
Brand Name:
-
no
-
Place of Origin:
-
Hubei, China
-
Weight:
-
760 KG, 760kg(with power and disc plough)
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Paddy field boat tractor with disc plough fertilizer applicator
-
Product Type:
-
Agriculture Machinery Equipment
-
Diameter of disc plough:
-
205mm
-
Wheel base:
-
1760mm
-
Dimension(L*W*H):
-
3200*1500*1400mm
-
power:
-
16.2kw 2200rpm diesels engine
Paddy field tractor Small boat tractor paddy field boat tractor for rice field cultivation
Description:

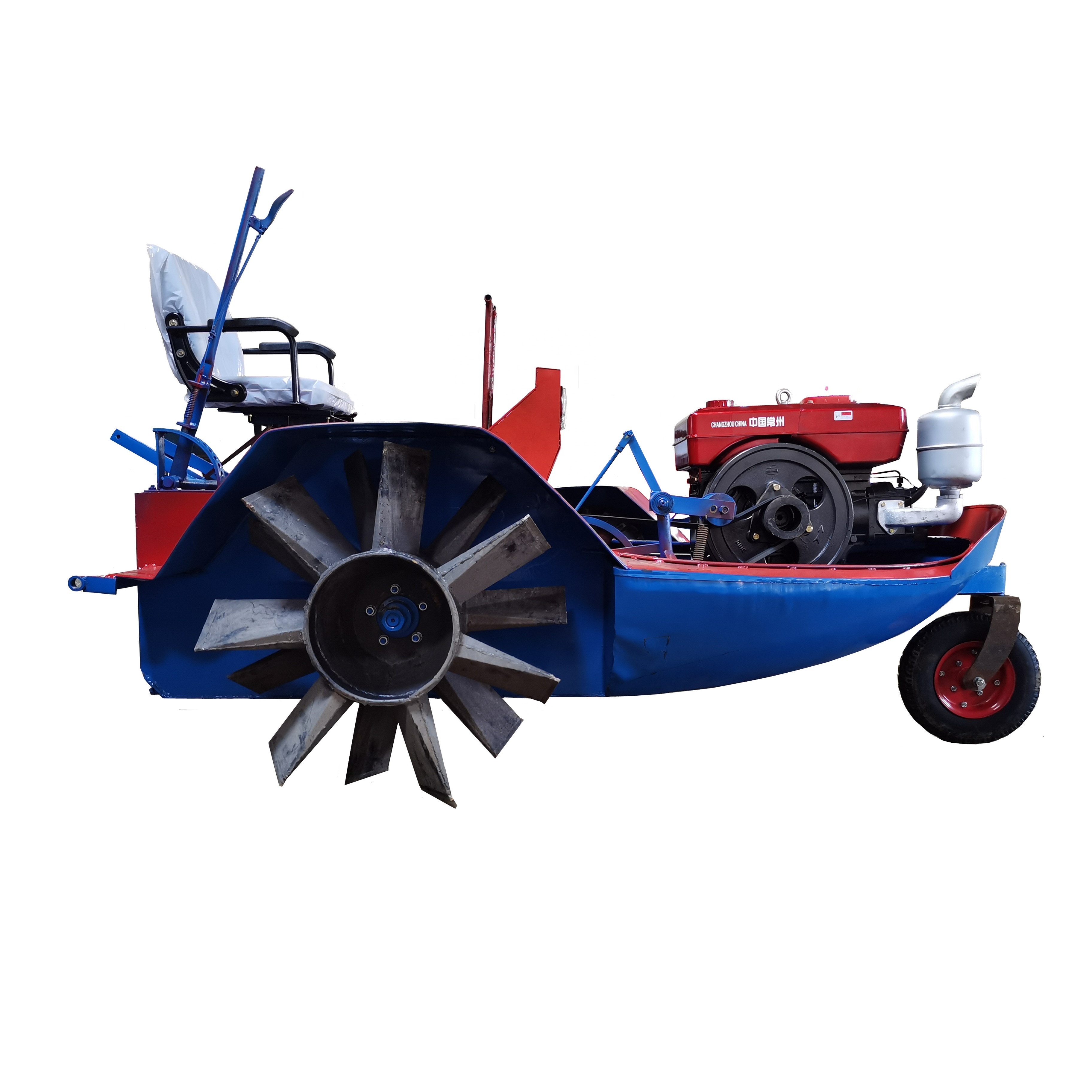

This boat tractor is our new product, the machine frame is boat shaped, a machine frame is arranged in the boat body; a riser at the front end of the machine frame, a gear box on the machine frame positioned at the tail of the boat; a cultivation roller on the gear box; an operating lever at the dynamic force side of the gear box; an armrest is fixed at the front end of the gear box; a left and a right separating operating levers on the surface of the gear box; a mudguard on the gear box in a straddling way; a seat penetrates through the mudguard and is fixed on the gear box; the dynamic force is transferred to a belt pulley through a belt and to the gear box so as to driving the cultivation roller. The boat tractor can be suitable for the paddy field cultivation of different properties in mountains, plains, hills and lake districts.
Three I mplements along with tractor : disc plough, rake and roller.
Parameters:
|
Model |
AM-22A |
|
Working efficiency |
0.8-1ha./h |
|
Engine |
ZH1115G2 diesel |
|
Power |
16. 2 kw( 22HP) , 2200rpm |
|
Weight |
760kg(with power and disc plough) |
|
Wheel track |
1250mm |
|
Wheel base |
1670mm |
|
Driving wheel vertical amplitude modulation |
300mm |
|
Guide wheel radius |
200mm |
|
Suspension lifting device |
Ratchet pendulum rod disc control |
|
Power clutch control device |
Belt clutch |
|
minimum turning radius |
1.75m |
|
Min ground clearance |
145-245mm(adjustable) |
|
Diameter of disc plough |
205mm |
|
Min working depth |
180mm |
|
Min working width |
480mm |
|
Diameter of rubber driving wheel |
375mm |
|
Diameter of water paddy wheel |
365mm |
|
Max working speed |
3.5m/s |
|
Working efficiency |
0.53hm2/h |
|
Oil consumption |
180 ± 20g/h |
|
Walking speed |
20-30km/h, max.40-50km/h |
|
Overall dimension |
3200x1 5 00x1 4 00mm |
|
Packed size |
2600x1600x1200mm |
|
Cultivating depth |
230 ± 78mm |
|
Capacity of fertilizer tank |
60L |
|
fertilizer apparatus |
gravity type |
|
Fertilization line number |
6 lines |
|
Distributing regulation mode |
Rod type gate |
|
Container load qty |
6sets/20GP, 17sets/40HQ |
