Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
2.8
-
Type:
-
UFO
-
Wattage:
-
100W /150W/200W
-
Lamp Luminous Flux(lm):
-
30000LM±5%
-
Brand Name:
-
LANRUI
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
30/60/90
-
CRI (Ra>):
-
80
-
Dimension:
-
D355*161mm
-
Product Name:
-
UFO LED High Bay Light
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
150
-
Light Source:
-
LED
-
Application:
-
Warehouse, OtherFactory, workshop, warehouse, exhibition hall
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
2.8
-
Type:
-
UFO
-
Wattage:
-
100W /150W/200W
-
Lamp Luminous Flux(lm):
-
30000LM±5%
-
Brand Name:
-
LANRUI
-
Working Lifetime(Hour):
-
50000
-
Beam Angle(°):
-
30/60/90
-
CRI (Ra>):
-
80
-
Dimension:
-
D355*161mm
-
Product Name:
-
UFO LED High Bay Light
Products Description

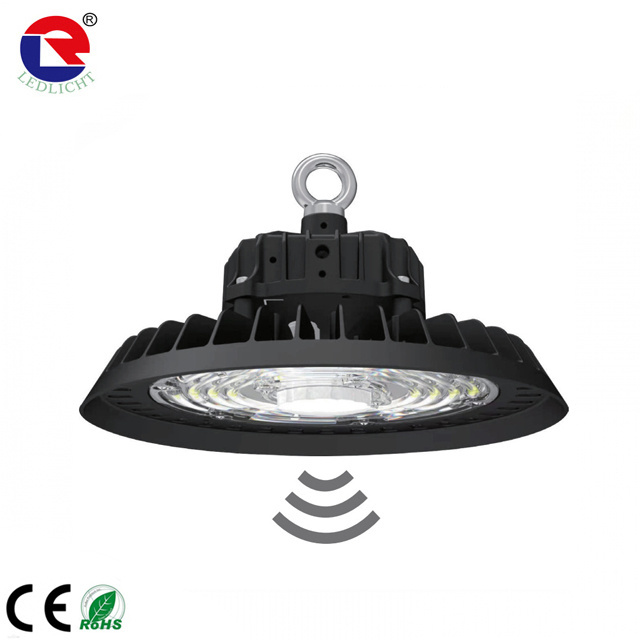

Microwave Sensing UFO LED High Bay Light
1.The lamp body and lamp shade are integrated die-casting, with strong heat dissipation and corrosion resistance.
2. Support pipe installation, lifting, E40 joints and Angle brackets, a variety of convenient installation methods;
3.High-quality LED light source, professional light distribution design, effective control of glare, uniform light distribution;
4.All products have passed ISO9001, CCC, CE, ROHS.
1. When the microwave sensor senses the pedestrian walking, the working brightness of the lamp reaches 100%.
2. 10 seconds after the pedestrian leaves, the lamp will reach 50% brightness.
3. 20 seconds after the pedestrian leaves, the luminosity of the lamp will become 0%.
4.
Sensing distance 12-15m
|
Irradiation distance
|
|
Irradiation distance
|
|
|||
|
Watt
|
Irradiation distance
|
Beam Angle
|
Irradiated area
|
|||
|
100W
|
7-9m
|
120°
|
70㎡
|
|||
|
150W
|
9-11m
|
120°
|
110㎡
|
|||
|
200W
|
14-16m
|
120°
|
150-210㎡
|
|||
The beam Angle can be selected from 60°, 90°, 120°
|
Model
|
Watt
|
Voltage
|
Lumen
|
Size
|
|
LR-IR-100W-YH
|
100W
|
AC120-277V
|
15000LM±5%
|
D260*H150mm
|
|
LR-IR-150W-YH
|
150W
|
AC120-277V
|
22500LM±5%
|
D310*156mm
|
|
LR-IR-200W-YH
|
200W
|
AC120-277V
|
30000LM±5%
|
D355*161mm
|
Color temperature can choose 3000-3500K warm light; 4000-4500K neutral light; 6000-6500K white light.
Several best-selling UFO LED High Bay Lights and Sensor LED UFO High Bay Light
Installment types
Installation By
Ring
（
as following picture shows
Step 1. Screw the mounting ring into the hole on the rear cover.
Step 2. Install hooks.
Step 3. Hang the light fixtures.
Step 4. Connect the cable
Installation By
Bracket
（
as following picture shows
Step 1 Drill holes and insert expansion screws.
Step 2. Hang the lamp and secure the nut.
Step 3. Connect the wires.
Step 4. Adjust the lighting Angle
Product Test
Professional testing and comprehensive quality inspection ensure the qualification of every product.
