easy maintenance Woodworking gluing spreader with high quality rubber glue roller and chromate treatment doctor rollers

easy maintenance Woodworking gluing spreader with high quality rubber glue roller and chromate treatment doctor rollers

FOB Reference Price: Get Latest Price

≥1 Sets

US $1700

≥5 Sets

US $1620

≥10 Sets

US $1580

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Marketing Type:: Hot Product 2024

Warranty of core components:: 1 years

Weight (KG):: 500 KG

Power (kW):: 1.5kw

Max working thickness:: 60mm

Max working width:: 600mm

Rubber roller diameter:: 200

Quick Details

Place of Origin:: Shandong, China

Brand Name:: QDZD

Machine Type:: glue spreader

Marketing Type:: Hot Product 2024

Warranty of core components:: 1 years

Weight (KG):: 500 KG

Power (kW):: 1.5kw

Max working thickness:: 60mm

Max working width:: 600mm

Rubber roller diameter:: 200

PRODUCT OVERVIEW

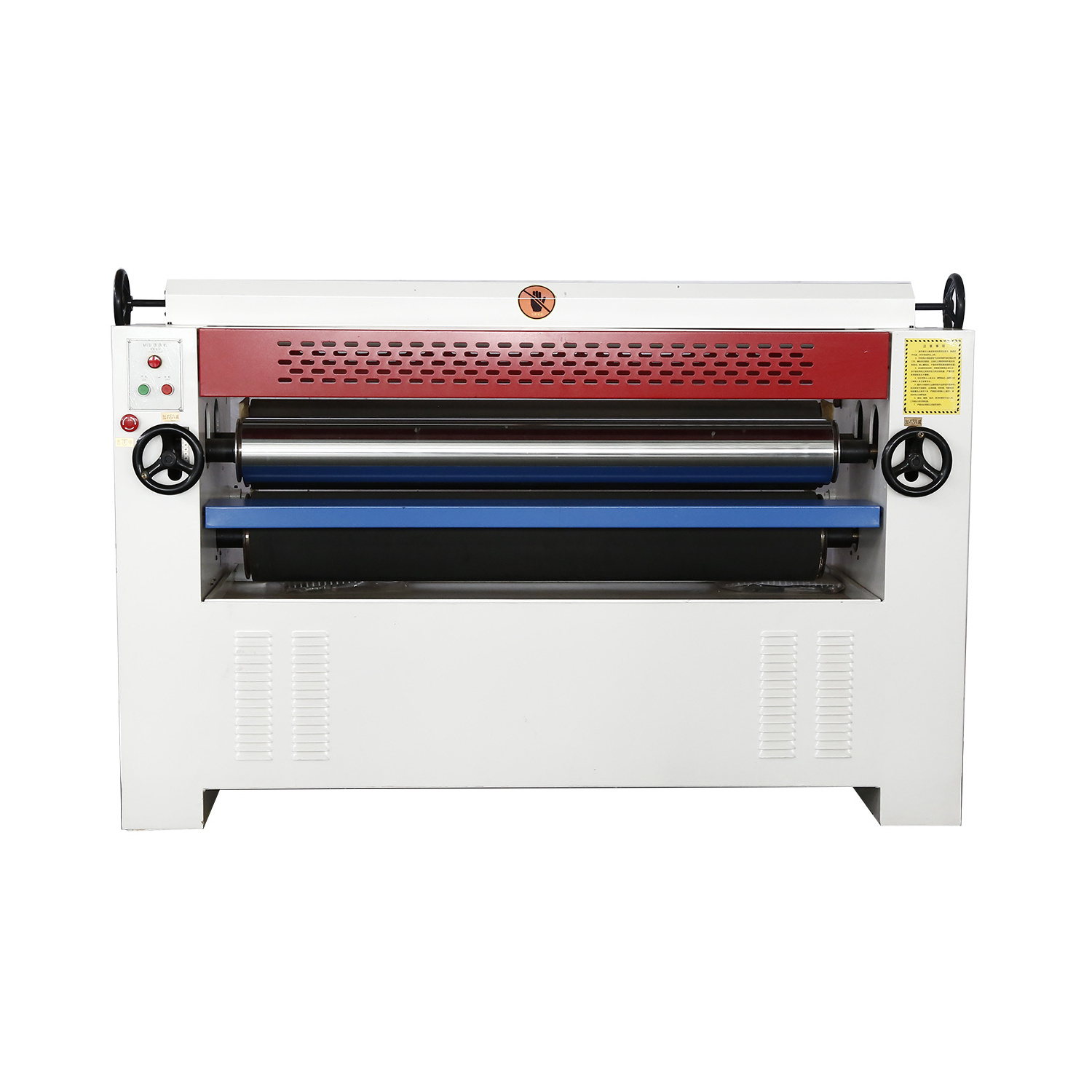

MT6106 GLUING SPREADER

Features:

1.Glue spreader is the specialist to spread the glue uniformly on(core) veneers.

2.Increasing the utilization of glue and decreasing and minimize glue consumption.

3.Equips with high quality rubber glue rollers and chromate treatment doctor rollers.The glue spreads evenly it helps the veneer stick rigidly precise.

4.The safe device is able to immediate stop the machine whenever the danger occurred.

5.Easy operation,the rollers are able to adjust.

6.Easy maintenance,the rollers are able to lift up and move forward by the cylinders.The objects and glue residual can be easily excluded and cleaned out from the rollers.

TECHNICAL PARAMETERS

Model	MT6106
Max glue spreading width	600mm
Max working thickness	60mm
Rubber roller diameter	200mm
Glue spreading speed	22m/min
Motor power	1.5kw
Overall dimensions(LXH)	4008001300mm

DETAILS OF MACHINE

APPLICATION

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.

Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.We have established complete sales system.Our company has got ISO 9001 international system certificate and CE security certificate.
