Quick Details
-
Core Components:
-
Other
-
Voltage:
-
220V/380V/415V/Customized
-
Power:
-
5.5KW, 5.5KW
-
Dimension(L*W*H):
-
1320x670x1620mm
-
Name:
-
Widely Used Iron Blacksmith 55kg Pneumatic Hammer Forging
-
Item:
-
C41-55KG
-
Weight of falling parts:
-
55KG
-
Hit Energy:
-
700J
-
Height of working area:
-
265mm
-
HIT NUMBER:
-
230times/min
-
Dimension of top and bottom die surface:
-
120x55mm
-
Processing material:
-
Square steel/Round steel
-
Anvil Weight:
-
600KGS
-
Weight:
-
1700KGS
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LILER
-
Machine Type:
-
Power hammer
-
Core Components:
-
Other
-
Voltage:
-
220V/380V/415V/Customized
-
Power:
-
5.5KW, 5.5KW
-
Dimension(L*W*H):
-
1320x670x1620mm
-
Name:
-
Widely Used Iron Blacksmith 55kg Pneumatic Hammer Forging
-
Item:
-
C41-55KG
-
Weight of falling parts:
-
55KG
-
Hit Energy:
-
700J
-
Height of working area:
-
265mm
-
HIT NUMBER:
-
230times/min
-
Dimension of top and bottom die surface:
-
120x55mm
-
Processing material:
-
Square steel/Round steel
-
Anvil Weight:
-
600KGS
-
Weight:
-
1700KGS

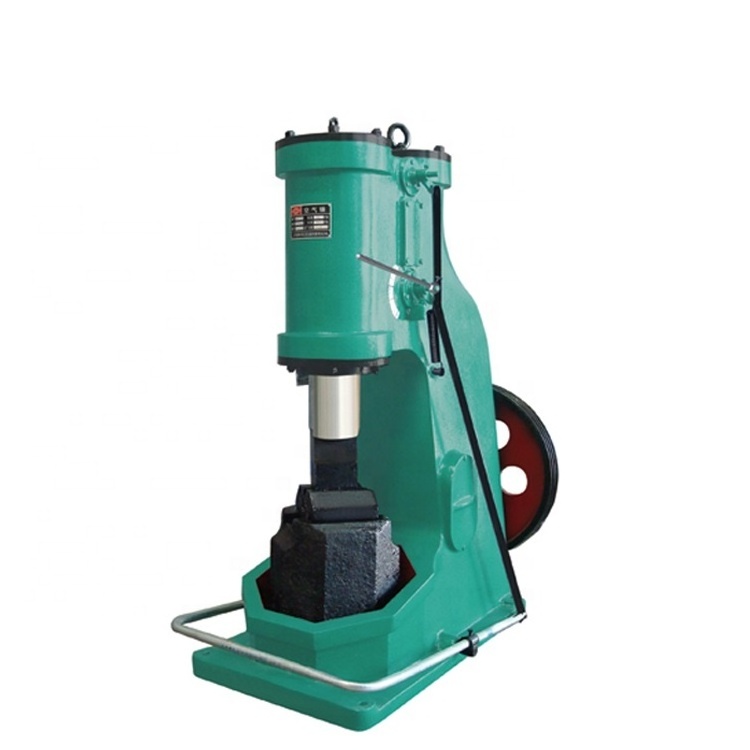

Widely Used Iron Blacksmith 55kg Pneumatic Hammer Forging
Widely Used Iron Blacksmith 55kg Pneumatic Hammer Forging is also called power hammer, it is made of welded and machined steel sheet. It is used in many blacksmiths to manufacture all kinds of pieces for ornamental forging making it easy to mold hot iron. Using different place: emb edded , mold, cut, hole, rivet, stamp, etc ... all kinds of metals. LILER's power hammer is becoming increasingly popular. Today, LILER wrought iron equipment has been widely used in many countries, such as Spain, the United States, United Kingdom, Mexico, Colombia, Canada, South Africa, Vietnam, India and Tobago, etc. This machine would be a good option for your business.
LILER’s power hammer can supply 6 kg, 16 kg, 25 kg, 40 kg, 55 kg, 75 kg, 150 kg, 250 kg, 400 kg, 560 kg, 750 kg, 1000 kg, 2000 kg, are widely used by the industrial forge.
Separated type power hammer
|
Model No |
C41-55KG |
|
Weight of falling parts (kg) |
55 |
|
Max hit energy (KJ) |
0.7 |
|
Height of working area (mm) |
265 |
|
Hit number (min -1 ) |
230 |
|
Dimension of top and bottom die surface (mm) |
120x55 |
|
Max Square steel can be forged (mm) |
52x52 |
|
Max round steel can be forged (mm) |
68 |
|
Tate Power (KW) |
5.5 |
|
Speeds of motor (r.p.m) |
1440 |
|
Anvil weight (kg) |
600 |
|
Total weight (kg) |
1700 |
|
Overall dimensions (mm) |
1320x670x1620 |
1set 2-101 die for free, Will install on machine when ship
Widely Used Iron Blacksmith 55kg Pneumatic Hammer Forging Other dies for reference.
1.Do you have after sale service ?
Sure , we provide after sale service.If there any question video, phone, on site guide is okay.
2. How about wrought iron machine moulds ?
We design molds according to your market needs. If any new moulds you need , contact now.
3. How about the warrenty ?
1 year warrenty period, if any question about machine beforing working, contact for free spare parts and operation guide.
4. How to ensure customs' rights ?
We provide trade assurance on Alibaba and custom service 24 online to provide help.
5. How to shipment?
We have professional operators can arrange customs clearance. Professional fowraders arrange ship. can export from tianjin port, Qingdao Port, Shanghai Port, yiwu port, etc. as you need.
