Quick Details
-
Weight:
-
350 KG
-
Dimension(L*W*H):
-
965*1365*1050MM
-
Marketing Type:
-
Hot Product 2022
-
Product Name:
-
Mini Tiller Cultivator Power Tillers
-
Local Service Location:
-
Philippines
-
Name:
-
Multifunctional Mini Tiller
Quick Details
-
Use:
-
farm equipment
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PANDA
-
Weight:
-
350 KG
-
Dimension(L*W*H):
-
965*1365*1050MM
-
Marketing Type:
-
Hot Product 2022
-
Product Name:
-
Mini Tiller Cultivator Power Tillers
-
Local Service Location:
-
Philippines
-
Name:
-
Multifunctional Mini Tiller
Product Description
Specification
|
Model
|
unit
|
1LP-2
|
1LP-3
|
1LP-4
|
1LP-5
|
|
Working width
|
mm
|
600
|
900
|
1200
|
1500
|
|
Working depth
|
mm
|
150-300
|
150-300
|
150-300
|
150-300
|
|
Q'ty of disc
|
|
2
|
3
|
4
|
5
|
|
Disc diameter
|
mm
|
660
|
660
|
660
|
660
|
|
Overall weight
|
kg
|
350
|
400
|
470
|
560
|
|
Matched power
|
hp
|
45
|
60
|
90
|
120
|
Title goes here.

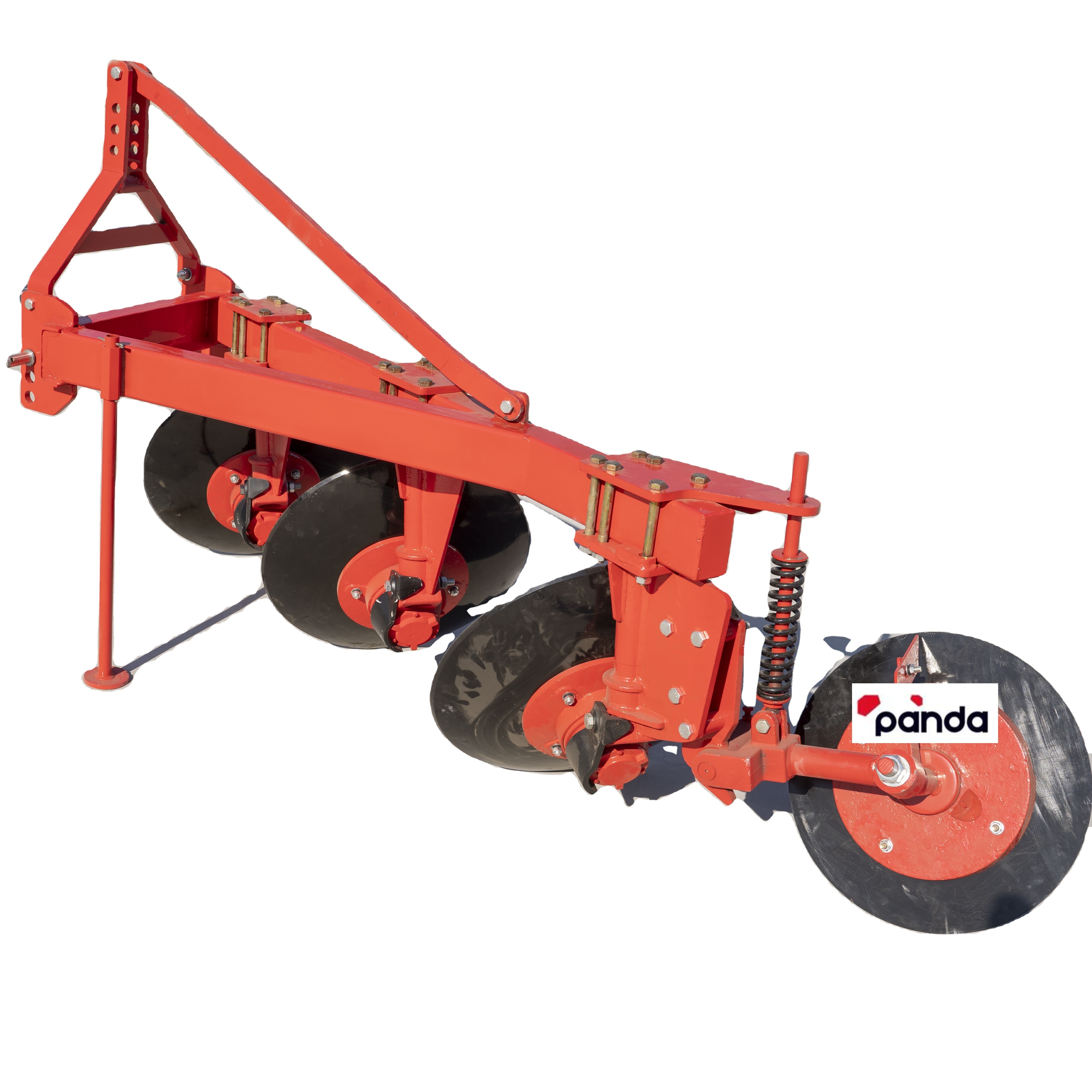

This series of disc plough is completely mounted with tractor, during oper- ation, the discs by its rotating to turn the soil, particularly, it is suitable for operation on the field with grasses, straw and stems of crops or plants, big soil resistance and with many stones and brickbat, etc. in the field. it is good at cutting the grasses and straw , free from being stopped by the grasses, soil or stones, etc. According to the structure can be divided into different forms of 1lTS series
Uses:
The disc plow provides quality and higher yield in plowing services in general and in the construction of contour lines. Tubular structure of greater strength. Adjustments simplified ensure the best fit for the job in any type of soil The discs and wheel hubs guide are assembled with tapered bearings. The discs produced to rigorous standards have high wear resistance and impact. Optional: Depth wheel, to help control the penetration of the discs. Complete wheel weight: 50 kg
