- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SHOW Q212S
-
Dimension:
-
W390 x D405 x H845 mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
1000W
-
Format:
-
N/A
-
Product Name:
-
Dual 12 inch subwoofer
-
Rated power:
-
1000W
-
Max power:
-
2000W
-
Peak power:
-
4000W
-
Nominal impedance:
-
4 Ω
-
Nominal sensitivity(1W@1m):
-
99 dB
-
Connector:
-
Stand 4 PIN phoenix connector
-
Speaker unit:
-
Ferrite driver 12" (300,dia.75mm voice coin 190 ) x 2
-
Enclosure:
-
15mmT + 18mmT MDF and metal mesh with paint spraying
-
Application:
-
Multi-functional hall, auditorium, lecture hall, conference room
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Deken
-
Model Number:
-
SHOW Q212S
-
Dimension:
-
W390 x D405 x H845 mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
1000W
-
Format:
-
N/A
-
Product Name:
-
Dual 12 inch subwoofer
-
Rated power:
-
1000W
-
Max power:
-
2000W
-
Peak power:
-
4000W
-
Nominal impedance:
-
4 Ω
-
Nominal sensitivity(1W@1m):
-
99 dB
-
Connector:
-
Stand 4 PIN phoenix connector
-
Speaker unit:
-
Ferrite driver 12" (300,dia.75mm voice coin 190 ) x 2
-
Enclosure:
-
15mmT + 18mmT MDF and metal mesh with paint spraying
-
Application:
-
Multi-functional hall, auditorium, lecture hall, conference room

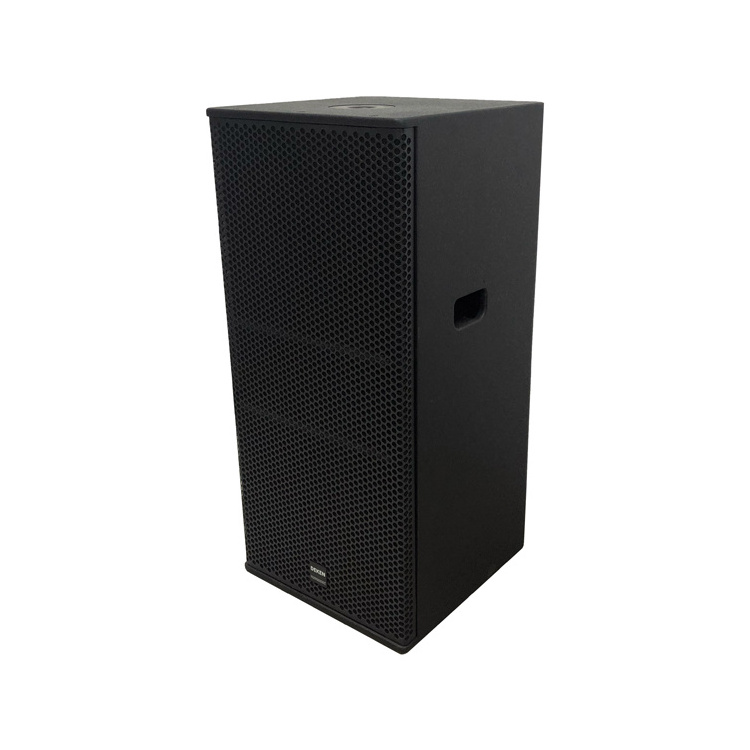

Deken SHOW Q212S Dual 12 inch 2 Unit Invverting Subwoofer Professional Line Array Sub Woofer 1000W Speaker Bass for Auditorium
Products Description
Features:
System type: 2-unit inverting subwoofer
Rated power：1000W
Max power：2000W
Peak power：4000W
Nominal impedance：4 Ω
Recommended power amplifier output rating：1200W—2000W@4 Ω
Nominal sensitivity（1W@1m）：99dB
Max SPL（Pmax@1m）：129dB@1000W(132dB@2000W)
Frequency response（-10dB）：35Hz—300Hz
Nominal coverage pattern（-6dB）：360°H×360°V
Speaker component：Ferrite driver 12″（300mm diameter 75mm voice coil190 magnetic）×2
Crossover modes： -----
Connector：Speakon NL4×2(PIN1+/POS. PIN1-/NEG.)
Enclosure：15mm（0.6″）+18mm（0.7″）plywood
Color：Default is black, other colors can be customized
Dimensions：W390mm x D405mm x H845mm
Weight(each) ：31.2kg
Shipping weight：35.4kg
Reference applications:：Multifunctional hall, auditorium, lecture hall, conference room
System type: 2-unit inverting subwoofer
Rated power：1000W
Max power：2000W
Peak power：4000W
Nominal impedance：4 Ω
Recommended power amplifier output rating：1200W—2000W@4 Ω
Nominal sensitivity（1W@1m）：99dB
Max SPL（Pmax@1m）：129dB@1000W(132dB@2000W)
Frequency response（-10dB）：35Hz—300Hz
Nominal coverage pattern（-6dB）：360°H×360°V
Speaker component：Ferrite driver 12″（300mm diameter 75mm voice coil190 magnetic）×2
Crossover modes： -----
Connector：Speakon NL4×2(PIN1+/POS. PIN1-/NEG.)
Enclosure：15mm（0.6″）+18mm（0.7″）plywood
Color：Default is black, other colors can be customized
Dimensions：W390mm x D405mm x H845mm
Weight(each) ：31.2kg
Shipping weight：35.4kg
Reference applications:：Multifunctional hall, auditorium, lecture hall, conference room
Specifications:
|
Product model
|
DEKEN SHOW Q212S
|
|
System type
|
Dual 12 inch subwoofer
|
|
Rated power
|
1000W
|
|
Max power
|
200W
|
|
Peak power
|
4000W
|
|
Nominal impedance
|
4 Ω
|
|
Recommended power amplifier output rating
|
1200W—2000W@4 Ω
|
|
Nominal sensitivity（1W@1m）
|
99 dB
|
|
Max SPL（Pmax@1m）
|
129dB@1000W(132dB@2000W)
|
|
Frequency response（-10dB）
|
35Hz - 300Hz
|
|
Nominal coverage pattern（-6dB）
|
360°H×3600°V
|
|
Speaker component
|
Ferrite driver 12" (300mm diameter 75mm voice coil 190 ) x 2
|
|
Crossover modes
|
--
|
|
Connector
|
Standard NL4 x 2( PIN1+/POS. PIN-/NEG)
|
|
Enclosure
|
15mm（0.6″)+ 18mm(0.7") MDF and metal mesh with paint spraying
|
|
Color
|
Default is black, other colors can be customized
|
|
Dimensions
|
W390mm x D405mm x H845mm
|
|
Weight(each)
|
31.2 kgs
|
|
Shipping weight
|
35.4 kgs
|
|
Reference applications:
|
Multifunctional hall, auditorium, lecture hall, conference room
|
Product details
About us
Project Solutions
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
Recommend Products
The main products：
Speaker：
Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.
Amplifier：
Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.
Public Address System：
IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
Production Flow
Our customer feedback
Packing & Delivery
FAQ
Q1. Can I have a sample order for loudspeaker?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2-5 days, mass production time needs 3-4 weeks for order quantity more than
Q3. Do you have any MOQ limit for loudspeaker order?
A: 5PCS MOQ, 2pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Sea. It usually takes 30-45 days to arrive. Airline also optional.
Q5. How to proceed an order for loudspeaker?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on loudspeaker product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
