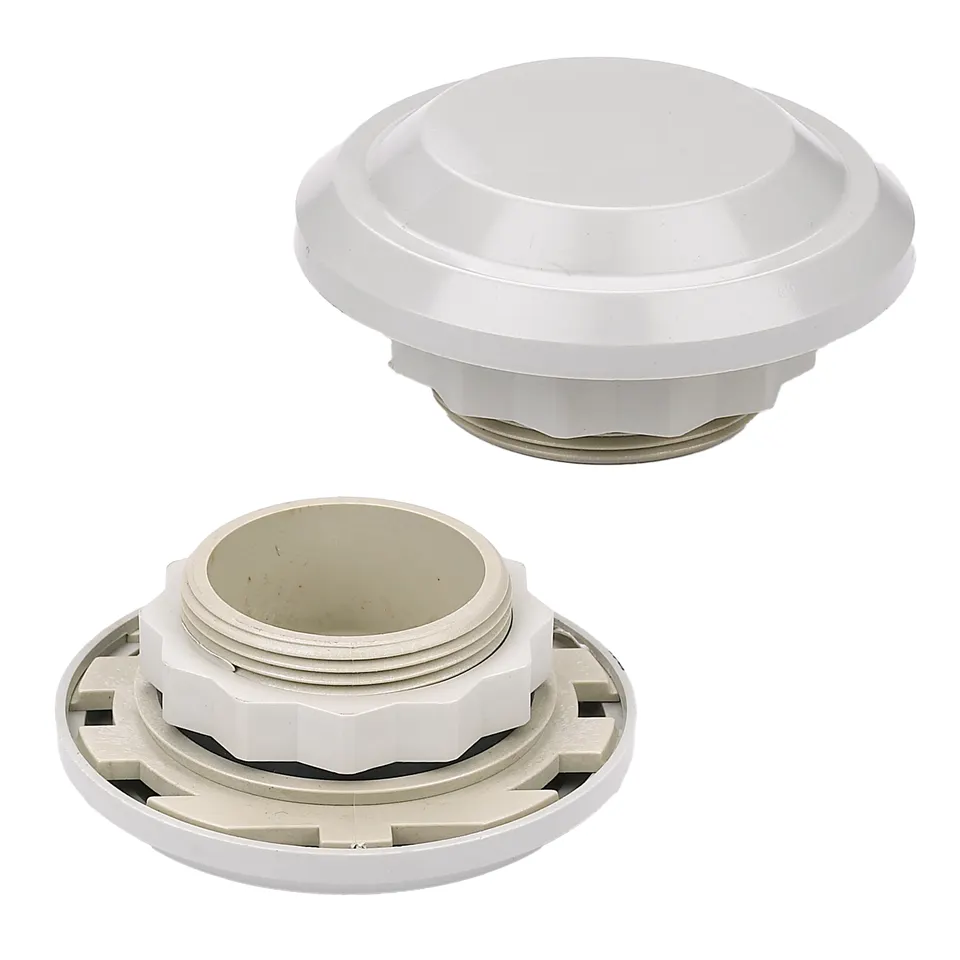

Natural DA 084 Plastic ventilation louvre PG29 IP55 Breathre Vent Plug

Natural DA 084 Plastic ventilation louvre PG29 IP55 Breathre Vent Plug

FOB Reference Price: Get Latest Price

≥10 Pieces

US $3.8

≥500 Pieces

US $3.6

≥1000 Pieces

US $3.3

≥5000 Pieces

US $2.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting:: PG 29 thread with union nut

Torque:: 5Nm (max. 10Nm)

Sealing:: sealing gasket NBR

Dimensions:: 65.5 x 30.5mm

Operating/Storage temperature:: -45 to +70°C (-49 to +158°F)

Art. No:: 08400.0-03

Protection type:: IP55

1 packing unit:: 1 pc

Weight (approx.):: 31g

Material:: plastic according to UL94 V-0

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Natural

Model Number:: DA 084

Mounting:: PG 29 thread with union nut

Torque:: 5Nm (max. 10Nm)

Sealing:: sealing gasket NBR

Dimensions:: 65.5 x 30.5mm

Operating/Storage temperature:: -45 to +70°C (-49 to +158°F)

Art. No:: 08400.0-03

Protection type:: IP55

1 packing unit:: 1 pc

Weight (approx.):: 31g

Material:: plastic according to UL94 V-0

Products Description

DA 084
Mounting	PG 29 thread with union nut
Torque	5Nm (max. 10Nm)
Material	plastic according to UL94 V-0, light grey weather proof and UV light resistant according to UL746C (f1)
Sealing	sealing gasket NBR
Air interface	approx. 1.5cm²
Dimensions	Ø 65.5 x 30.5mm
Fitting position	vertical¹
Operating/Storage temperature	-45 to +70°C (-49 to +158°F)

> High degree of protection
> Easy to install

It has become more and more important to provide a protected enclosure environment for valuable and crucial electrical and
electronic components. In a tightly closed enclosure, pressure differentials can occur during extreme temperature variations. The
specially designed pressure compensation device DA 084 permits a controlled change in pressure and avoids the enterring of dust
and water. The pressure compensation device is suitable for the use in enclosures and housings in accordance with DIN EN 62208.

Installation: Make cut-out Ø37+1mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
