Quick Details
-
Brand Name:
-
EAST CONDUIT
-
Model Number:
-
CONDUIT
-
Interior Surface:
-
Smooth
-
Length:
-
10Ft(3.05m)
-
Process:
-
Hot Dip Galvanized
-
Trade Size:
-
1/2"-4"
-
Secondary Or Not:
-
Non-secondary
-
Keyword:
-
EMT Pipe
-
Usage:
-
Wiring Works
-
MOQ:
-
One 20GP Container
-
Standard:
-
UL797/ANSI C80.3
-
Character:
-
Excellent ductility
Quick Details
-
Type:
-
EMT CONDUIT
-
Material:
-
Carbon Steel Coil
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EAST CONDUIT
-
Model Number:
-
CONDUIT
-
Interior Surface:
-
Smooth
-
Length:
-
10Ft(3.05m)
-
Process:
-
Hot Dip Galvanized
-
Trade Size:
-
1/2"-4"
-
Secondary Or Not:
-
Non-secondary
-
Keyword:
-
EMT Pipe
-
Usage:
-
Wiring Works
-
MOQ:
-
One 20GP Container
-
Standard:
-
UL797/ANSI C80.3
-
Character:
-
Excellent ductility

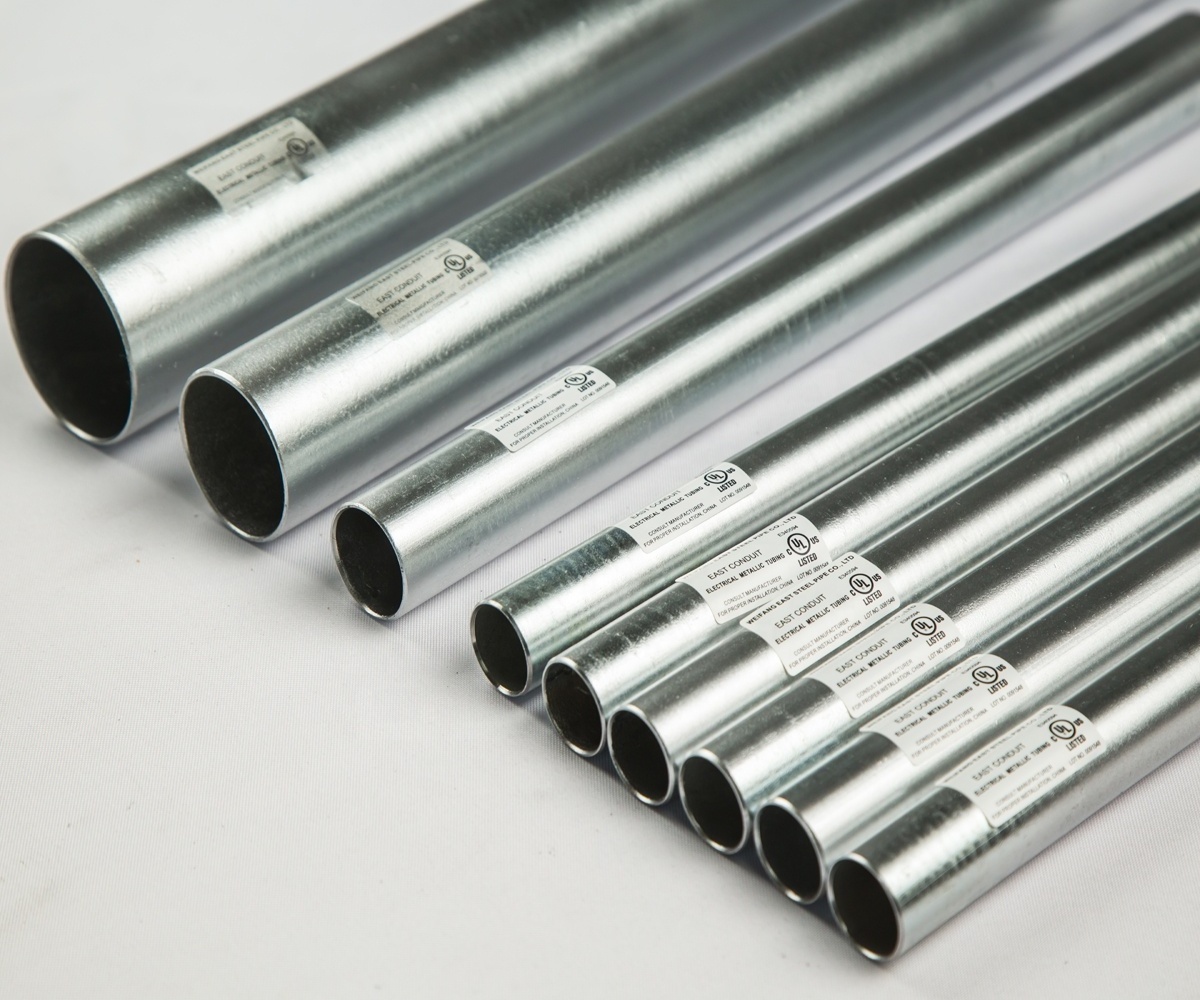

Electrical Metallic Tubing ( EMT )
General
EMT is manufactured from high-strength steel coil , and produced according to the standard of ANSI C80.3(UL797) . The interior surface of our conduit is free from defect with a smooth welded seam . It is hot dipped galvanized inside and outside, so that metal-to-metal contact and galvanic protection against corrosion are provided, and the surface of the conduit is coated with a clear lacquer coating to inhibit white rust and increase corrosion resistance. The interior surface provides a smooth continuous raceway for easy wire pulling. Our EMT conduit has excellent ductility, providing for uniform bending and cutting.
- Length: 3050mm or according to customer’s requirement
- Usage : T hrough the electrical wires with the purpose of protection for the electrical raceway system
-
Surface finished
: Hot
D
ip
G
alvanized(HDG).
- Material : C arbon S teel C oil
- Package: T he conduits coverd with pvc paper then tied with steel straps
- Delivery time: 20 to 30 days after we receive your advance payment or copy of L/C
- Payment Term : L/C at sight or T/T
-
UL Certificate No. : E340594(177709-001)
Dimension and Weight Chart
|
Nominal Wt. per 100Ft (30.5M) |
Nominal Wall Thickness |
||||||
|
U.S. |
Metric |
Lbs |
Kg |
In. |
mm |
In. |
mm |
|
16 |
30 |
13.5 |
0.706 |
17.93 |
0.042 |
1.07 |
|
|
3/4 |
21 |
46 |
20.7 |
0.922 |
23.42 |
0.049 |
1.24 |
|
1 |
27 |
67 |
30.6 |
1.163 |
29.54 |
0.057 |
1.45 |
|
1-1/4 |
35 |
101 |
45.6 |
1.510 |
38.35 |
0.065 |
1.65 |
|
1-1/2 |
41 |
116 |
52.8 |
1.740 |
44.20 |
0.065 |
1.65 |
|
2 |
53 |
148 |
67.2 |
2.197 |
55.80 |
0.065 |
1.65 |
|
2-1/2 |
63 |
216 |
97.9 |
2.875 |
73.03 |
0.072 |
1.83 |
|
3 |
78 |
26 3 |
119.3 |
3.500 |
88.90 |
0.072 |
1.83 |
|
3-1/2 |
91 |
34 9 |
158 .3 |
4.000 |
101.60 |
0.083 |
2.11 |
|
4 |
103 |
39 3 |
178. 3 |
4.500 |
114.30 |
0.083 |
2.11 |
Applicable Tolerances:
Length : 10Ft (3.05m) ± ¼” (±6 mm).
Outside Diameter : ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.5 0 mm)
Specifications
East Conduit EMT pipe is manufactured in accordance with the latest edition of the following:
- American National Standard for Rigid Steel EMT (ANSI® C80.3)
- Underwriters Laboratories Standard for EMT-Steel (UL797)
- National Electric Code® 2002 Article 358 (1999 NEC® Article 348)
