Quick Details
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
80 kN
-
Theoretical Shot Volume(cm³):
-
918 cm³
-
Injection Rate (g/s):
-
272 g/s
-
Injection Weight (g):
-
826 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
21.5
-
Distance between Tie Bars:
-
640X640 mm
-
Weight (KG):
-
1080
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
580 mm
-

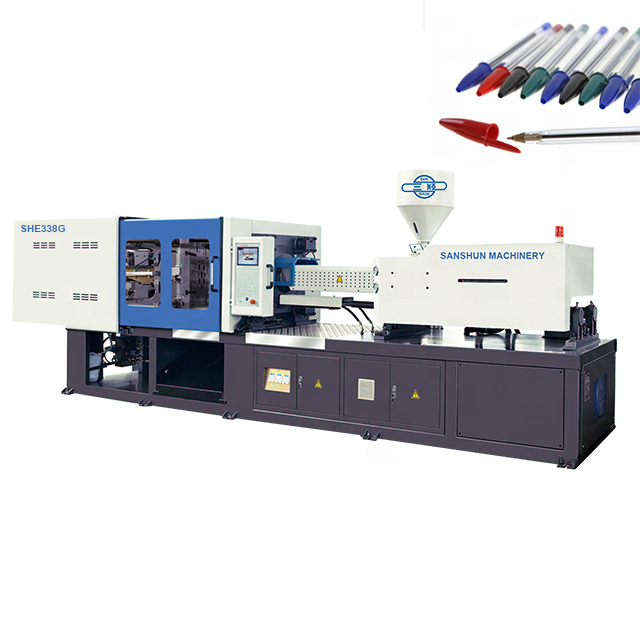

Model Number:
-
SHE338G
-
Brand Name:
-
SANSHUN
-
Power (kW):
-
40 kW
-
Clamping Force:
-
3380 KN
-
Injection Pressure:
-
168 Mpa
-
Servo Motor Power:
-
40 KW
-
Machiner Dimensions:
-
6.7x2.0x2.05 m
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
India
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ISO9001 CE
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
640mm
-
Distance between Tie Bars(Height)(mm):
-
640mm
-
Mold Height(mm):
-
270 - 650 mm
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
80 kN
-
Theoretical Shot Volume(cm³):
-
918 cm³
-
Injection Rate (g/s):
-
272 g/s
-
Injection Weight (g):
-
826 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
60 mm
-
Screw L/D Ratio:
-
21.5
-
Distance between Tie Bars:
-
640X640 mm
-
Weight (KG):
-
1080
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
580 mm
-
Model Number:
-
SHE338G
-
Brand Name:
-
SANSHUN
-
Power (kW):
-
40 kW
-
Clamping Force:
-
3380 KN
-
Injection Pressure:
-
168 Mpa
-
Servo Motor Power:
-
40 KW
-
Machiner Dimensions:
-
6.7x2.0x2.05 m
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
India
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ISO9001 CE
Product Description
Specification
|
MODEL
|
SHE338G
|
|
|
||
|
INJECTION UNIT
|
UNIT
|
A
|
B
|
||
|
Screw diameter
|
mm
|
58
|
60
|
||
|
Shot size(theoretical)
|
cm³
|
858
|
918
|
||
|
Shot weight
|
g
|
772
|
826
|
||
|
Injection pressure
|
Mpa
|
180
|
168
|
||
|
Injection rate
|
g/s
|
254
|
272
|
||
|
Screw L/D ratio
|
L/D
|
22.2
|
21.5
|
||
|
Screw speed
|
r.p.m
|
0-180
|
|
||
|
Nozzle Sphere Diameter
|
Srmm
|
12
|
|
||
|
CLAMPING UNIT
|
|
|
|
||
|
Clamp tonnage
|
KN
|
3380
|
|
||
|
Toggle stroke
|
mm
|
580
|
|
||
|
Mould Thickness
|
mm
|
270-650
|
|
||
|
Space between tie-bars
|
mm
|
640X640
|
|
||
|
Ejector stroke
|
mm
|
160
|
|
||
|
Ejector tonnage
|
KN
|
80
|
|
||
|
Ejector number
|
Piece
|
13
|
|
||
|
Hole Diameter
|
mm
|
160
|
|
||
|
OTHERS
|
|
|
|
||
|
Heat power
|
KW
|
19.5
|
|
||
|
Max. pump pressure
|
MPa
|
16
|
|
||
|
Servo motor power
|
KW
|
40
|
|
||
|
Valve Size
|
mm
|
25
|
|
||
|
Machine dimension
|
m
|
6.7X2.0X2.05
|
|
||
|
Machine weight
|
t
|
10.8
|
|
||
|
Oil tank capacity
|
L
|
400
|
|
||
