Quick Details
-
Color:
-
black
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MG-550
-
Brightness:
-
500nits
-
Display Ratio:
-
16:9
-
Response Time:
-
8ms
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
60000
-
IP Rating:
-
55
-
Installation Type:
-
wall mount
-
HS Code:
-
8528591090
-
Resolution:
-
1920*1080
-
View Angle（H/V）:
-
178/178
-
Iterm:
-
55 inch L G video wall in 3.5mm bezel
-
Contrast Ration:
-
1000:1
-
Max resolution:
-
1920*1080
-
Interface:
-
HD MI,DVI,VGA,BNC
-
Life:
-
at least 60,000 hours
-
Dot pitch:
-
0.270mm(H) x 0.270mm(W)
-
Payment:
-
T/T L/C Paypal Western Union
-
Port:
-
HD MI, DVI, USB, RS232, DP
Quick Details
-
Application:
-
Indoor
-
Type:
-
LCD
-
Brand Name:
-
GENEVISION, GENEVISION
-
Color:
-
black
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MG-550
-
Brightness:
-
500nits
-
Display Ratio:
-
16:9
-
Response Time:
-
8ms
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
60000
-
IP Rating:
-
55
-
Installation Type:
-
wall mount
-
HS Code:
-
8528591090
-
Resolution:
-
1920*1080
-
View Angle（H/V）:
-
178/178
-
Iterm:
-
55 inch L G video wall in 3.5mm bezel
-
Contrast Ration:
-
1000:1
-
Max resolution:
-
1920*1080
-
Interface:
-
HD MI,DVI,VGA,BNC
-
Life:
-
at least 60,000 hours
-
Dot pitch:
-
0.270mm(H) x 0.270mm(W)
-
Payment:
-
T/T L/C Paypal Western Union
-
Port:
-
HD MI, DVI, USB, RS232, DP
|
|

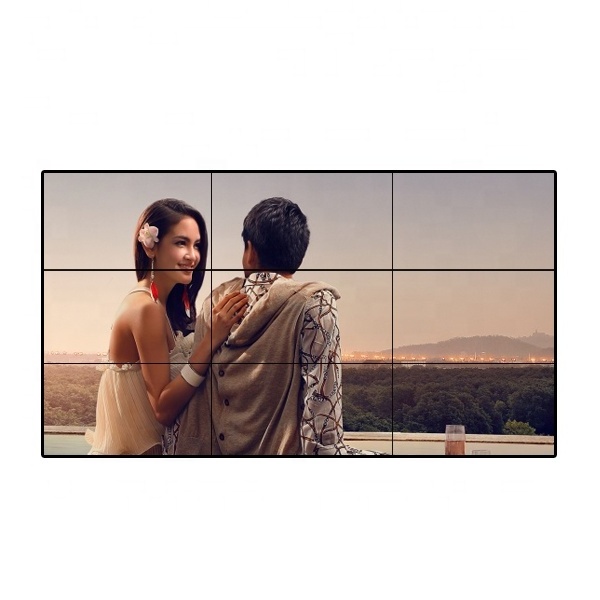

46inch, 55inch and 65inch 3.5mm bezel 500nits LCD video wall
Specification
|
Specification/Model |
MD-550 |
|
Panel Size |
LCD-DID |
|
Screen Aspect Ratio |
16:9 |
|
Visual Angle |
Horizontal 178/Vertical178 |
|
Brightness |
500cd/sqm |
|
Contract Ratio |
1200:1 |
|
Resolution Ratio |
1920*1080 |
|
Color Components |
16.7M |
|
Response Time |
8ms |
|
Power Consumption of Stand-alone |
108W |
|
Power Supply |
Input:AC110-240V-50/60Hz |
|
Service Life of Panel |
60000Hours |
|
Dimension of Machine Frame(± 1mm) |
(Width)1047.4mm*(Height)600.6mm |
|
Size of Shell Frame(± 1mm) |
Single side one the right and the left:11mm/single side on top and bottom:11mm |
|
Panel Display Area |
(Width)1209mm*(Height)680mm |
|
Shell Color |
Black |
|
Installation |
Wall-mounted |
|
Net Weight(approximate) |
27.5kg |
|
Working Humidity |
10%-90% |
|
Working Temp. |
0-60 Celsius degree |
|
Input Port |
3*BNC, 1*VGA, 1*DVI,1*HD MI |
|
VGA/DVI Resolution Ratio |
640*480,800*600,1024*768,1280*1024, 1600*1200,1920*1080 |
|
HD MI Resolution Ratio HD MI |
480I,480P,576I,720P,1080I,1080P |
|
Output Port |
1 Video output(BNC) |
|
Split Screen/PIP Mode |
Two signals image or PIP |
|
Splice Function |
Multiscreen Splice Function(image processing Function) |
Application
|
Business Organizations |
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
|
|
Financial Organizations |
Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
|
|
Public Places |
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
|
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
|
