Quick Details
-
Pins:
-
8P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TC6H6DA
-
product:
-
FTP CAT6A Plug
-
Suit for cable tyle:
-
CABLE
-
Free sample:
-
10PCS
-
service:
-
OEM/ODM
-
Certification:
-
UL,CSA,CE,SGS,ROHS,ISO:9001
-
Material:
-
PC
-
Color:
-
Normally transparent color, color can be customized
-
Rated Current:
-
UL94-V2
-
Contact material:
-
Brass copper
-
Contact gold plating:
-
FU, 3U, 6U, 15U, 30U, 50U for optional
Quick Details
-
Type:
-
Other
-
Application:
-
Other
-
Gender:
-
Male
-
Pins:
-
8P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TC6H6DA
-
product:
-
FTP CAT6A Plug
-
Suit for cable tyle:
-
CABLE
-
Free sample:
-
10PCS
-
service:
-
OEM/ODM
-
Certification:
-
UL,CSA,CE,SGS,ROHS,ISO:9001
-
Material:
-
PC
-
Color:
-
Normally transparent color, color can be customized
-
Rated Current:
-
UL94-V2
-
Contact material:
-
Brass copper
-
Contact gold plating:
-
FU, 3U, 6U, 15U, 30U, 50U for optional
Product Description

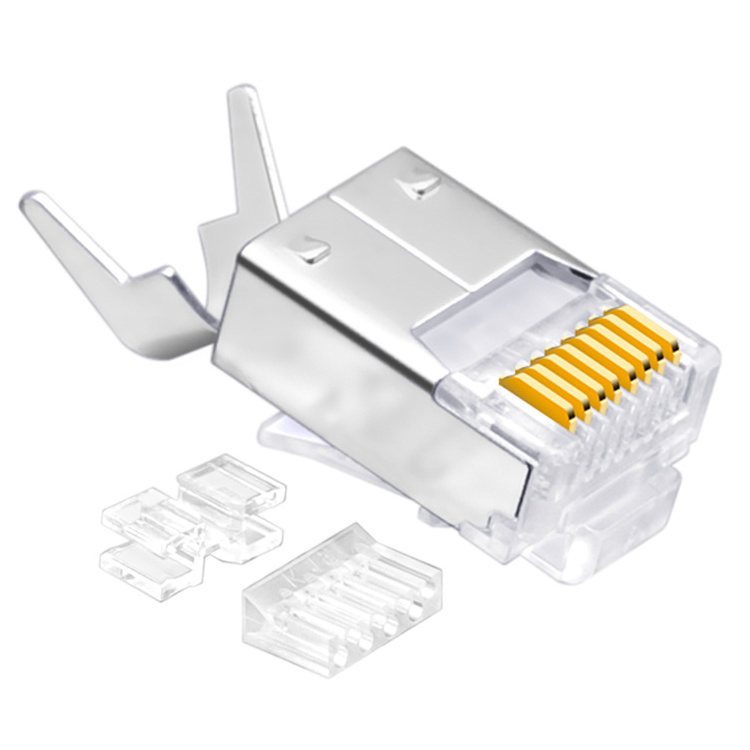

Factory direct sale High quality FTP Cat6a RJ45 mini 8p8c plug three Pieces short body small rj45 connector
|
PLUG SPECIFICATIONS
*UL 1863 No. 137614(DUXR2), complies with FCC part 68 subpart F standards. |
|
| Electrical Test | 1..Dielectric Withstanding Voltage test 1000V/DC |
| 2. Insulation Resistance: >500MΩ | |
| 3. Contact Resistance:<20MΩ | |
|
Gold Plate Inspection (Per MIL-G-45204C) |
1. TYPE II (99% pure gold minimum) |
| 2. Grade C+(KNOOP HARDNESS RANGE 130~250) | |
| 3. Class 1(50 microinches minimum thickness) | |
| Mechanical | 1. Cable-to-plug tensile strength-20LBs(89N) min. |
| 2. Durability:2000 mating cycles. | |
| Material & Finish |
1. Housing Material: Polycarbonate(PC.)
94V-2(For UL 1863 DUXR2) |
| 2. Contact blade: Brass | |
| a. High strength copper alloy [JIS C5191R-H(PBR-2)]. | |
| b.100 microinches nickel under plated & Gold selected. | |
|
Operating Temperature:-40 ℃~+125℃ |
|
