Quick Details
-
Brand Name:
-
Neutral brand
-
Main Chipset:
-
RTL9601D
-
Protocol Standard:
-
ITU-T G.984.1/2/3/4
-
Interface:
-
1 GPON+1*RJ45 LAN
-
LED:
-
POWER/PON/LOS/LAN
-
Remote control:
-
OLT
-
Flash:
-
8MB
-
RAM:
-
64RAM
-
Receiving sensitivity:
-
≤-28dBm
-
Power adapter:
-
DC power adapter
-
Product name:
-
Realtek chipset 1GE GPON/EPON ONU with one Lan port
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
PG001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Neutral brand
-
Main Chipset:
-
RTL9601D
-
Protocol Standard:
-
ITU-T G.984.1/2/3/4
-
Interface:
-
1 GPON+1*RJ45 LAN
-
LED:
-
POWER/PON/LOS/LAN
-
Remote control:
-
OLT
-
Flash:
-
8MB
-
RAM:
-
64RAM
-
Receiving sensitivity:
-
≤-28dBm
-
Power adapter:
-
DC power adapter
-
Product name:
-
Realtek chipset 1GE GPON/EPON ONU with one Lan port

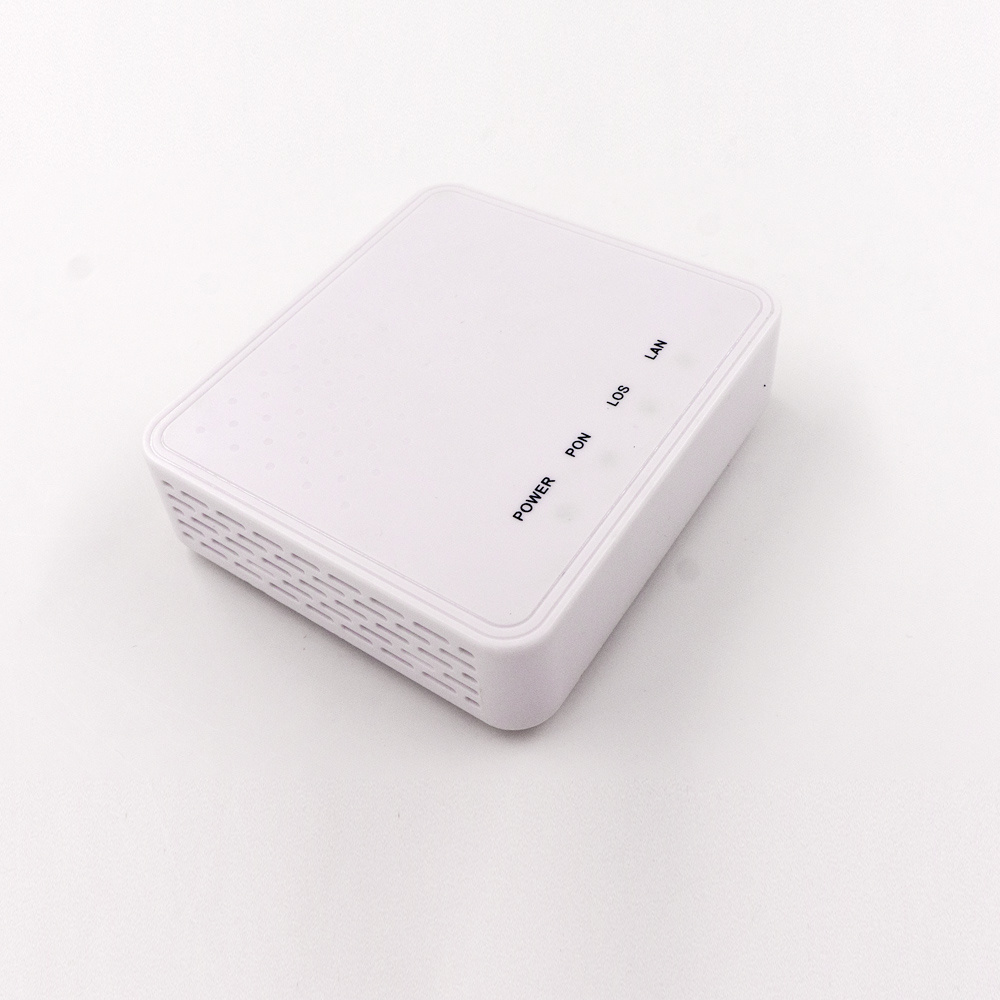

Realtek chipset 1GE GPON/EPON ONU with one Lan port
1.Product Features:
u Integrated GPON / EPON port, meet ITU-T G.984
u 1*10/100/1000M adaptive LAN port.Support automatic flip (Auto MDI/MDIX).
u Support one-button RESET function .
u Support IEEE802.1Q VLAN protocol.
u Support IEEE802.3ah-based OAM management protocol for remote management via OLT
u Support remote loopback and network status diagnosis
u Support WPA, WPA-PSK/TKIP, WPA2, WPA2-PSK/AES, 4 SSID, WMM, other security encryption modes
ZBT-PG001 is passive optical network client products which launched by our company based on GPON technology in the broadband access market. The product is met the needs of Telecom operators FTTO (office), FTTD (desktop), FTTH (home) users.It provides high-bandwidth access based on GPON, and realizes comprehensive services, such as data and video etc.
It is used in ZTE high performance ZX279125 chipset which included GPON/EPON/P2P 3 molds.Comply with the GPON standard of ITU-T G.984 and G.983, and the technical requirements of EPON equipment of 802.3-2005 and CTC.Good xPON interoperability. Interoperability with GPON Optical Line Terminal (OLT) of mainstream communication vendors such as (Zhongxing/Fiber-Home/Alang).It is high reliable and provides quality service (OOS) assurance,easy to manage, flexible upgrade, expansion and networking features.The performance indicators of the equipment are in full compliance with the technical regulations such as ITU-TG.984.x and IEEE802.3ah.
|
|
|
|
C hip set |
ZX27912 5 ARM Cotex A9 CPU/600MHz |
|
RAM |
Built-in SD RAM 32MB memory, up to 166MHz clock rate Built-in 16KB I-Cache, 16KB D-Cache |
|
FLASH |
SPI 8MB (up to 16MB) |
|
Protocol standard |
ITU-T G.984.1/2/3/4 IEEE802.3ah-based OAM management protocol |
|
RF Output Power |
Transmitting optical power: 1~+4dBm |
|
RX Sensitivity |
Receiving sensitivity: ≤-28dBm |
|
G PON mode |
2.5G GPON Access function . Down : 2.488Gbps .Up: 1.244Gbps . Down: 2.5Gbps/ Up: 1.25Gbps |
|
E PON Mode |
1.25G EPON Access function , Up/ down: 1.25Gbps |
|
I nterface |
1 * PON ( optical fiber) interface,1* 100 0 M Automatic adaptation to Ethernet interface |
|
LED |
POWER/PON/LOS/LAN |
|
Button |
1 * Reset , |
|
Power Adapter |
DC 12/0.5A |
|
Product maximum power consumption |
< 3 W |
|
S ize |
90mm(L)×80mm(W)×25mm(H) |
|
W orking environment |
Operating temperature:
0℃
-
6
0℃;
Working humidity:
10%
-
9
5
%RH Non-condensing
|
|
Certification |
3C , FCC , CE . |
