Quick Details
-
Frequency range:
-
35 Hz -20 kHz
-
Maximum sound pressure level:
-
147 dB
-
Sensitivity:
-
118dB SPL 1w/1m
-
Input impedance:
-
LF2 x 8 ohms MF 8 ohms HF 16 ohms
-
Rated power:
-
Rated power LF 2 x 450 W MF 4 x 320 W HF 2 x 160 W
-
Configuration:
-
HF 2x75 core neodymium magnet
-
MF speaker:
-
4x6.5 inch 50 core 135 magnet
-
LF speaker:
-
2 X 12 inch 75 core neodymium magnet
-
Box size/height/width/depth:
-
35 x 130 x 40 cm
Quick Details
-
Material:
-
ABS
-
Place of Origin:
-
CHINA
-
full frequency speaker:
-
Double 12 inch
-
Frequency range:
-
35 Hz -20 kHz
-
Maximum sound pressure level:
-
147 dB
-
Sensitivity:
-
118dB SPL 1w/1m
-
Input impedance:
-
LF2 x 8 ohms MF 8 ohms HF 16 ohms
-
Rated power:
-
Rated power LF 2 x 450 W MF 4 x 320 W HF 2 x 160 W
-
Configuration:
-
HF 2x75 core neodymium magnet
-
MF speaker:
-
4x6.5 inch 50 core 135 magnet
-
LF speaker:
-
2 X 12 inch 75 core neodymium magnet
-
Box size/height/width/depth:
-
35 x 130 x 40 cm
Product Description

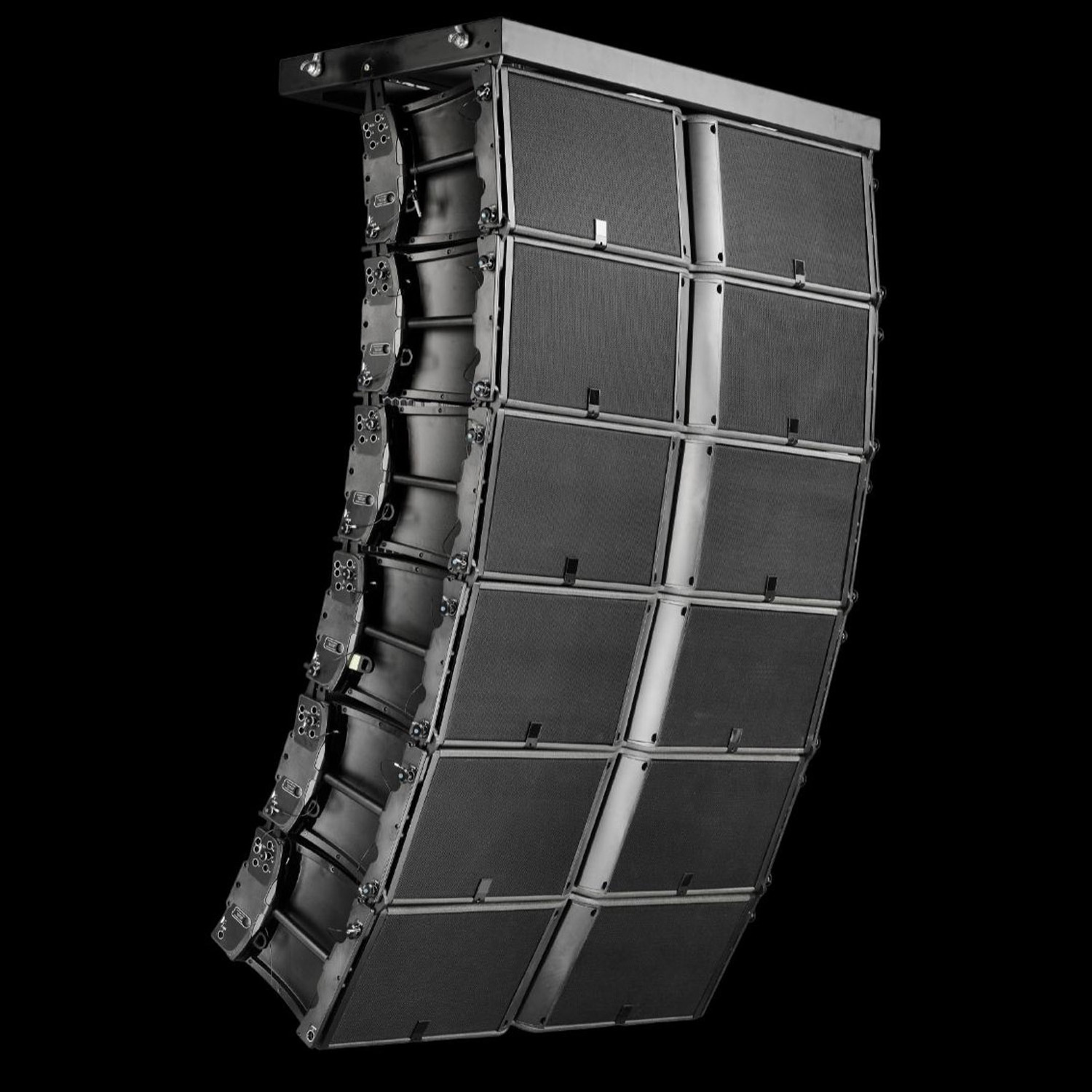

Double 12 inch linear array full frequency speaker
System type: Double 12 inch three division linear array full frequency speaker
Frequency range: 35 Hz -20 kHz
Maximum sound pressure level: 147 dB
Sensitivity: 118dB SPL 1w/1m
Input impedance: LF2 x 8 ohms MF: 8 ohms HF: 16 ohms
Rated power: LF 2 x 450 W MF: 4 × 320 W HF: 2 × 160 W
Configuration: HF: 2x75 core neodymium magnet
MF: 4x6.5 inch/50 core 135 magnet
LF: 2 * 12 inch/75 core neodymium magnet
Sound field radiation range: Horizontal: 110 °/70 ° symmetrical; 90 ° asymmetric (35 °/55 ° or 55 °/35 °)
Input interface: 1 x 8-point PA-COM
Box size/height/width/depth: 350mmx 1288mm x 395mm
Net weight (piece): 61 kg
Suitable for permanent installation, as well as large-scale sound reinforcement systems for touring performances, from theaters to sports venues
Adopts advanced frequency response testing technology in the industry, with a triple frequency design and dual 75 core neodymium iron high pitched sound, providing strong penetration throughout the entire system. The quad mid pitch design provides a fuller and clearer vocal, effectively narrowing or expanding the horizontal direction from 300 Hz. This technology can achieve multiple purposes: adapting to the width of the widened area, meeting the requirements of long and short distance coverage/sound pressure, reducing or expanding overlapping areas, and avoiding reflective surfaces. Therefore, K2 can match the complex shapes of any audience with the best sound performance and minimal noise pollution.
Specification
|
item
|
value
|
|
Material
|
ABS
|
|
Place of Origin
|
CHINA
|
|
Channels
|
2.1
|
|
Color
|
Black
|
|
Number of speakers
|
3
|
|
Private Mold
|
Yes
|
|
Woofer Size/Full-Range Size
|
12"
|
|
full frequency speaker
|
Double 12 inch
|
|
Frequency range
|
35 Hz -20 kHz
|
|
Maximum sound pressure level
|
147 dB
|
|
Sensitivity
|
118dB SPL 1w/1m
|
|
Input impedance
|
LF2 x 8 ohms MF: 8 ohms HF: 16 ohms
|
|
Rated power
|
Rated power: LF 2 x 450 W MF: 4 × 320 W HF: 2 × 160 W
|
|
Configuration
|
HF: 2x75 core neodymium magnet
|
|
MF speaker
|
4x6.5 inch/50 core 135 magnet
|
|
LF speaker
|
2 X 12 inch/75 core neodymium magnet
|
|
Box size/height/width/depth
|
350mmx 1288mm x 395mm
|
Packing & Delivery
4PCS/Carton
