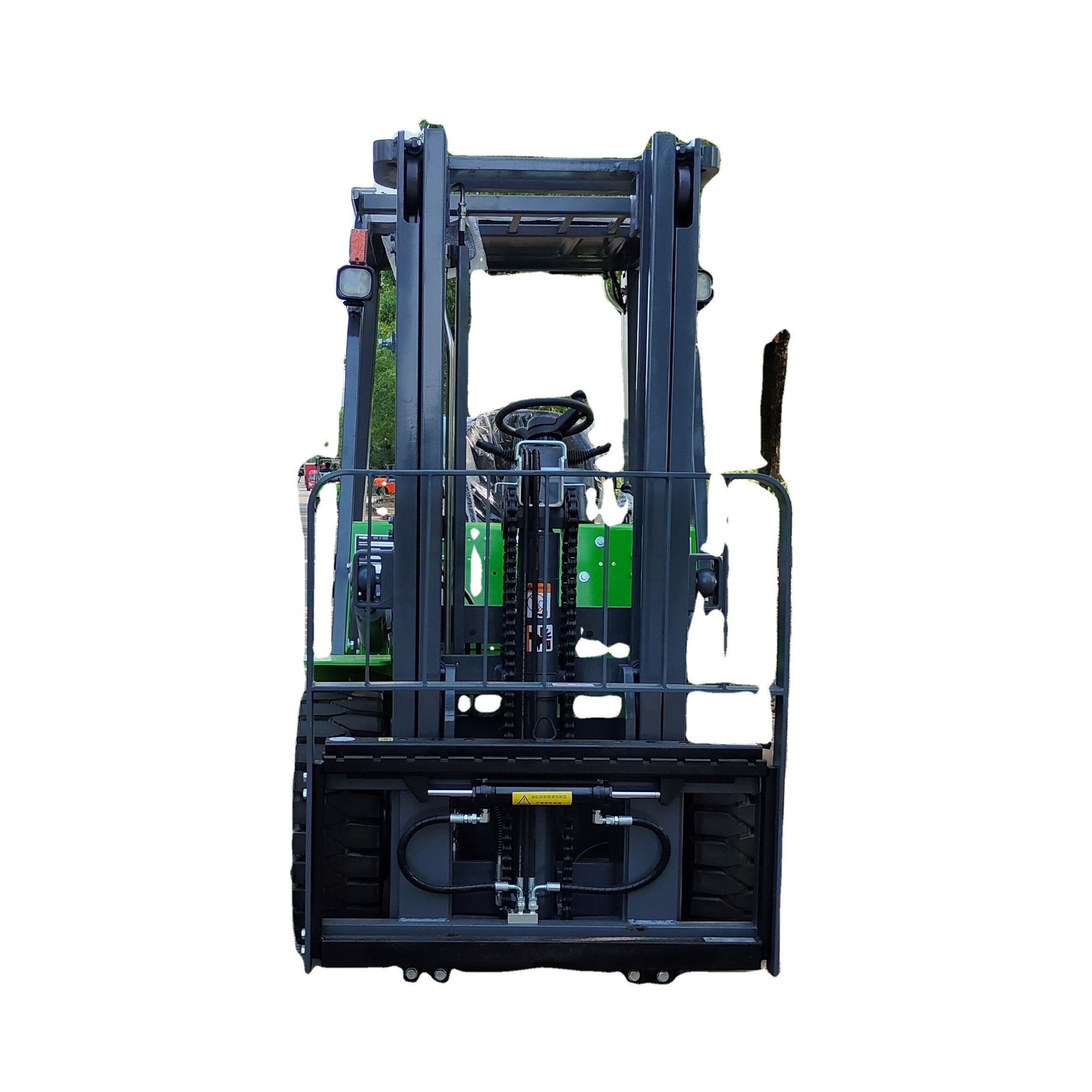

forklift lpg 3 ton FL 30 China SNSC brand lpg forklift with 3M Lifting height with Block Clamp

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8750

≥4 Pieces

US $8430

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SNSC

Fork Length:: 920mm

Fork Width:: 100mm

Overall Dimensions:: 1070*125*45mm

Weight (KG):: 4250 kg

After-sales Service Provided:: Overseas third-party support available

Engine:: Japan Nissan k25

Transmission:: Automatic

Steering Gear:: USA EATON Redirector

Hydraulic System:: Japan SHIMADZU Brand

Radiator:: Copper Material

Lifting Height Mast:: 3mts to 7mts reach

Tires:: Pneumatic or Solid

Overhead Guard:: Ramjet Waterproof

Brand:: SNSC ZOOMLION

Quick Details

Min. Lifting Height:: 145mm

Warranty:: 1 Year

Place of Origin:: Anhui, China

Brand Name:: SNSC

Fork Length:: 920mm

Fork Width:: 100mm

Overall Dimensions:: 1070*125*45mm

Weight (KG):: 4250 kg

After-sales Service Provided:: Overseas third-party support available

Engine:: Japan Nissan k25

Transmission:: Automatic

Steering Gear:: USA EATON Redirector

Hydraulic System:: Japan SHIMADZU Brand

Radiator:: Copper Material

Lifting Height Mast:: 3mts to 7mts reach

Tires:: Pneumatic or Solid

Overhead Guard:: Ramjet Waterproof

Brand:: SNSC ZOOMLION

SNSC --"Beyond your needs!"

SNSC Forklift informs a complete industiral vehicle system including internal combustion type, battery type, LPG type, storage type, listing as below:

Diesel forklift: FD15, FD18, FD20, FD25, FD30, FD35, FD40, FD50, FD60, FD70, FD80, FD100

Electric forklift: FB15, FB20, FB25, FB30, FB35

LPG&Gasoline forklift: FL15, FL18, FL20, FL25, FL30, FL35

Warehouse equipment: manual pallet truck, electric palletr truck, electric stacker truck, electric reach truck, electric tractor.

SNSC --"Beyond your needs!"

SNSC Forklift informs a complete industiral vehicle system including internal combustion type, battery type, LPG type, storage type, listing as below:

Diesel forklift: FD15, FD18, FD20, FD25, FD30, FD35, FD40, FD50, FD60, FD70, FD80, FD100

Electric forklift: FB15, FB20, FB25, FB30, FB35

LPG&Gasoline forklift: FL15, FL18, FL20, FL25, FL30, FL35

Warehouse equipment: manual pallet truck, electric palletr truck, electric stacker truck, electric reach truck, electric tractor.

Product Description

3tons gas fork lift propane 3tons for sale forklift

Engine: Japan Nissan K25 Engine
Mast: 2-stage standard mast, 2-stage full free mast, 3-stage full free mast, mast height range from 3000-7000mm
Hydraulic system: all adopt Japan SHIMADZU pump and valves ;
Tires: Pneumatic tires/Solid tires/Environment-friendly solid tires/High Elastic Solid tires
Transmission: Electric Hydraulic Automatic Transmission;
Seat: Stand seat/ Adjustable Fully Suspension Duluxe Seat with safety belt
Exhaust: Middle Exhaust/Higher Exhaust
Options: Side shifter, Fork positioner, Cabin, Double air filter, Attachments such as paper roll clamp, block clamp, bale clamp,
rotator, buckets, etc.

Specifications						Unit	FL30	FL35
1	Features	Power type		-	LPG/Gasoline	LPG/Gasoline
2			Rated load		kg	3000	3500
3			Load center		mm	500	500
4			Lifting Height		mm	3000	3000
5			Free lifting height		mm	145	145
6			Fork size	LxWxT	mm	1070X125X45	1070X125X50
7			Mast Tilt Angle	Front/Read	°	6/12	6/12
8			Min. Turning Radius		mm	2600	2600
9			Min. Stacking Right Angle Channel Width		mm	4550	4550
10			Min. Ground Clearance	Mast	mm	120	120
11			Overhear Guard Height		mm	2170	2170
12			Front Overhang		mm	480	480
13			Rear Overhang		mm	545	545
14	Performances	Max. Travelling Speed	loaded	Km/h	20	20
15			Max. Lifting Speed	loaded/empty	mm/s	470/520	470/520
16			Max. Traction Force	loaded	KN	18	18
17			Max. Climbing Ability		°	20	20
18	Dimension	Overall Length	without fork	mm	2705	2746
19			Overall Width		mm	1230	1230
20			Mast Lowered Height		mm	2055	2095
21			Mast Extended Height		mm	4256	4256
22	Chassis	Tyre	Front	-	28x9-15-12PR	28X9-15-12PR
23		Tyre			Rear	-	6.50-10-10PR	6.50-10-10PR
24			Wheel Base		mm	1800	1800
25			Wheel Thread	Front/Rear	mm	1000/970	1000/970
26			Weight(without load)		kg	4350	4850
27	Powertrain	Battery		V/Ah	12/90	12/90
28			Engine	Model	-	Nissan K25	Nissan K25
29					Rated Power	KW/r.p.m	37.4/2300	37.4/2300
30					Rated Torque	N.m/r.p.m	176.5/1600	176.5/1600
31					No. of cylinder		-	4	4
32					Bore x Stroke	mm	89 x 100	89 x 100
33			Displacement		L	2.488	2.488
34			Fuel Tank Capacity		L	70	70
35			Transmission/Shift		-	1/1 Powershift
36			Operation Pressure		MPa	17.5	17.5

Detailed Images

Nissan K25 Engine

Nissan K25 Engine comply with

U.S.A ECA and CA standard

2-stage 3m wide view mast

3-stage 4.5m full free mast

3-stage 6m full free mast

Waterproof Overhead Guard with transparent plastic cover

LED Digital Gauge Dashboard

Fully Suspension Duluxe Seat with safety belt and armrest

Triangle wide view back mirror

Air inlet at high position

Solid tires

Electric Hydraulic Automatic Transmission

Adjustable steering wheel

Warning Light and rear combination lights

Steel structure light protection

Middle Exhaust

Dustproof cover for tilt-cylinder

Quality Control

Metal Plasma cutting

Effectively process metal thickness of 0.3mm or more thermal processing(cutting, welding, brazing, hardening, painting, etc.)

Welding Robots

By robotic positioner external axis servo motor rotation, combined with the robotic system trajectory interpolation, ensuring the smooth running accuracy and machine operation.

Parts warehouse

90% steel structure parts are made by ourselves, which can gurantee our forklift parts' mutual good match and great working performance.

Automatic painting line

It can ensure the cleanliness temperature, illuminations and environmental health and safety standards required by painting, painting improve product quality.

Vechile assmembly line

apply heavy plate chain conveyor transfer mode, the total length of 76 meters. a total of 14 valid stations, the average production time is 12 minutes a day to complete the 50 machines.
